5 Functions of CQ1 Software
5.1 Outline
CQ1 Software is the application software to control both CQ1 Main Unit
and Utility Box and runs sample measurement.
There are two operating modes; CQ mode and HDD mode, and the
window display changes depending on the mode.
(1) CQ Mode
Controls both CQ1 Main Unit and Utility Box and runs sample
measurement. Measurement data are saved in either the HDD of
workstation or network drive.

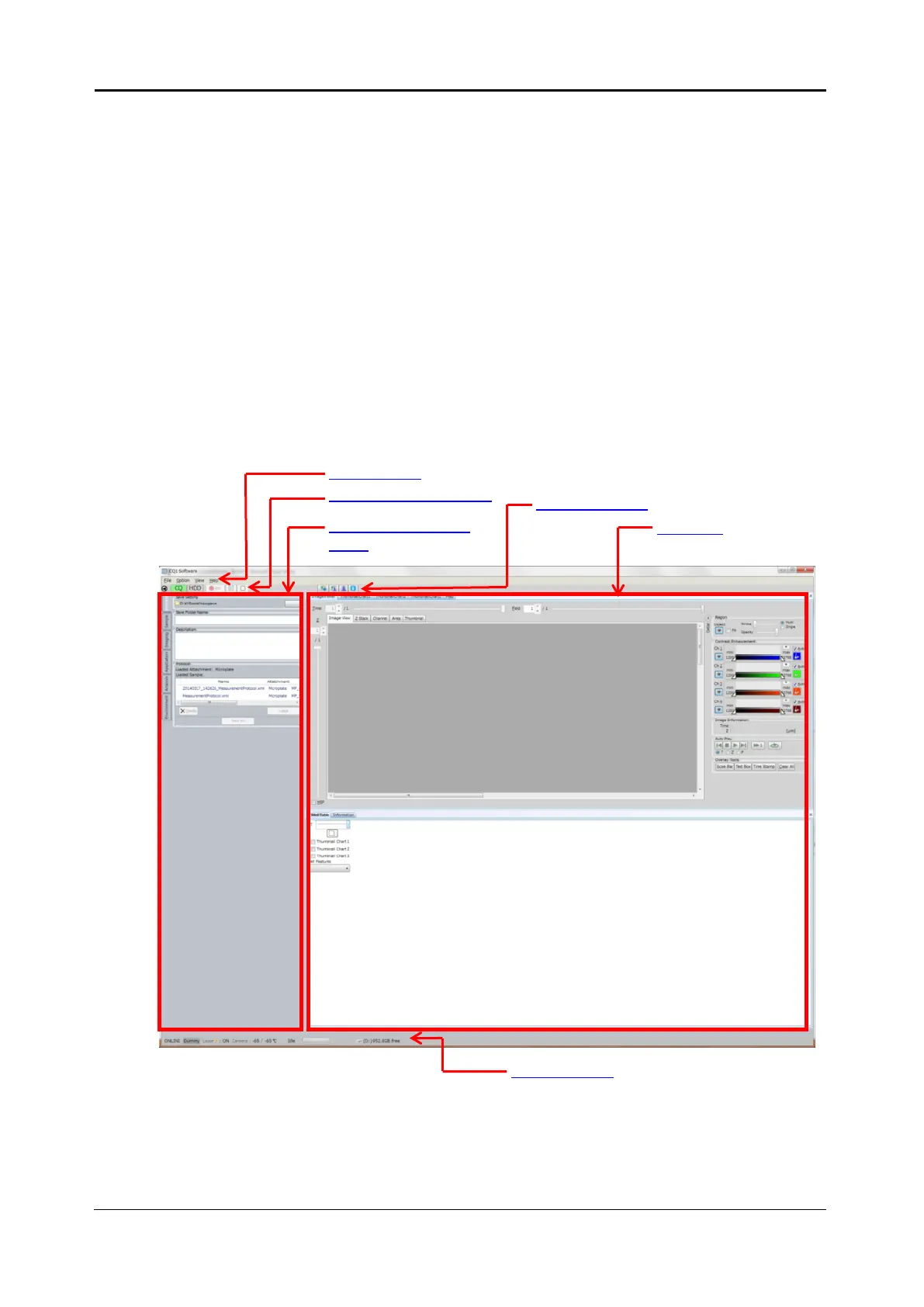

5.6 Viewer
5.4 Control Panel (CQ
Mode)
5.7 Status Panel
5.3 Operation Mode Panel
5.2 Main Menu
5.8 Viewer Layout
