5-8 <5. Functions of CQ1 Software>
IM 80J01A01-01E
5.3 Operation Mode Panel
Operation mode panel screen changes depending on CQ mode and
HDD mode.

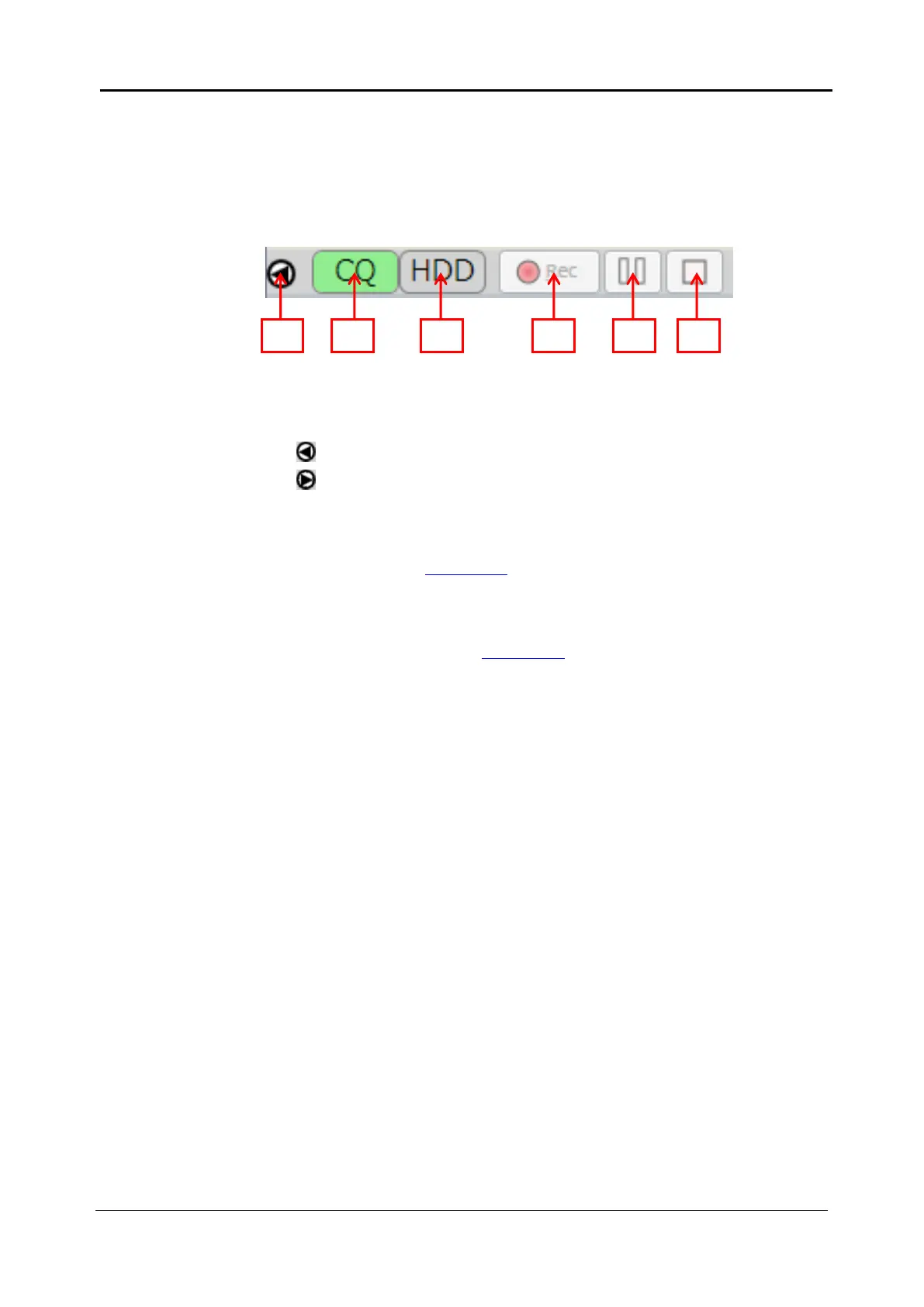

5.3.1 Operation mode panel in CQ mode.
(1) Control Panel Display SHOW/HIDE button
Button to change SHOW/HIDE of control panel display.
Click to HIDE control panel display
Click to SHOW control panel display
(2) CQ Mode Button
Highlighted in the CQ mode but nothing happens by clicking this
button. (Refer to 5.1 Outline (1) CQ Mode)
(3) HDD Mode Button
Click to shift CQ1 Software to HDD mode. Cannot click it during
measurement. (Refer to 5.1 Outline (2) HDD Mode)
(4) Rec Button
Click to start measurement after setting measurement conditions
on the control panel.
(5) Pause Button
Click to pause measurement.
(6) Stop Button
Click to stop measurement.
This button becomes available when Pause button was clicked
during measurement.
To Next Page
