5.9 Channel Setting

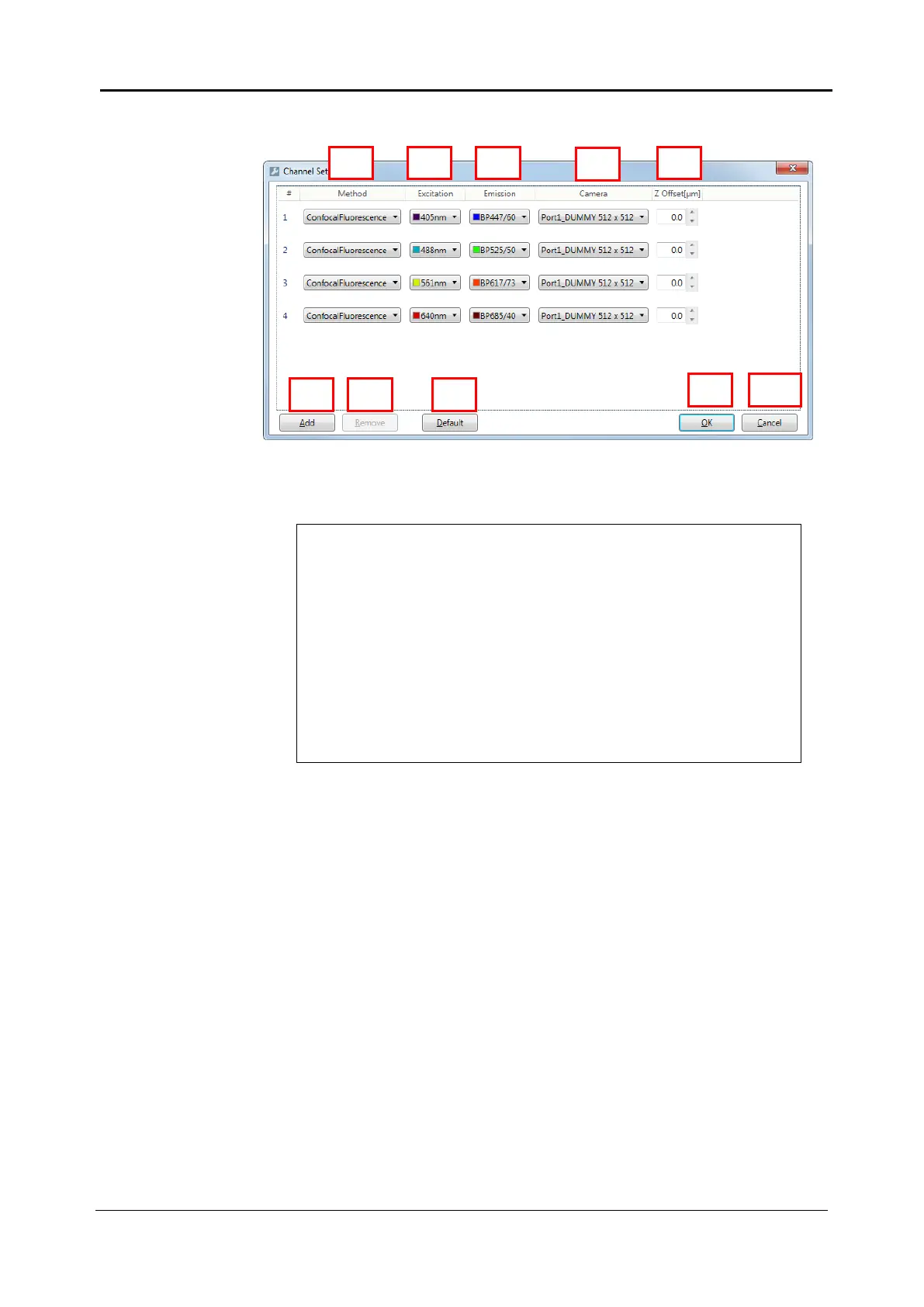

(1) Method
Select imaging method
(2) Excitation
Select light source
(3) Emission
Select emission filter
(4) Camera
Select camera (unselectable in previous version)
(5) Z Offset [µm]
Set Z offset of each channel (default: 0.0 (µm))
(6) Add
Add imaging channel. Up to 10 channels can be set.
This button is invalid if 10 channels are already selected.
(1)
(2)
(3)
(4)
(6)
(7)
(8)
(5)
(9)
(10)
Note
<In case of Transmission Illumination (Phase Contrast) is mounted>
If “PhaseContrast” is selected, phase contrast lens must be selected.
“BrightField” is unselectable.
<In case of Transmission Illumination
(Bright Field/ Phase Contast) is mounted>
If “PhaseContrast” is selected, push the lever of transmission
illumination back and select phase contrast lens.
If “BrightField” is selected, pull the lever of transimission illumination
forward.
<In case of Transmission Illumination is unmounted>
“PhaseContrast” and “BrightField” are unselectable.
