5-122 <5. Functions of CQ1 Software>
IM 80J01A01-01E

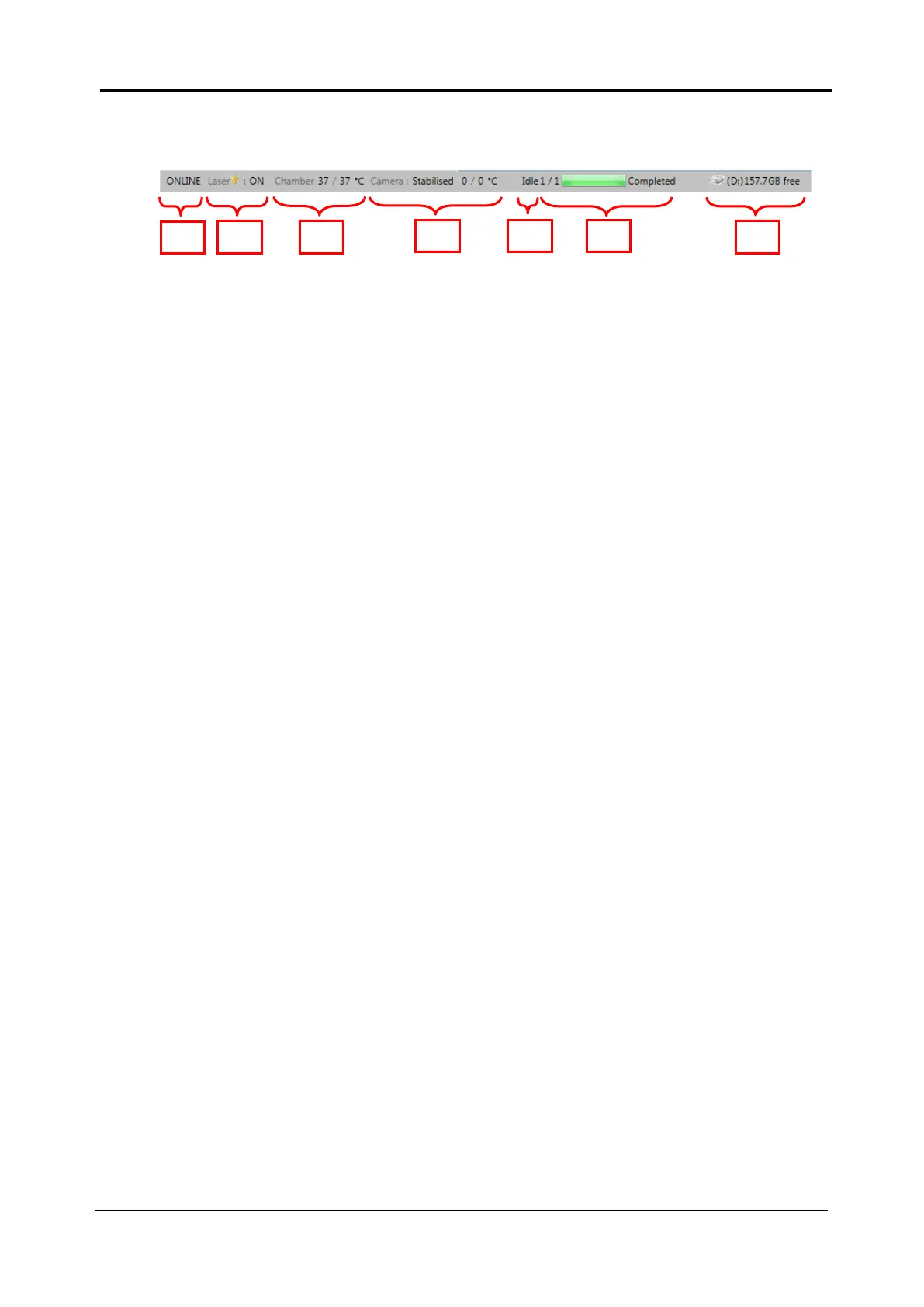

5.7 Status Panel
(1) Communication Status with CQ1 Main Unit
ONLINE Connected with CQ1 Main Unit
OFFLINE Unconnected with CQ1 Main Unit
(2) Laser Status
ON Lasers are ready to use
LOCKED Interlock is working
(3) Chamber Status (Only in Stage Heater mounted model)
Show chamber temperature (Current/ Setting).
Back ground become red if Current > Setting + 1℃.
Back ground become light blue if Current < Setting -1℃
Display of setting temperature become “OFF” if temperature
control is off.
(4) Camera Status
Camera Temperature (Current value/Set value) is shown
(5) Software Status
Idle Idling
Recording Under measurement
Pause Waiting Status in between “Pause” and “Stop” buttons on
Status Mode Panel under CQ Mode.
Preview Preview imaging is ongoing
Analysis Analysis is ongoing
Connecting Connection with CQ1 Main Unit is ongoing
(6) Progress Status
Progress status of measurement is shown by well number
(completed wells/total wells) and by the progress bar.
(7) HDD Disk Space
Show free disk space of HDD
