<3. Name of Each Part/Starting and Shutting Down the Equipment> 3-1
IM 80J01A01-01E
3 Name of Each Part/Starting and Shutting
Down the Equipment
3.1 Name and Function of Each Part

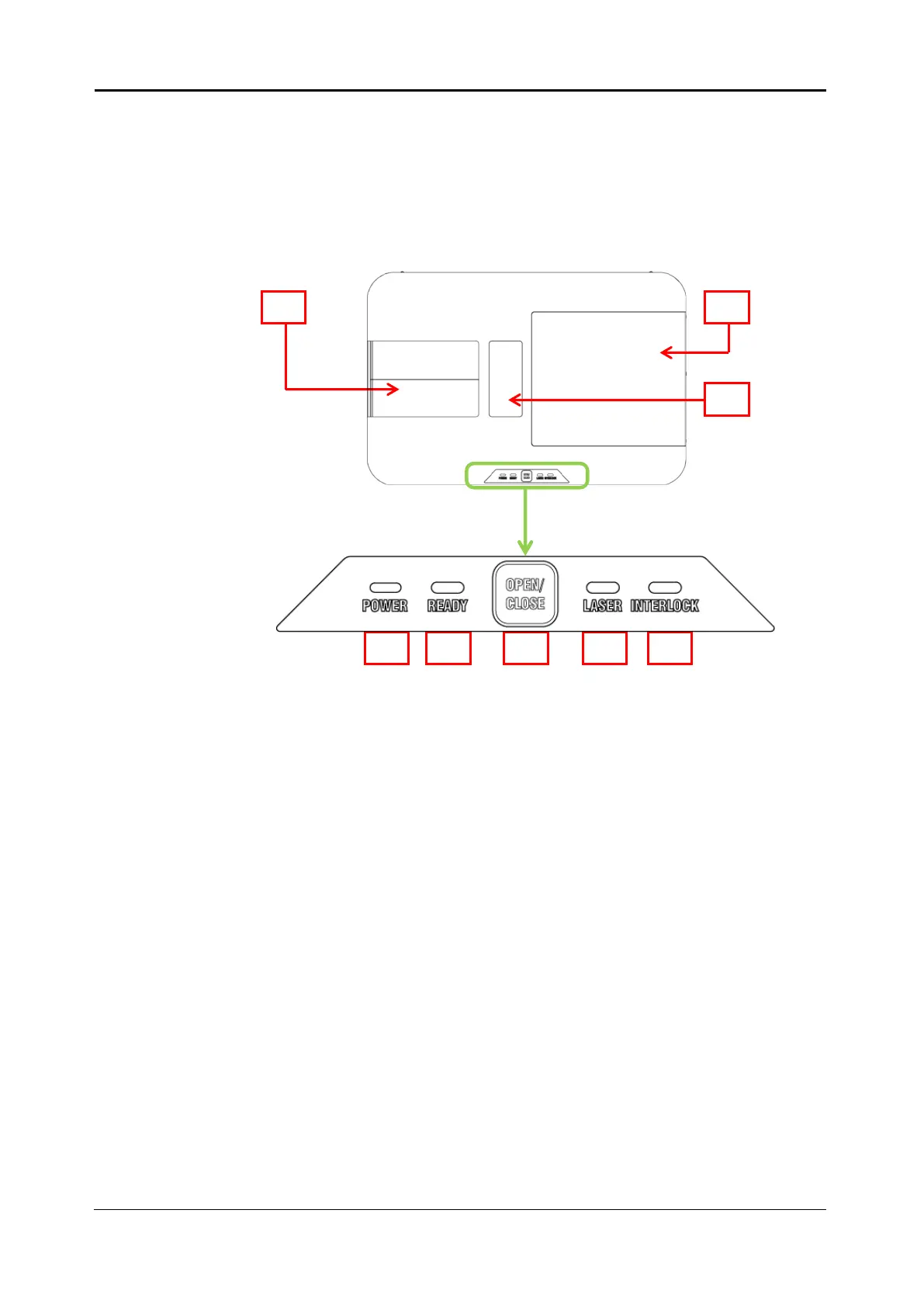

CQ1 Main Unit
(1) Door
Door opens/closes either manually by the door button, or through
the software; [CQ]button[Sample]tab[Sample Loader]
[Open] button[Close]button. Open door and load sample vessels,
such as microplate, dish or slide glass, here.
(2) POWER Lamp
Lights when the power switch on the Utility Box is ON, and lights
out when the power switch is OFF
(3) READY Lamp
Lights when the initialization of this equipment finished and get
ready to use
(4) Door OPEN/CLOSE Button
OPEN/CLOSE the door of the sample loading port
(5) LASER Lamp
Lights when the laser emits, and lights out when laser is OFF
(6) INTERLOCK Lamp
Lights when the door or cover is open. Laser emission stops when
this lamp lights
