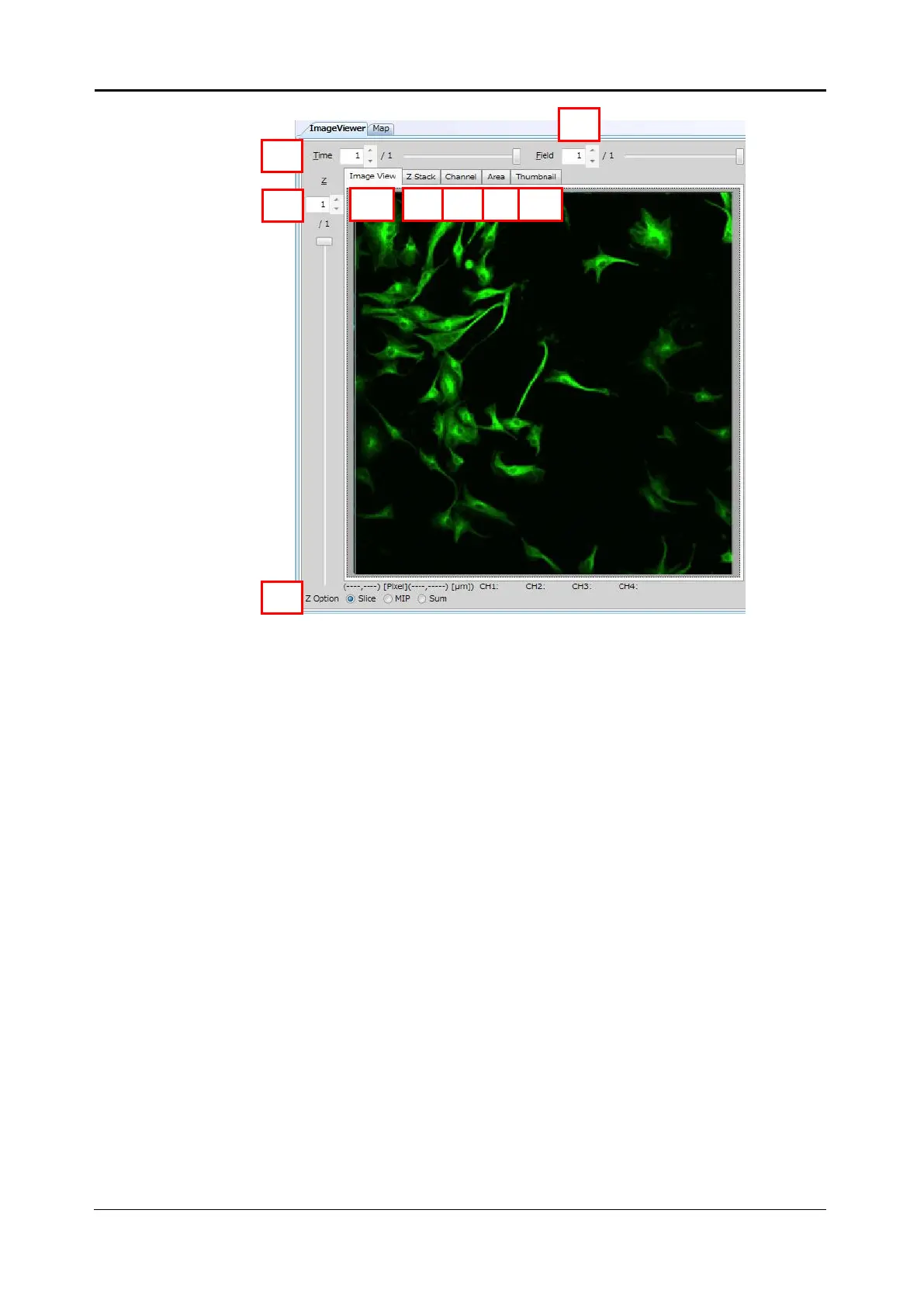

“ImageViewer” has five windows; (1) Image View, (2) Z Stack, (3)
Channel, (4) Area, and (5) Thumbnail. Common functions of 5 windows
are shown in 󳏀󳟻󳏃, below.
󳏀 Time
Set the time point to display.
󳏁 Field/Area
“Image View”, “Z Stack” and “Channel” windows are to set “Field”
to display, and “Area” window is to set “Area” to display.
During measurement, only the ongoing measurement is shown,
thus display settings cannot be changed.
󳏂 Z
Set Z position to display.
During measurement, only the ongoing measurement is shown,
thus display settings cannot be changed.
󳏃 Z Option
Check “MIP” to display MIP image. Check “Sum” to display Sum
image.
