5-96 <5. Functions of CQ1 Software>
IM 80J01A01-01E
(3) Rec Mode

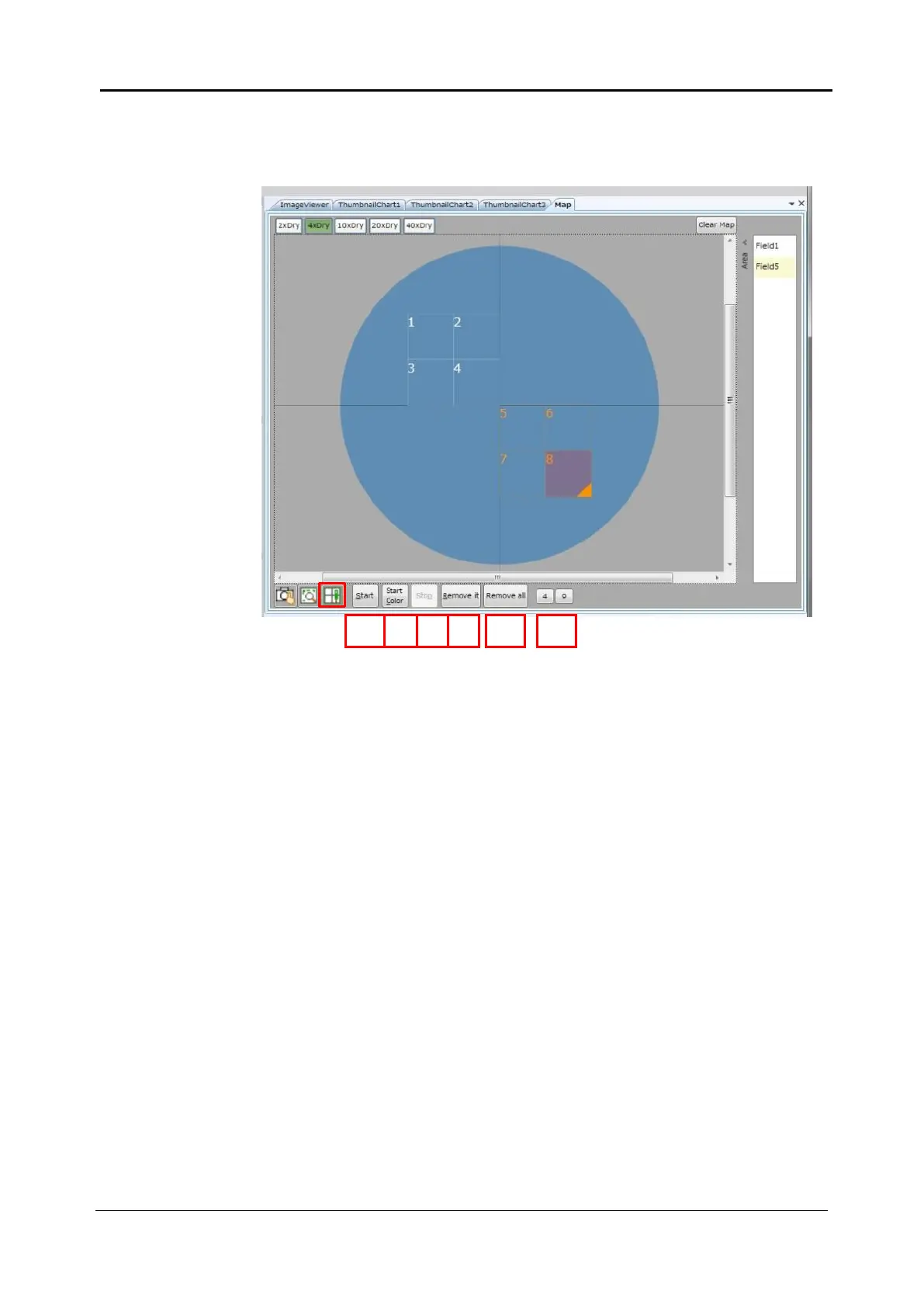

Set Area(s) to be imaged. Clicked Area is selected and highlighted in
orange. Selected Area can be moved by left-drag.
Start
Capture test images of selected Area (highlighted by orage frame)
at one channel, and display on the map.
Start Color
Capture test images of selected Area (highlighted by orage frame)
by multiple channels under the same conditions for the
measurement.
Stop
Stop and above.
Remove it
Remove selected Area. Area numbers will be renewed.
Remove all
Remove all Areas.
Define FOV
Define the FOV (Field of View) at either 4 or 9, automatically.
