<5. Functions of CQ1 Software> 5-115
IM 80J01A01-01E

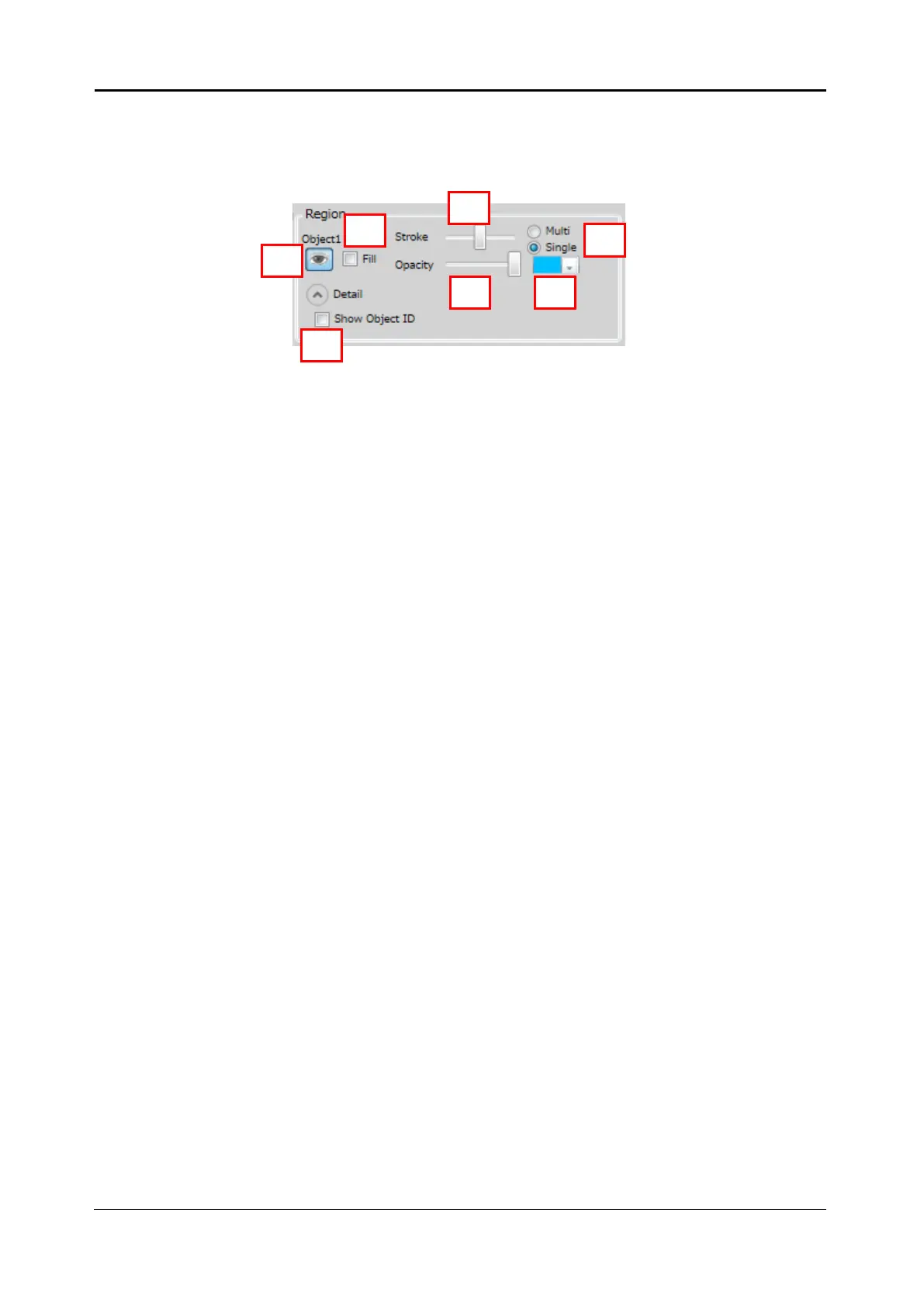

(1) Region
Set display options for image-detected region. This setting is applied to
only “Image View” window and “Thumbnail” window of “Viewer”.
Display detected region
Eye-mark shuts or opens by each click.
When opened, the image-detected region is shown in
“ImageViewer” and not shown when closed.
Fill
All image-detected regions will be colored if checked, and only
their outline will be colored if unchecked.
Stroke
Outline of region gets thicker by moving this slider to the right. The
slider bar is not valid if “Fill” is checked.
Opacity
Opacity of the color of image-detected regions increase by sliding
the bar to the left.
Multi/Single
[Multi] is to color detected regions with multiple colors.
[Single] is to color detected regions with the one selected by
“Color”.
