YOKOGAWA SMARTDAC+ GP10 User Manual

1-25
IM 04L51B01-01EN
Configuring the GX/GP
1
2
3
4
5
App
Index
Scale
Setup Item Selectable Range or Options Default Value
Position GX20/GP20: Off, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10
GX10/GP10: Off, 1, 2, 3, 4, 5, 6
1
Division 4, 5, 6, 7, 8, 9, 10, 11, 12, C10 10
Position
Set the scale display positions when you want to display multiple scales on the trend display.
Set this to Off to not display scales.
Division
Set the number of divisions to make with the main scale marks.
C10: The scale is equally divided into 10 sections by main scale marks, and scale values are
indicated at 0, 30, 50, 70, and 100% positions.

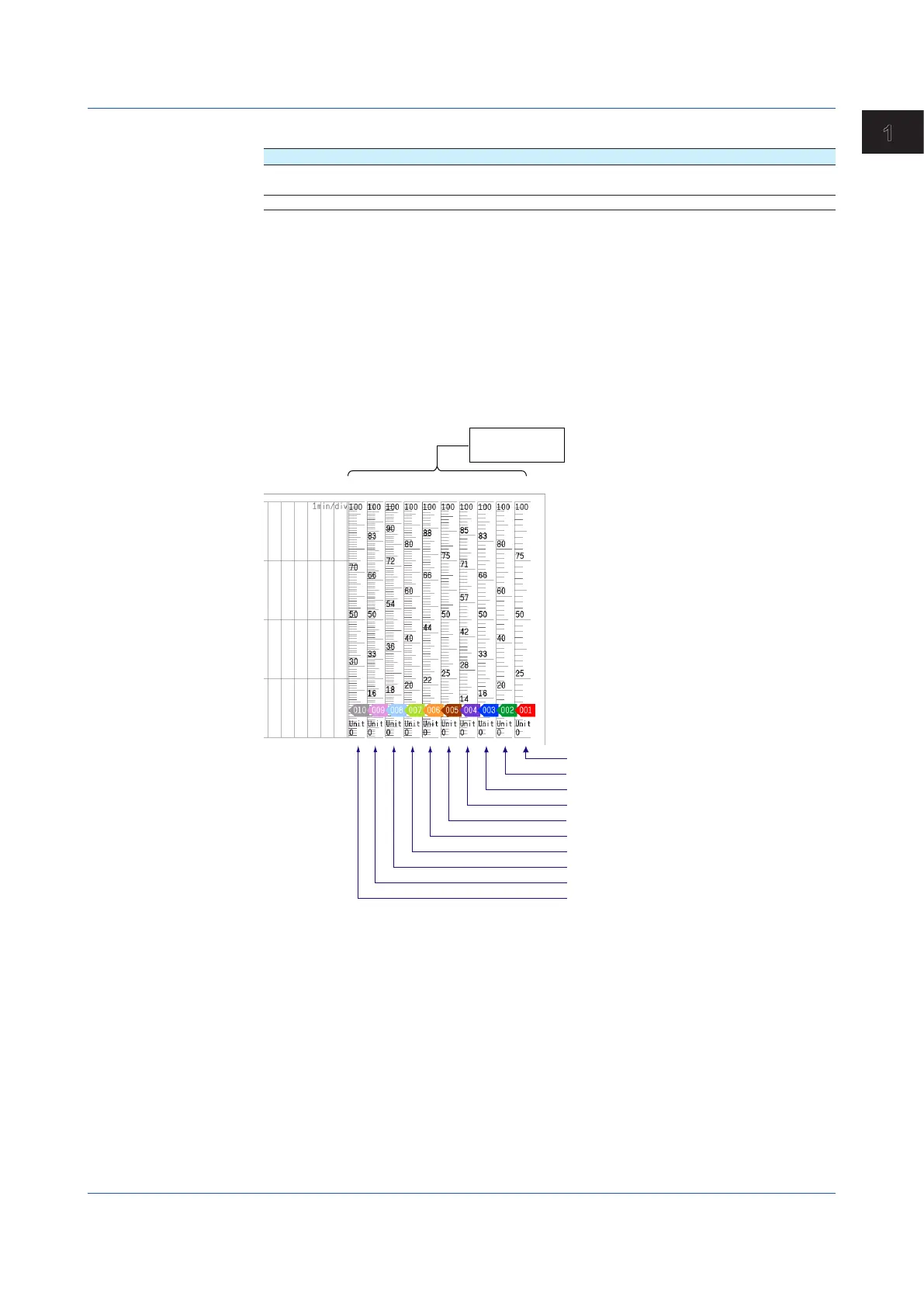

The figure below is an example in which each scale is displayed with the position shifted.
Horizontal Trend Display
Number of scale divisions: 4
Number of scale divisions: 5
Number of scale divisions: 6
Number of scale divisions: 7
Number of scale divisions: 8
Number of scale divisions: 9
Number of scale divisions: 10
Number of scale divisions: 11
Number of scale divisions: 12
Number of scale divisions: C10
Scale position
12345678910
1.2ConfiguringAIChannels(Analog(includingDI)input)channelsandAI(mA)channels
