Detailed Interface Descriptions
Triple Input Dual LAN Encoder (Rev 2E, 2EA and 2EMP)
The function of the encoder is to accept raw video images, encode, encrypt and format them for
transmission.
Enclosure
There is one size of the ZyPerUHD60 Encoder unit enclosure.

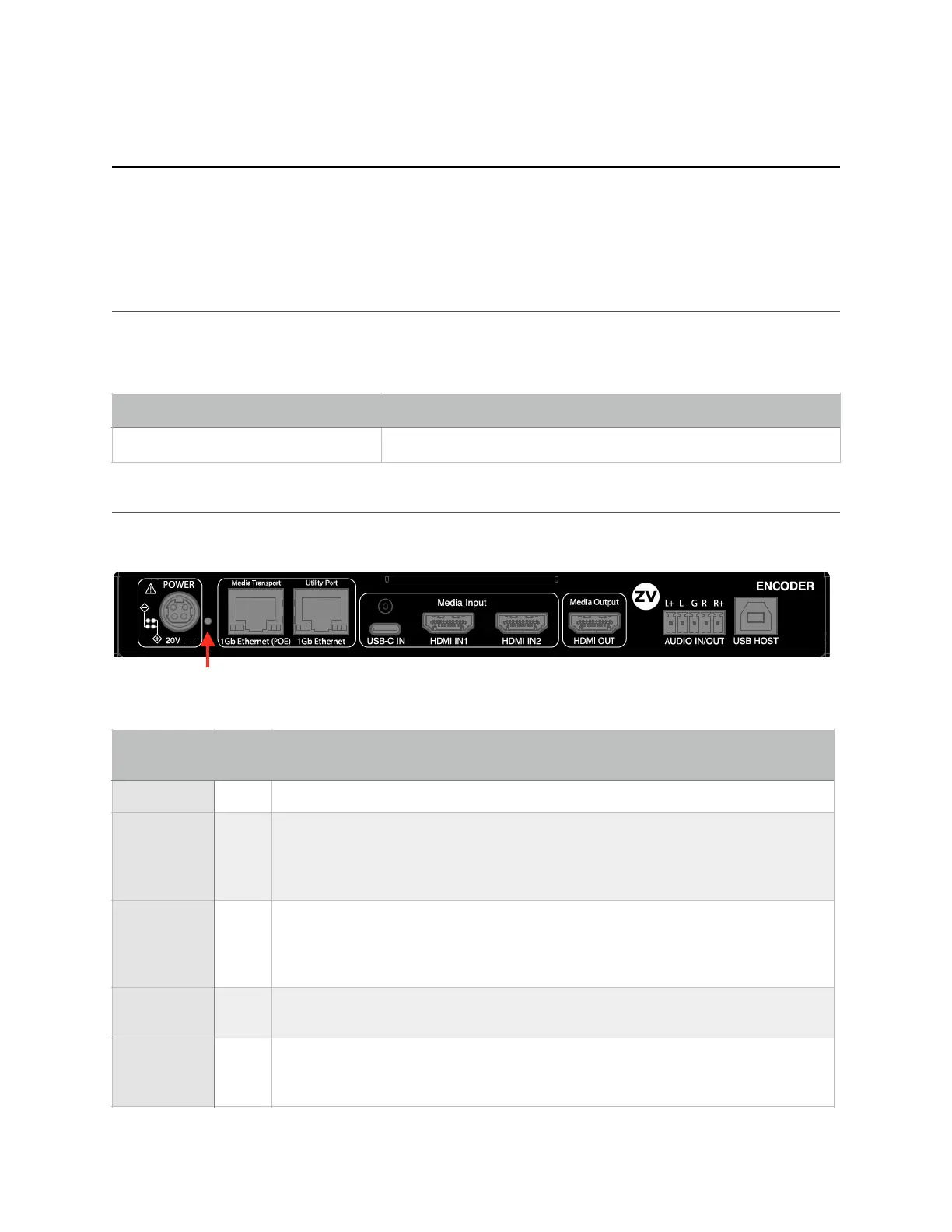

Ports (Encoder Back)
Input Function
Box Size
Dual HDMI and USB-C Video Input
215mm x 120m x 25mm
Port Name
Index
Definition
Power
A
20VDC from supply. (Only required to provide power out USB-C port)
Hardware
Reset
B
Recessed hardware reset pin. Disconnect ZyPerUHD60 from network and
delete unit from within ZyPer Management Platform. Then, fully power unit,
press and hold pin for 10-15 seconds and the unit will reset to defaults.
Reconnect to network and reconfigure in ZMP.
Ethernet
(PoE)
C
1Gb Ethernet over Cat6 (or better) cabling. RJ45 with PoE. Important Note:
If using PoE with ZyPerUHD60 units; the ZyPerUHD60 must have a path to the
ground. This grounding can be accomplished by using a shielded network cable
(F/UTP)
Ethernet
D
1Gb Ethernet over Cat6 (or better) cabling. RJ45. Dedicated port for Dante or
Utility Port. Should not be used to “daisy chain” ZUHD60 units together.
USB-C
E
Full featured USB-C port supporting both Video and USB Host functionality.
Can support device charging only if 20V source connected to unit. Cannot
charge if UHD60 using PoE power only.
Port Name
Rev: 20231115
Page of 10 77
