ZeeVee ZyPerUHD60 - Wallplate Encoder: Back Ports & USB-C Requirements

ZyPerUHD60
Single Input Single LAN Encoder (Rev 0E and 0EA)
The function of the encoder is to accept raw video images, encode, encrypt and format them for
transmission.
Enclosure
There is one size of the ZyPerUHD60 Encoder unit enclosure.

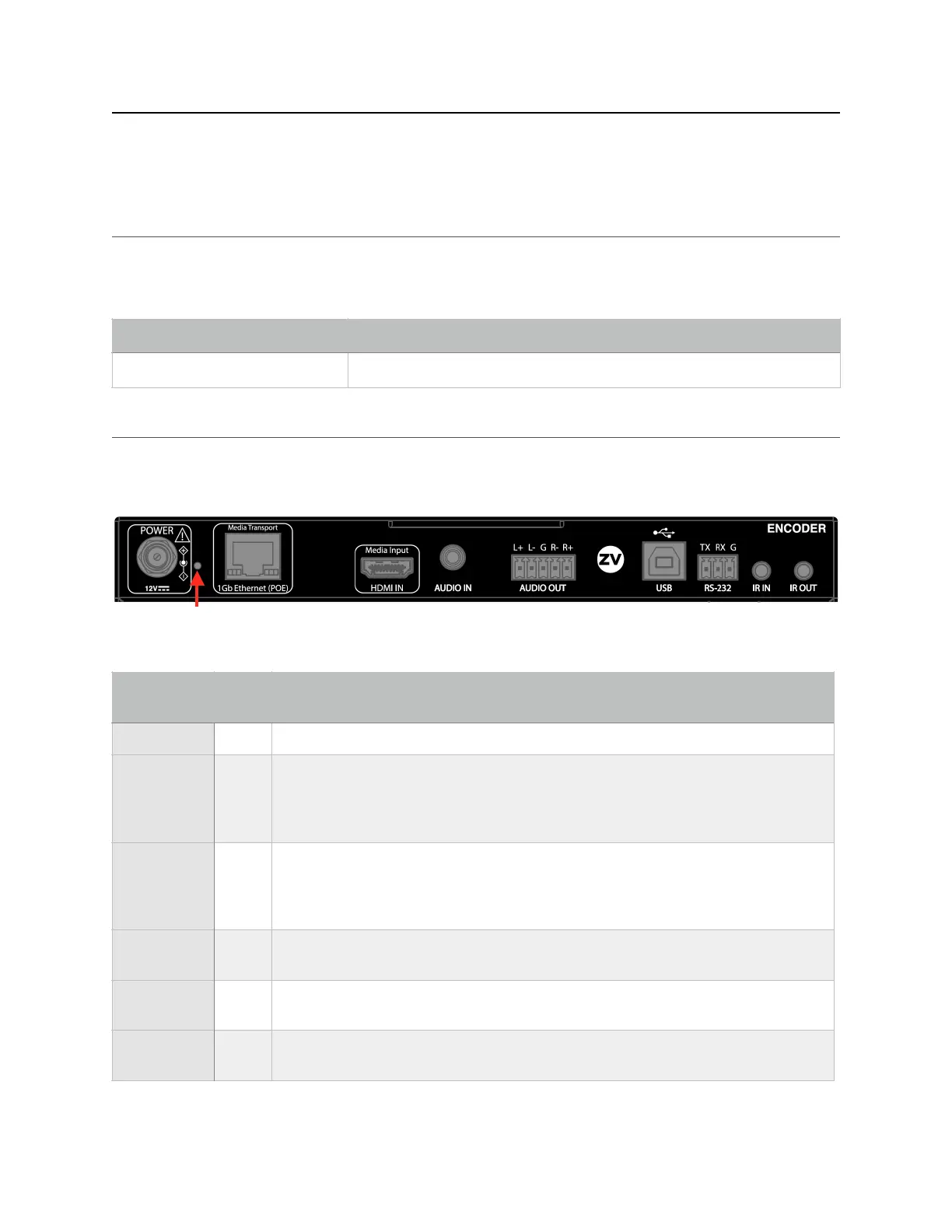

Ports (Encoder Back)
Input Function
Box Size
HDMI Input
215mm x 120m x 25mm
Port Name
Index
Definition
Power
A
12VDC from supply. Center Post is + Ring is -
Hardware
Reset
B
Recessed hardware reset pin. Disconnect ZyPerUHD60 from network and
delete unit from within ZyPer Management Platform. Then, fully power unit,
press and hold pin for 10-15 seconds and the unit will reset to defaults.
Reconnect to network and reconfigure in ZMP.
Ethernet
(PoE)
C
1Gb Ethernet over Cat6 (or better) cabling. RJ45 with PoE. Important Note:
If using PoE with ZyPerUHD60 units; the ZyPerUHD60 must have a path to the
ground. This grounding can be accomplished by using a shielded network cable
(F/UTP)
HDMI Input
D
HDMI 2.0a input port capable of up to 4KP60 4:4:4 with embedded audio and
HDCP 2.3 encryption.
Audio In
E
Audio Input connector. Input/Output of unbalanced stereo audio on 3.5mm
connector.
Audio Out
F
Audio Output connector. Input/Output of balanced stereo audio on Phoenix
connector.
Port Name
Rev: 20231115
Page of 13 77
User Manual
A
G
B
C
D
E
F
H
I
J
