ZeeVee ZyPerUHD60 - Appendix 4; Dual LAN Connection Options (Non-Dante UHD60 units)

ZyPerUHD60
Appendix 4
Dual LAN Connection Options (Non-Dante UHD60 units)

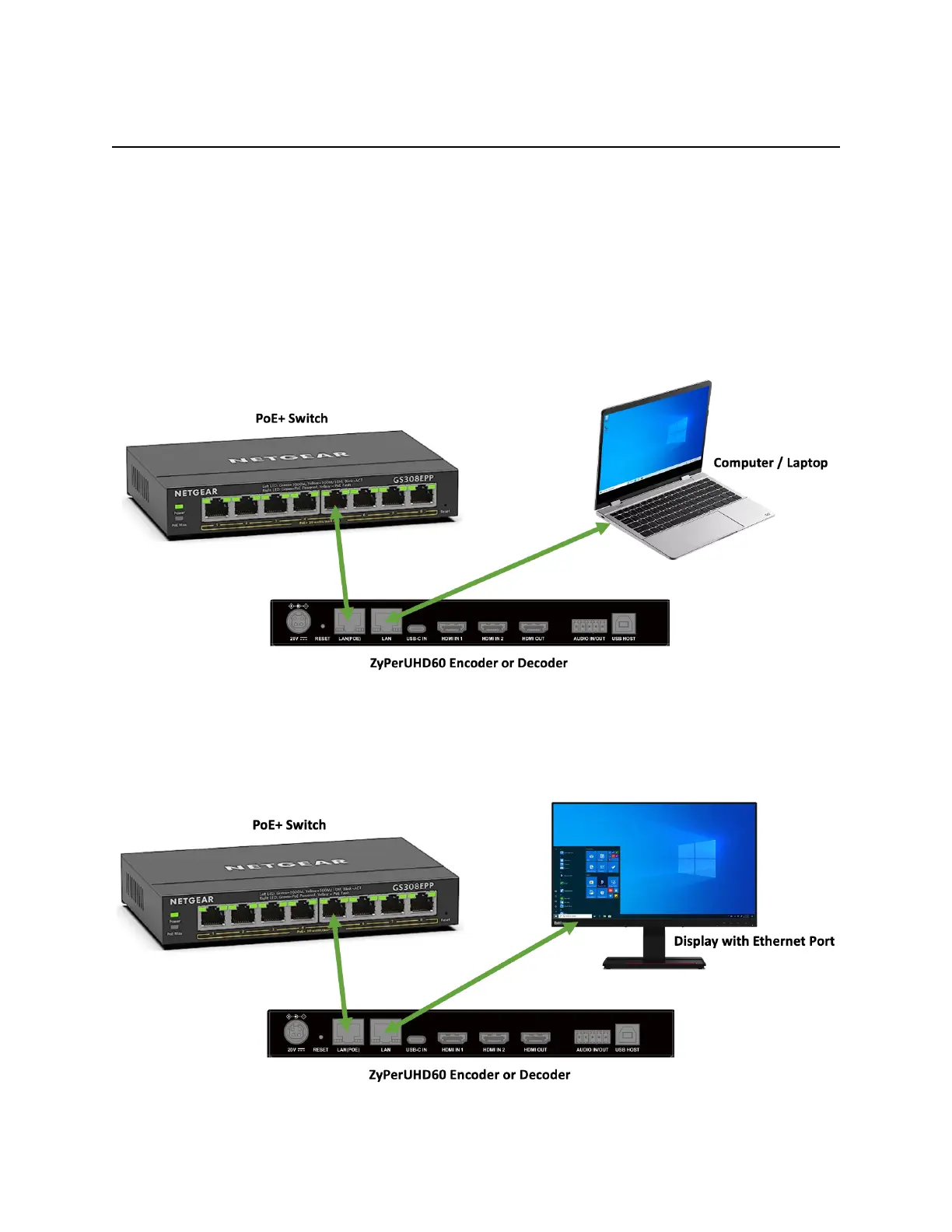

The following are examples of how the secondary or utility LAN port can be used with a
ZyPerUHD60 encoder or decoder. Please note these examples are for the Non-Dante enabled
UHD60 units.
Green connections are valid. Red connections are not valid.
Computer/Laptop
Display/Monitor
Rev: 20231115
Page of 74 77
User Manual
