2.3 Screw in objectives
• Remove dust covers (2-5/4) from the objectives
inserted in the 5-position nosepiece.
• Screw HD objectives (2-5/5) with M 27 × 0.75
thread in the nosepiece (2-5/3) starting with the
lowest magnification factor.
• Brightfield objectives (2-5/1) with W 0.8 ×
1/36" thread can only be inserted into the HD
nosepiece (2-5/3) by using the adapter ring H
"0" M 27 × 0.75 on W 0.8 × 1/36" (2-5/2).
☞
The dust caps should remain on those
nosepiece eyes which are not required.
Section 1.4 contains an overview of
usable objectives.
2.4 Attachment or change of binocular
tubes and intermediate tubes
2.4.1 Attachment of binocular tube
• Use SW 3 ball-headed screwdriver (2-6/4) to
loosen hexagonal screw (2-6/3) and remove
binocular tube (2-6/1) in upward direction.
• Place dust cap on the dovetail of the binocular
tube to protect the tube lens.
• Remove dust cover from the required binocular
tube.
• Insert dovetail of binocular tube in the port on
the stand (2-6/2), align the tube with the
reflected-light illuminator and tighten
hexagonal screw (2-6/3).
☞
An adapter plate is required to attach intermediate tubes and/or binocular phototubes of the
Axioplan 2 line (see section 1.9).
An overview of attachable intermediate tubes and binocular tubes is given in section 1.9.

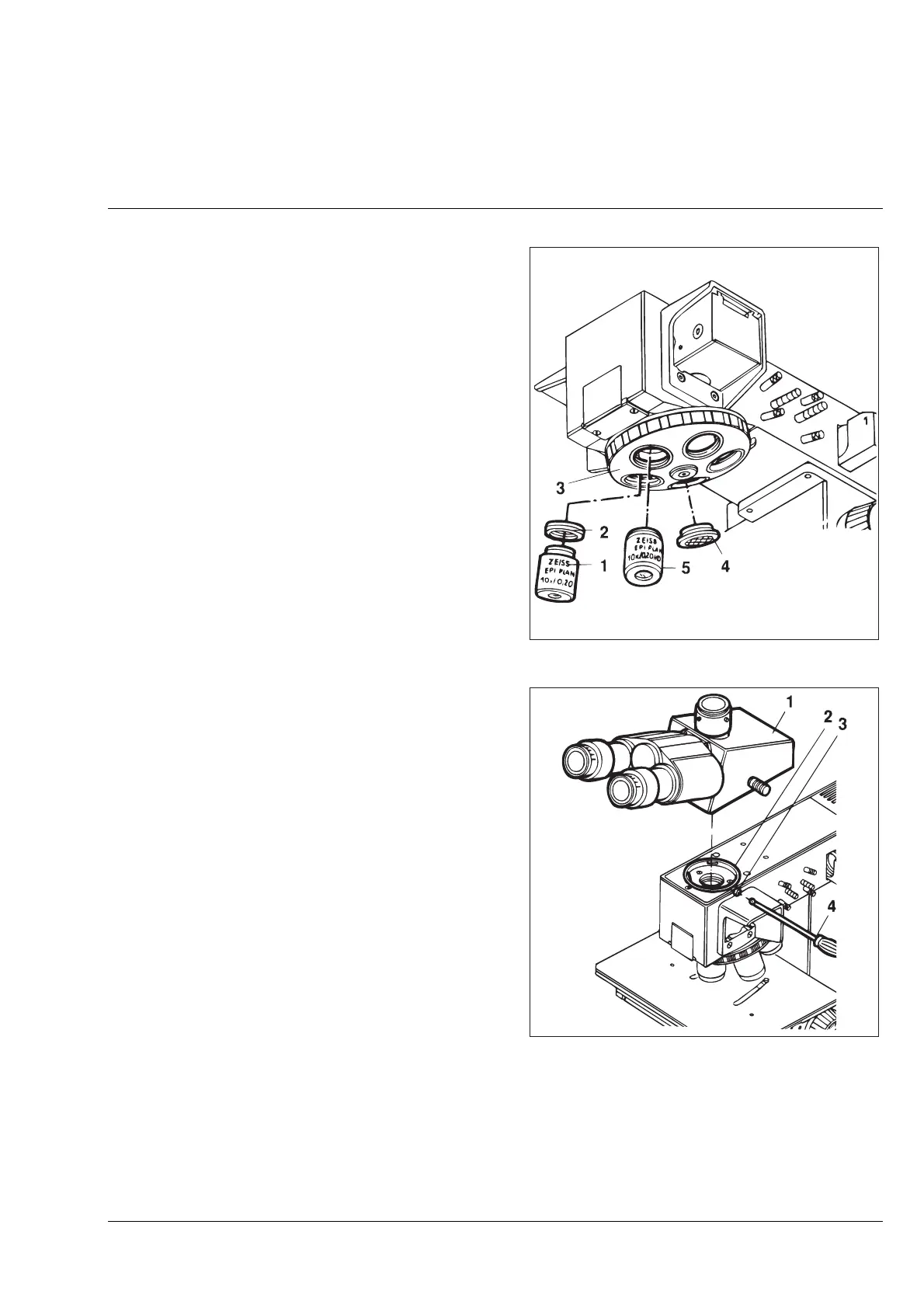

Fig. 2-5 Screw in objectives
Fig. 2-6 Attachment of binocular tube
