2.7 Attachment of condenser
• Remove condenser, e.g. swing-in version 0.9 Z Pol, from the packaging.
• Carefully move microscope stage and stage carrier D to the uppermost stop position via the coarse
drive (2-13/1). Caution: risk of collision with objectives !
• Lower the condenser holder via the condenser drive (2-13/2) and loosen the clamping screw (2-13/4).
Fold down condenser front lens via the lever (2-13/5) and push condenser into the guiding fork from
the front.
☞
The notch (2-13/3) in the condenser carrier is used for condenser orientation. The swing-in
condenser 0.9 Z Pol must be oriented in such a way that the lever (2-13/5) points horizontally
to the left.

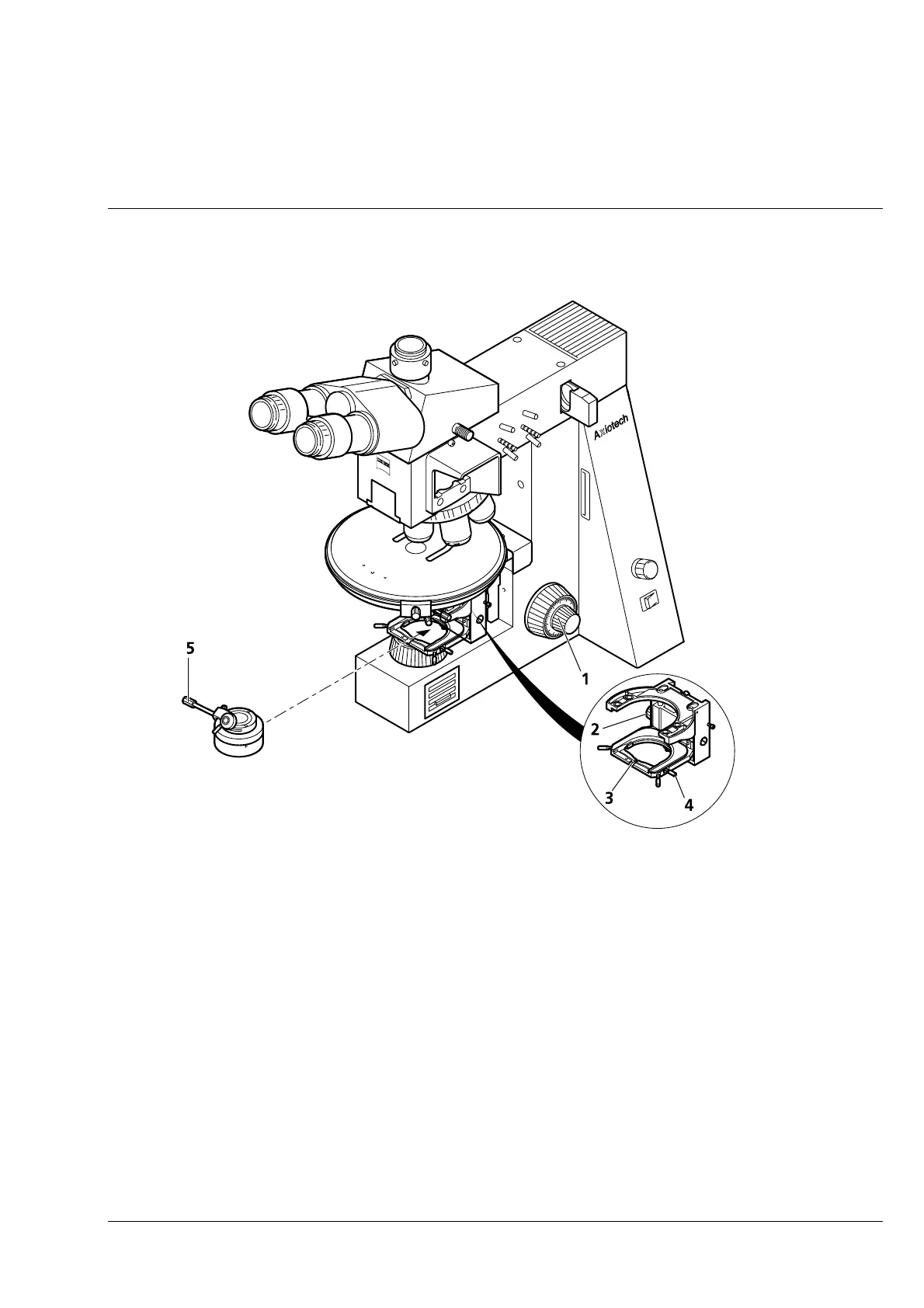

Fig. 2-13 Attachment of condenser
