Carl Zeiss Axiotech and Axiotech
vario
2-14 B 40-020 e 06/99
2.8.3
Axiotech
vario
100 with stage carrier
H = 140 mm
☞
The upper side (2-17/2) of the stage
plate H = 140 mm has various drilled
holes (modular dimensions) which
allow not only the use of standard
microscope stages (as included in the
configurations) with the Axiotech
vario
,
but also stages from Märzhäuser and
Mitutoyo.
• Screw microscope stage (2-17/1) on the upper
part of the stage carrier (2-17/2) through the
four drilled holes (2-17/3) in such a way that
the drive controls of the stage are not blocked
at the side of the stage carrier.
• Screw stage carrier with premounted
microscope stage on the base plate (2-17/5)
with four hexagonal screws (2-17/4). Make sure
that the hole in the stage carrier is symmetrical
to the mounting hole (2-17/6).
☞
For two-handed operation of the
Axiotech
vario
, the microscope stage
should be mounted in such a way that
the left hand can reach the stage drive
controls and the right hand the
focusing drive (2-17/7).
Fig. 2-18 shows the MT 50 x 50 specimen stage
with attached 5 µm (2×) micrometer.

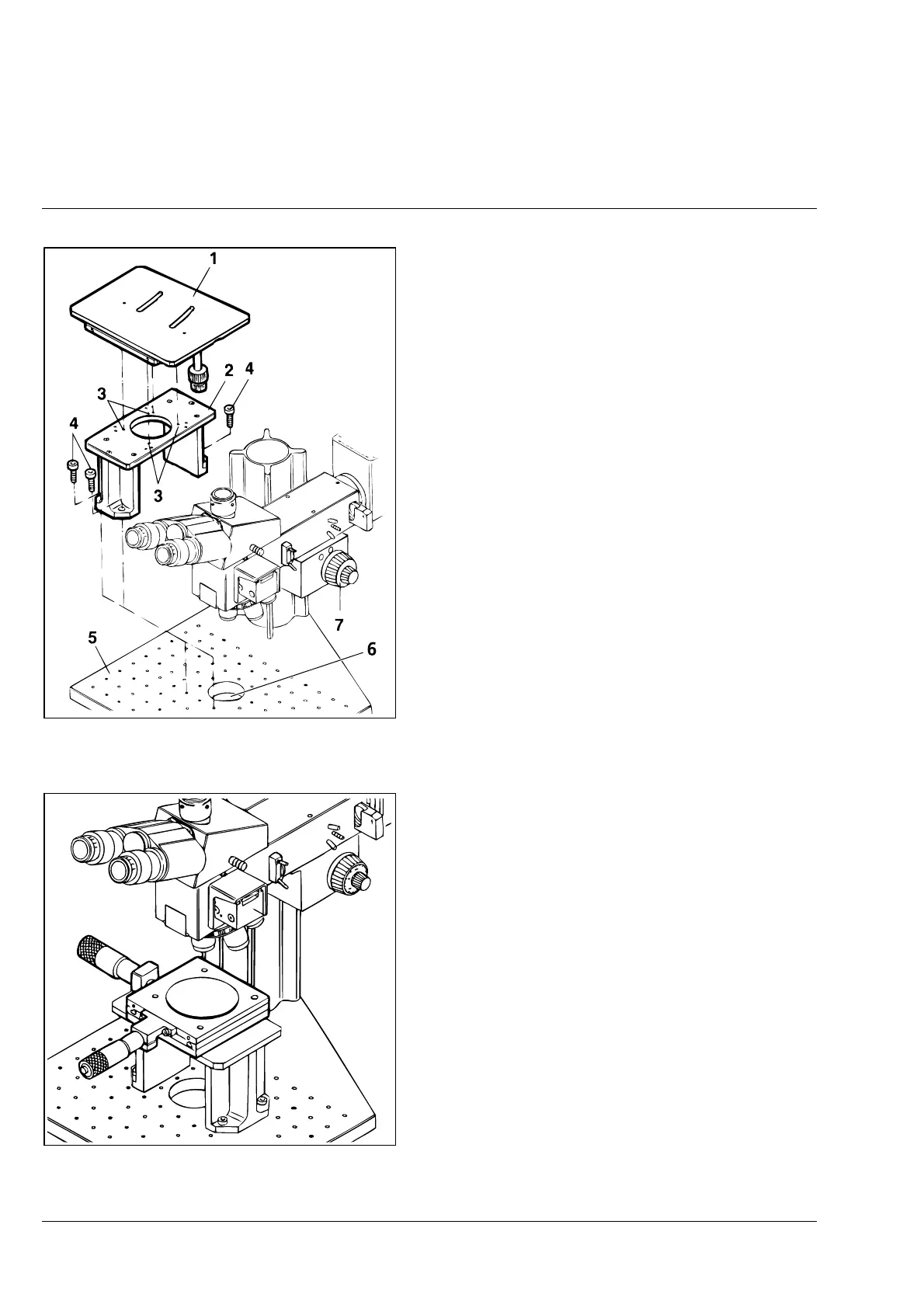

Fig. 2-17 Attachment/change of microscope
stage (stage carrier H = 140 mm)
Fig. 2-18 Specimen stage MT 50 x 50
