Axiotech and Axiotech
vario
Carl Zeiss
B 40-020 e 06/99 2-27
2.13
Transmitted-light illumination equipment
2.13.1
Change of 6 V 30 W halogen lamp
in the stand base (Axiotech 30 and
Axiotech 100)
In the Axiotech 30 instrument configuration for
brightfield and darkfield in reflected light, the
microscope stand has been prepared for
transmitted-light applications in such a way that
the 6 V 30 W halogen lamp can be easily attached.
The following procedure is required:
• Switch off the microscope via the On/Off switch
(2-32/1) and disconnect the line cable from the
line.
• Allow halogen lamp (2-32/4) to cool down for
approx. 15 mins. immediately after use.
• Hold ventilation grid (2-32/2) on the handle,
slightly press it upwards and then pull it off in
outward direction.
• Press holding elements (2-32/3) of lamp insert
together and pull out lamp insert.
• Hold lamp insert on the sides and pull off
halogen lamp from the guiding rails.
• Remove new 6 V 30 W halogen lamp from packaging by holding it on the protection sleeve and push
it on the guiding rails. Make sure that the lamp carrier plate exactly fits the mounting and fixation
pins!
• Remove protection sleeve from the halogen lamp.
• Attach lamp insert again by slightly pressing the holding elements together.
• Insert ventilation grid from below and press it tight at the base.
☞
Always use the protection sleeve to hold the bulb of the 6 V 30 W halogen lamp and never
touch the bulb with your bare hands. If required, clean the bulb with pure alcohol before
switching it on for the first time to prevent dirt from burning in.

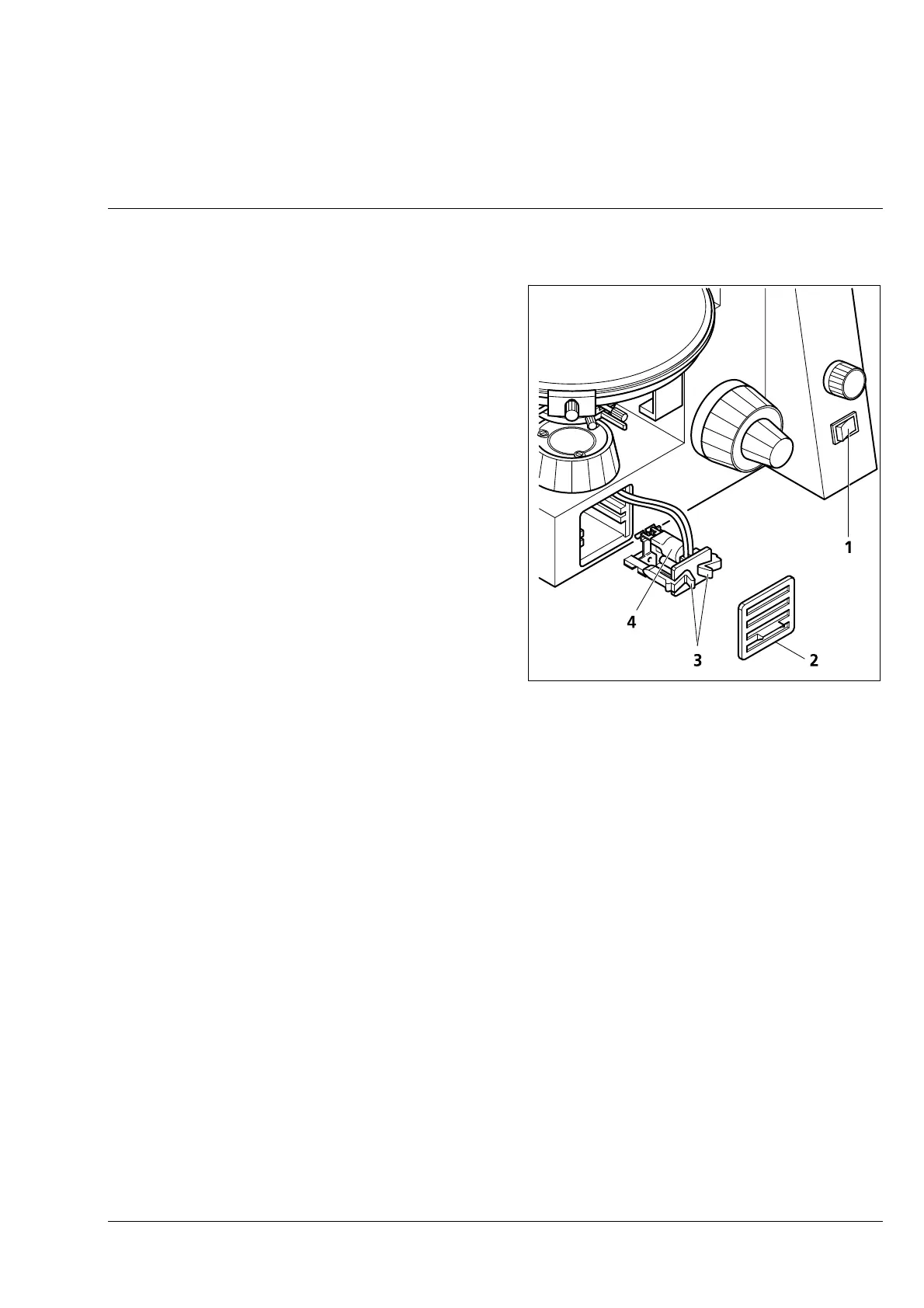

Fig. 2-32 Change of 6 V 30 W halogen lamp
(Axiotech 30 and Axiotech 100)
