Zeiss Axiotech - Operation and Function Controls of the Axiotech 30; Operation and Function Controls of the Axiotech

Axiotech and Axiotech
vario
Carl Zeiss
B 40-020 e 06/99 3-5
3.1.3 Operation and function controls of the Axiotech
vario
100

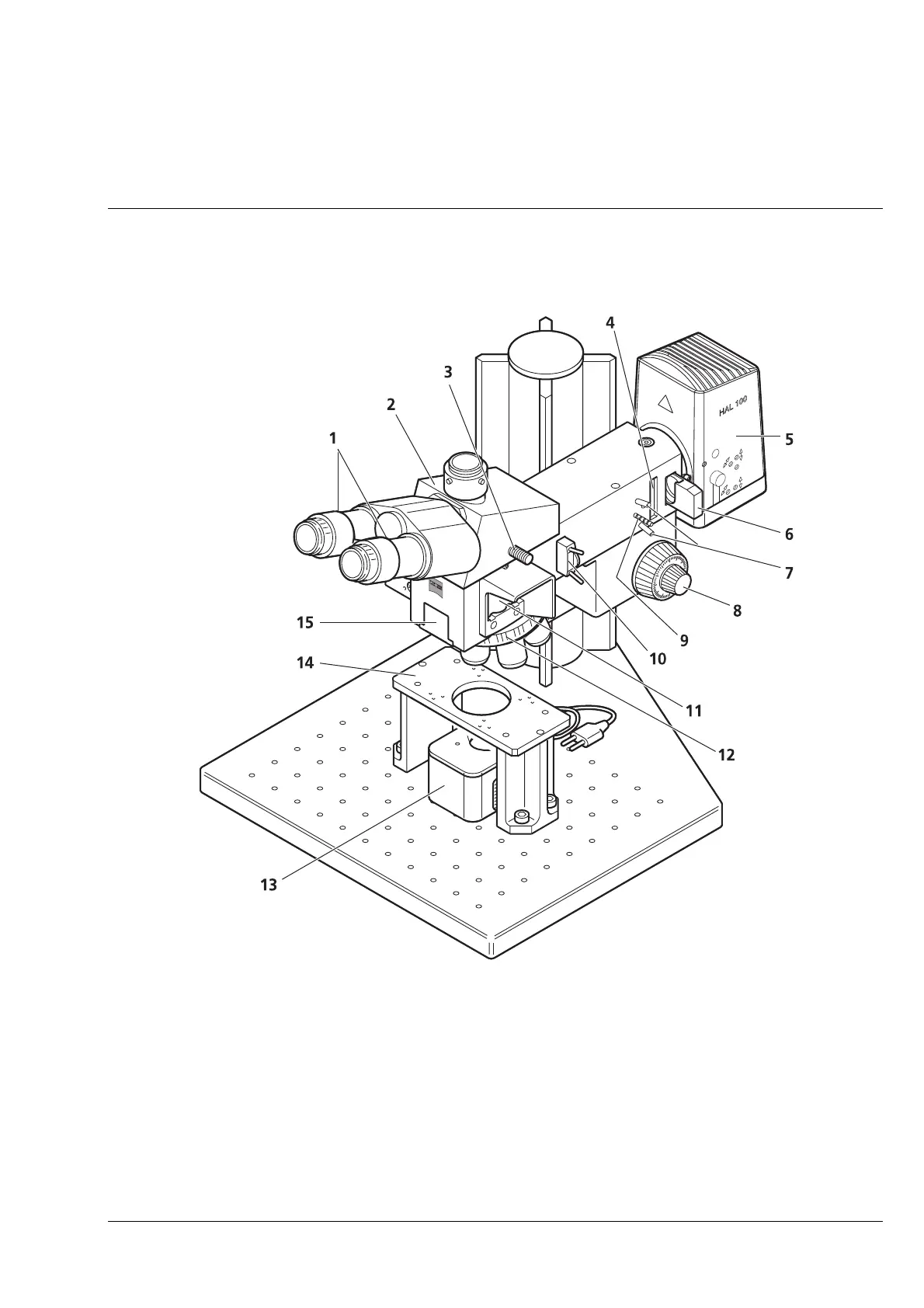

Fig. 3-3 Operation and function controls of the Axiotech
vario
100
1 Eyepieces 9 Pushrod for reflected-light aperture diaphragm
2 Binocular phototube 20° 10 Luminous-field diaphragm slider with
3 Pushrod (to change the beam path)) centering screws and knurled wheel for reflected light
4 Compartment for 3D illumination shutter 11 Compartment for reflector slider
5 Reflected-light illumination equipment 12 Objective nosepiece
6 Reflected-light filter slider 13 Transmitted-light illumination equipment
7 Centering screws for reflected-light aperture diaphragm 14 Stage carrier H
8 Coaxial coarse and fine drive 15 Compartment for DIC slider
