Carl Zeiss Axiotech and Axiotech
vario
3-6 B 40-020 e 06/99
3.2
Switch on the microscope
3.2.1
Switch on the Axiotech 30 and
Axiotech 100
• Switch on the Axiotech 30/100 via the On/Off
switch (3-4/4):
− the green pilot lamp in the switch must light
up and
− depending on the position of the illuminance
control (3-4/3), at least one LED of the lamp
voltage display (3-4/2) must light up.
• Set required illuminance via the illuminance
control ( 3-4/3). If required, insert attenuation
filter in the filter slider (3-4/1) (also see section
2.9).
☞
When the On/Off switch is switched off, the 0 sign is visible.
The regulation range of the LED lamp voltage display lies between 1.5 and 6 V (in the end stop
position, the correct color temperature of 3200 K for color photography is reached).
3.2.2
Switch on the Axiotech
vario
100
(separate SNT 12 V DC, 100 W
power unit, stabilized)
• Switch on the separate SNT 12V DC 100 W
power unit ( 3-5/1) via the On/Off switch
(3-5/3).
− The green pilot lamp in the switch must light
up.
• Set illuminance to the required level via
potentiometer (3-5/2).
− At approx. 11.5 V, the color temperature of
approx. 3200 K for color photography is
reached.

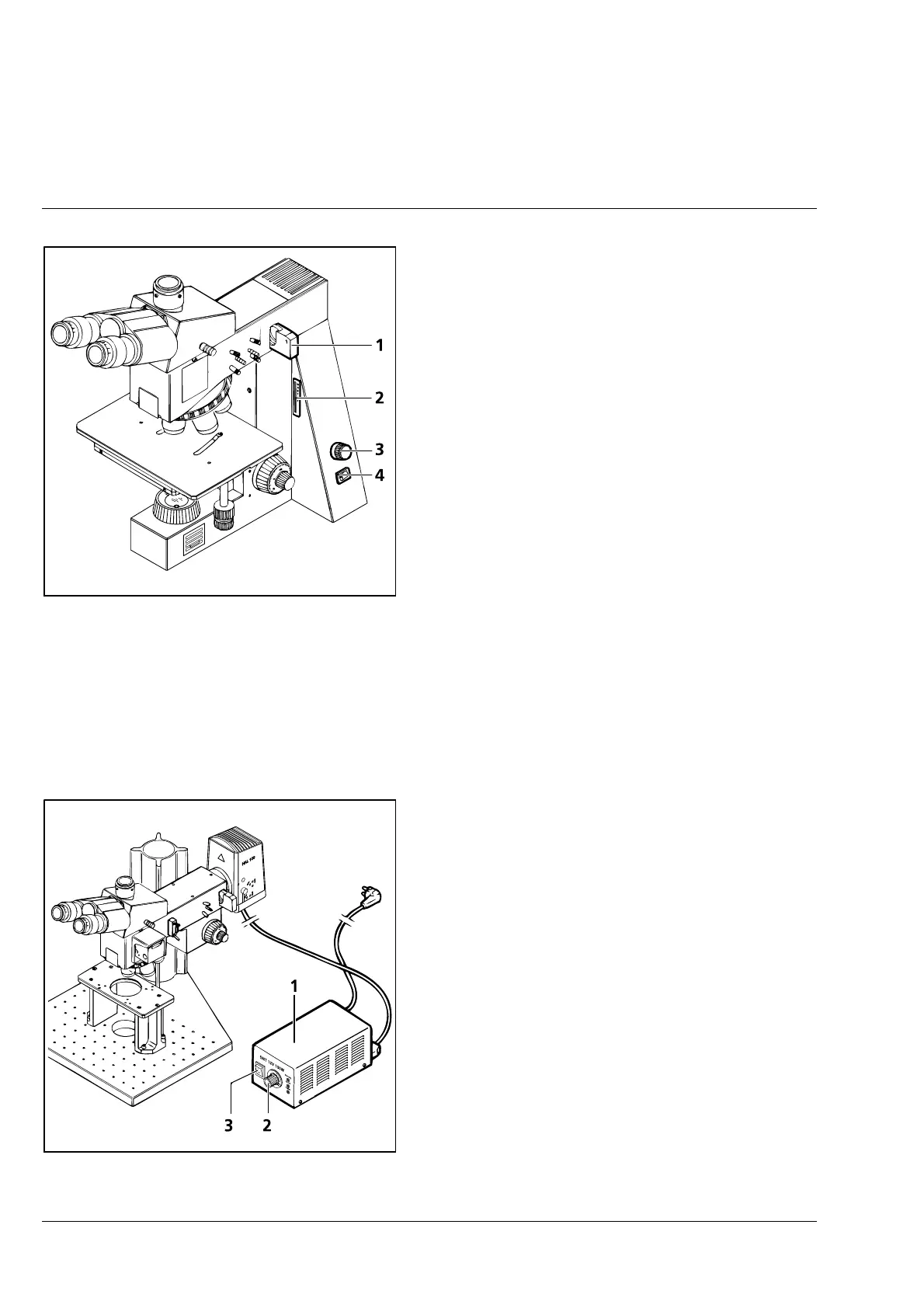

Fig. 3-4 Switch on the Axiotech 30 and
Axiotech 100
Fig. 3-5 Switch on the Axiotech
vario
100 HD
