Zeiss Axiotech - Axiotech 30 and Axiotech 100 with Stage Carrier D and Adapter

Axiotech and Axiotech
vario
Carl Zeiss
B 40-020 e 06/99 2-13
2.8.2 Axiotech 30 and Axiotech 100 with
stage carrier D and adapter
• Screw adapter for stage carrier D (2-15/1) to
the Axiotech microscope stand with the semi-
round recess showing upwards. For this
purpose, tighten both hexagonal screws
(2-15/3) and washers (2-15/2) using the SW3
ball-headed screwdriver (2-15/4).
• If not already done, complete transmitted light-
compatible microscope stages with stage carrier
D: place microscope stage (2-16/4) on its
underside and screw on stage carrier D (2-16/1)
with four hexagonal screws (2-16/3) using the
SW 3 ball-headed screwdriver (2-16/2).
• Attach complete unit consisting of transmitted
light-compatible microscope stage and stage
carrier D to the adapter for stage carrier D in a
slightly angled position and tighten fixation
screw (2-16/5).
• Fix required specimen holder on the microscope
stage using two knurled screws.

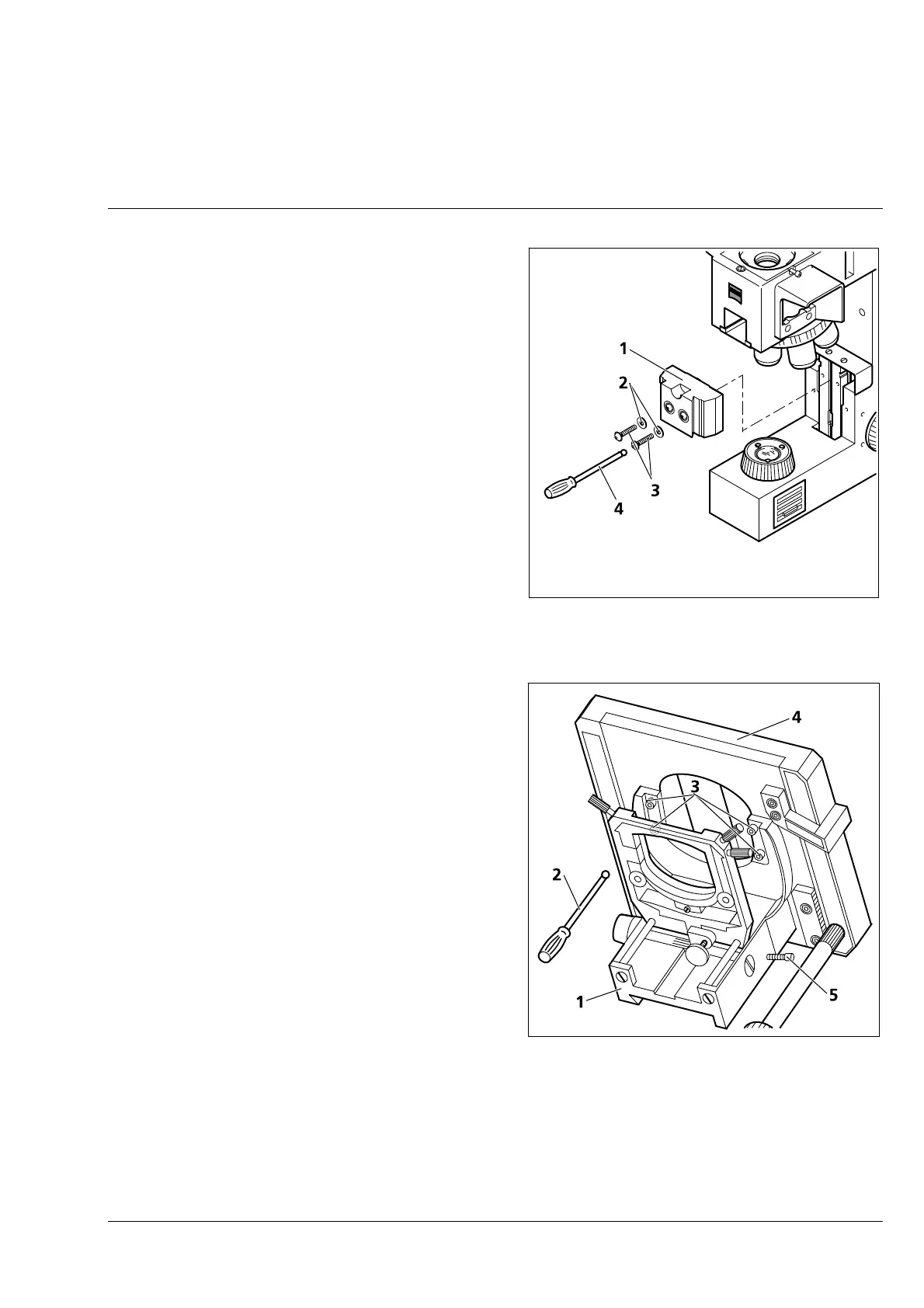

Fig. 2-15 Attachment of adapter for stage
carrier D
Fig. 2-16 Attachment/change of microscope
stage (configuration with stage
carrier D)
