2.11 Connection to the line and switching the instruments on and off
2.11.1 Connection of Axiotech 30
The Axiotech microscope features an integrated
wide-range power unit, i.e. it can be used with line
voltages ranging from 100 to 240 V AC,
50 ... 60 Hz. The wide-range power unit sets itself
automatically to the relevant line voltage.
• Connect line cable with coupling device
(2-24/1) to the instrument socket (2-24/2) and
make connection to the line via line connector
(2-24/3).
• Switch the 6 V 30 W reflected-light halogen
lamp on and off again via the on/off switch
(2-25/4). In the ON position, the green line
control lamp in the switch and at least one LED
on the lamp voltage display (2-25/2) must light
up if the 6 V 30 W lamp is switched on.
• Set the required image brightness via the
reflected-light illuminance control (2-25/3) or
use filter slider (2-25/1) with attenuation filter

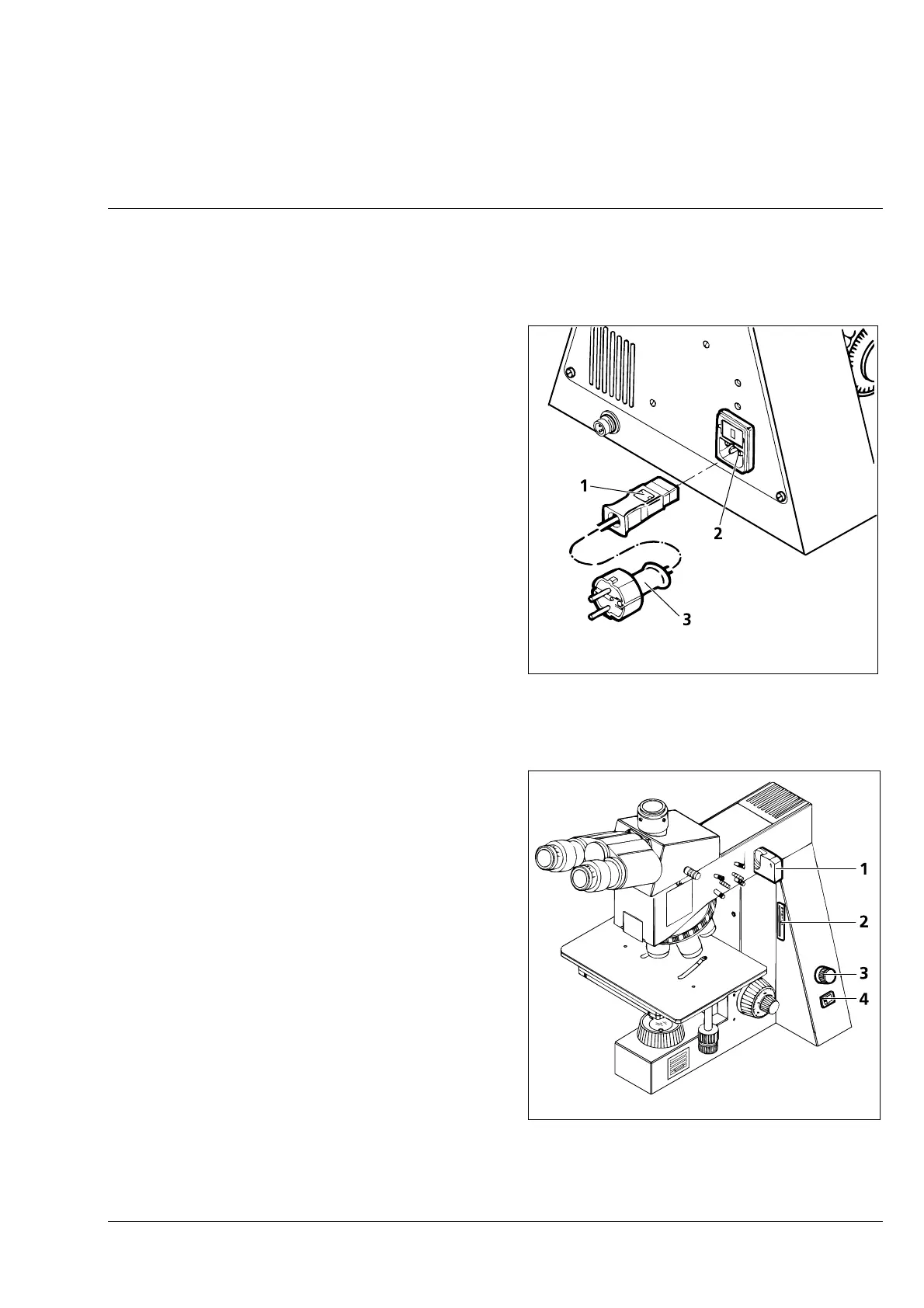

Fig. 2-24 Connecting the Axiotech 30 to the
line
Fig. 2-25 Switching on the Axiotech 30
