Axiotech and Axiotech
vario
Carl Zeiss
B 40-020 e 06/99 3-25
• Attach selected polarizer to the underside of the stage carrier D with screws (3-23/5 and 8 or 10) and
stop screw (3-23/11).
• Place specimen to be examined on the microscope stage and fix it.
• Push reflector slider HD DIC (3-22/3) into the reflected-light illuminator until the DIC position is active
(DIC mark visible on the reflector slider). The analyzer is integrated in the reflector slider and must be
switched in orientation position.
•
Swing polarizer D (3-23/13) into the beam path using the lower lever ( 3-23/15) and move the upper
lever (3-23/14) into the zero stop position. The upper lever (3-23/14) will then point to the front.
☞
No filter should be inserted in the beam path for intensity reasons (remove filter slider (3-22/2)).
• Set maximum darkness position in the field of view (crossed polars) by slightly turning polarizer D via
lever (3-23/14).

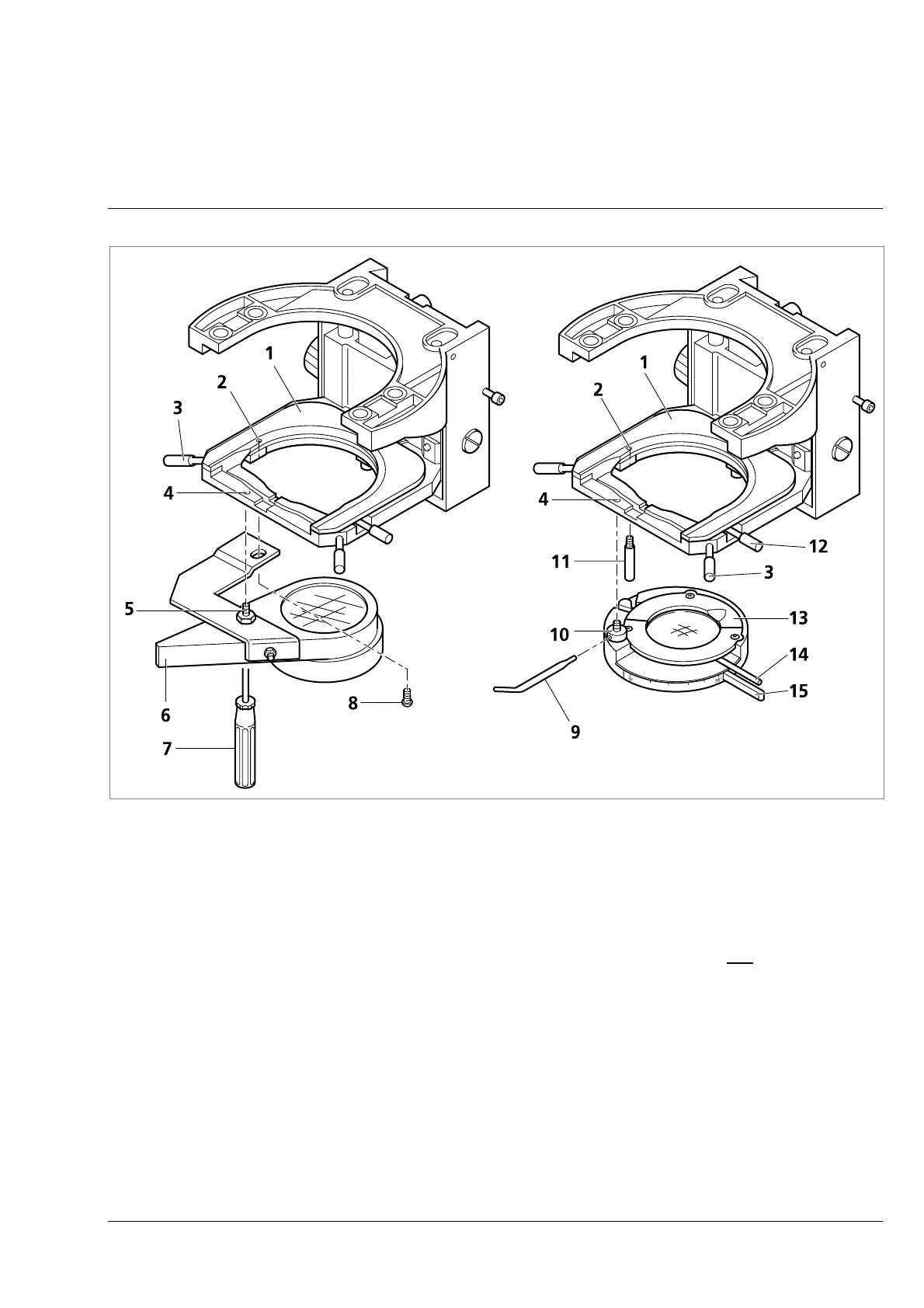

Fig. 3-23 Attach polarizer to stage carrier D
