Zenith C32V37 - DVD Player Connection

PAGE 12
206-03890
DVD Player
Mini glossary
COMPONENT VIDEO Some video equipment uses three separate lines (Y, P
B, PR) to more precisely reproduce images. Your manual will explain how
this relates to your equipment.
1
2
R
Audio
LR
S-Video
CALIBRATION
DIGITAL
AUDIO OUTPUT
OPTICAL
DVD/DTV INPUT
VIDEO
AUDIO
L(MONO) R
ANTENNA 1 ANTENNA 2
DVI-HDTV INPUT
DIGITAL
AUDIO INPUT1
OPTICAL
(COMPONENT1)
DIGITAL
AUDIO INPUT2
OPTICAL
(DVI)
PR
COMPONENT1
(480i/480p/720p/1080i)
COMPONENT2
S-VIDEO VIDEO/AUDIO INPUT
P
B
Y
L
R
IN1
IN2
IN3
AUDIO
P
R
PB
Y
L
R
AUDIO
+75 Ω + 75 Ω
Component input jacks
on the TV
Y
PB
PR
Video output jacks
of DVD player
Y
Y
Y
Y
Pb
B-Y
Cb
PB
Pr
R-Y
Cr
P
R

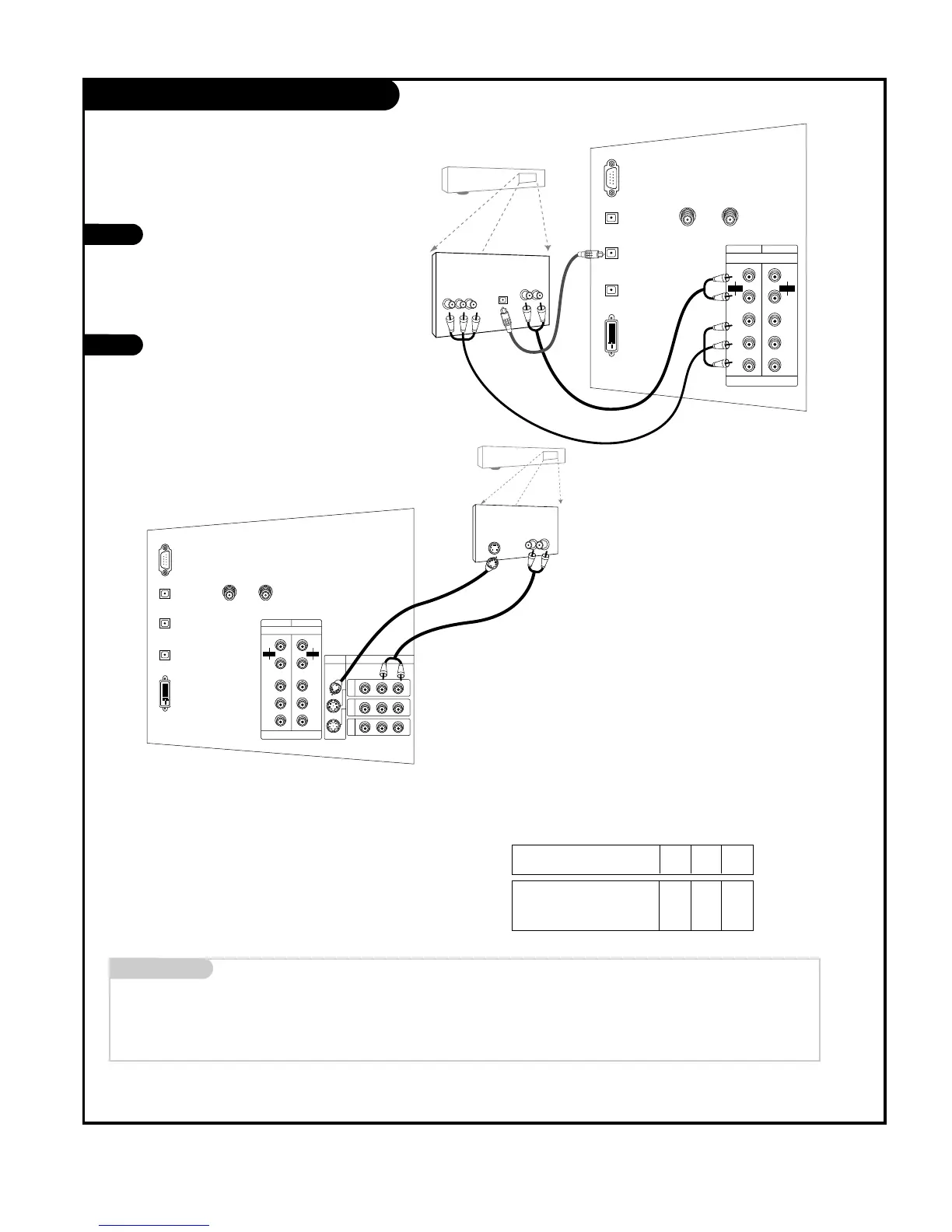

• Component Input ports
You can get better picture quality if you
connect DVD player with component input
ports as below.
A/V cables
not included
with TV
DVD player
Back AV panel
or
Back AV panel
Find the component or S-Video
jacks for video connections,
depending on your DVD connec-
tors. Then make the correspond-
ing audio connections. See the
diagram for either set up.
You may connect either the
composite video or the S-Video
cables to your TV. Do not con-
nect both the composite and
the S-Video.
Some high-end DVD players use
a picture reproduction system
called “component video.” If
your DVD player has component
output, use the connector
marked “Component 1/2” on
the jack panel. Please refer to
your DVD manual for proper
installation.
