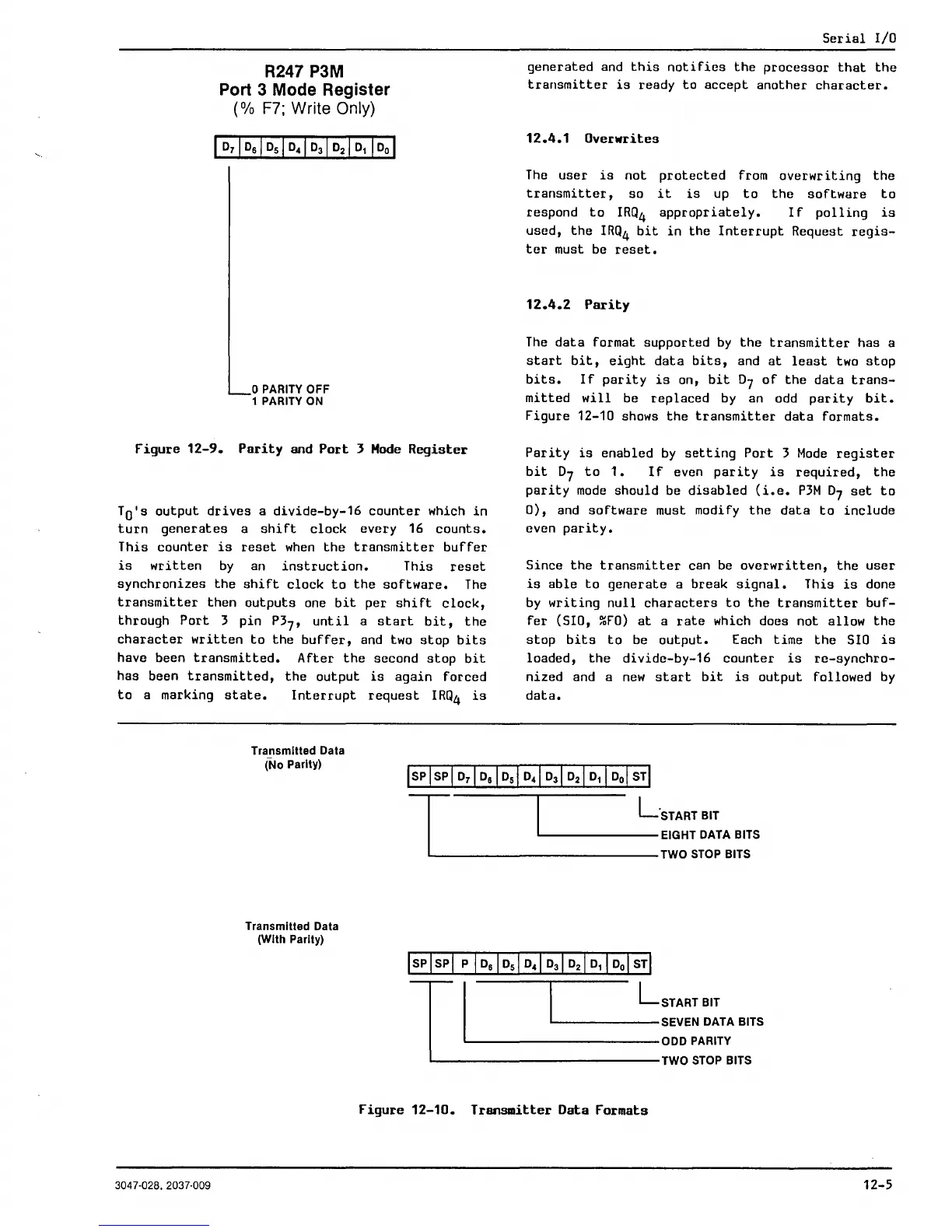

R247 P3M
Port 3 Mode Register
(%
F7;
Write Only)
o PARITY OFF
1 PARITY
ON
Figure
12-9.
Parity
and
Port
J
Hode
Register
TO's
output
drives
a
divide-by-16
counter
which
in
turn
generates
a
shift
clock
every
16
counts.
This
counter
is
reset
when
the
transmitter
buffer
is
written
by
an
instruction.
This
reset
synchronizes
the
shift
clock
to
the
software.
The
transmitter
then
outputs
one
bit
per
shift
clock,
through
Port
3
pin
P3
7
,
until
a
start
bit,
the
character
written
to
the
buffer,
and
two
stop
bits
have been
transmitted.
After
the
second
stop
bit
has been
transmitted,
the
output
is
again
forced
to
a marking
state.
Interrupt
request
IRQ4
is
Transmitted Data
(No
Parity)
Transmitted Data
(With Parity)
Serial
I/O
generated
and
this
notifies
the
processor
that
the
transmitter
is
ready
to
accept
another
character.
12.4.1
Overwrites
The
user
is
not
protected
from overwr
iting
the
transmitter,
so
it
is
up
to
the
software
to
respond
to
IRQ4
appropriately.
I f
polling
is
used,
the
IRQ4
bit
in
the
Interrupt
Request
regis-
ter
must be
reset.
12.4.2
Parity
The
data
format supported
by
the
transmitter
has a
start
bit,
eight
data
bits,
and
at
least
two
stop
bits.
If
parity
is
on,
bit
D7
of
the
data
trans-
mitted
will
be
replaced
by
an
odd
parity
bit.
Figure
12-10 shows
the
transmitter
data
formats.
Parity
is
enabled
by
setting
Port
3
Mode
register
bit
D7
to
1.
If
even
parity
is
required,
the
parity
mode
should be
disabled
(i.e.
P3M
D7
set
to
0),
and
software
must modify
the
data
to
include
even
parity.
Since
the
transmitter
can
be
overwritten,
the
user
is
able
to
generate
a break
signal.
This
is
done
by
writing
null
characters
to
the
transmitter
buf-
fer
(510,
%FO)
at
a
rate
which does not allow
the
stop
bits
to
be
output.
Each time
the
510
is
loaded,
the
divide-by-16
counter
is
re-synchro-
nized
and a
new
start
bit
is
output
followed
by
data.
L'START
BIT
'--------EIGHT
DATA BITS
TWO
STOP
BITS
T
I
LSTART
BIT
L..
___________
SEVEN
DATA BITS
. ODD PARITY
TWO
STOP
BITS
Figure
12-10.
Transmitter
Data Formats
3047-028,2037-009
12-5
