ZKTeco ProFace X User Manual

ProFace X (DS) User Manual
Page | 39 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

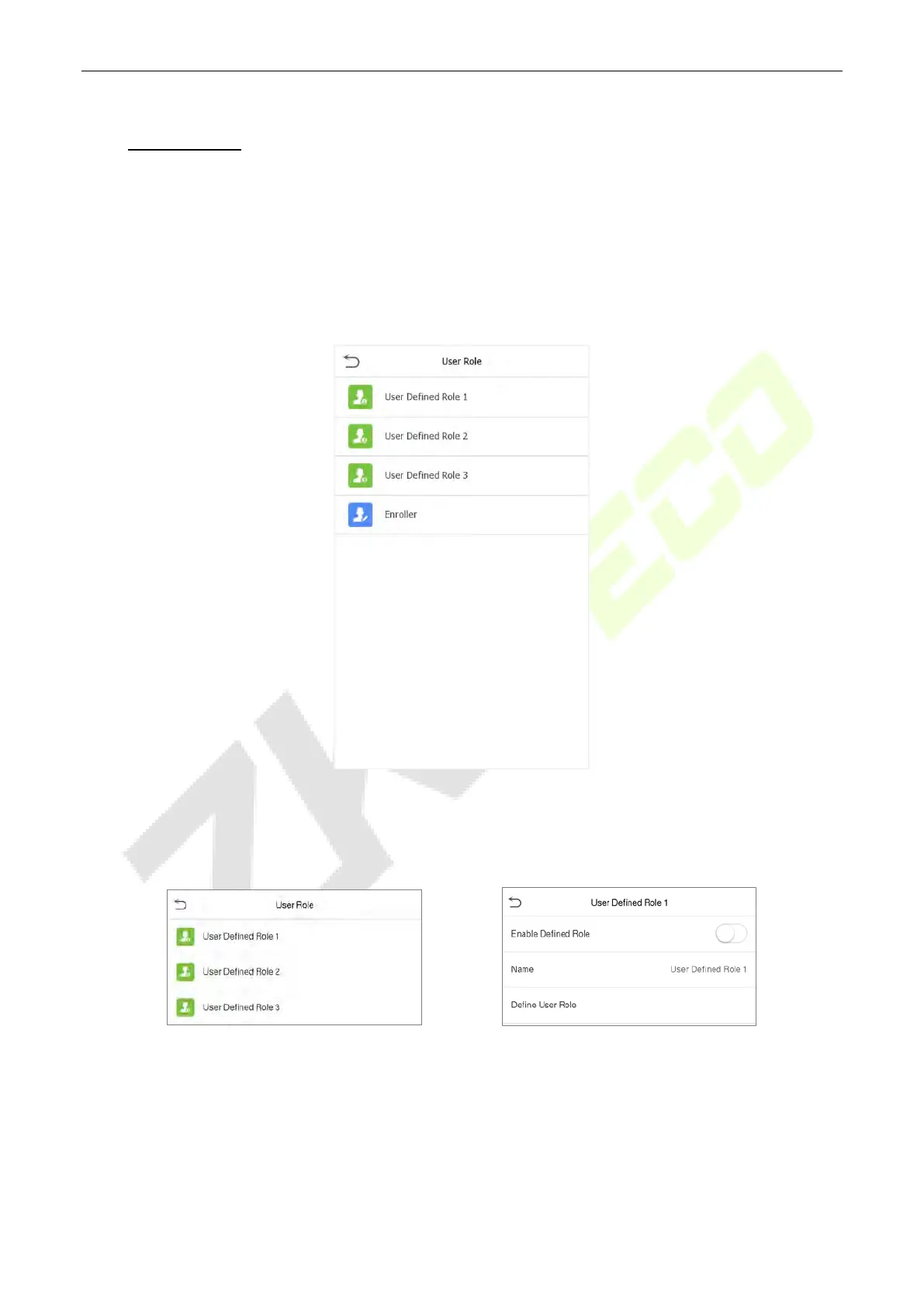

6 User Role
User Role facilitates to assign some specific permissions to certain users, based on the requirement.
 On the Main menu, tap User Role, and then tap on the User Defined Role to set the user
defined permissions.
 The permission scope of the custom role can be set up into 3 roles, that is, the custom operating
scope of the menu functions of the user.
 On the User Defined Role interface, toggle Enable Defined Role to enable or disable the user
defined role.
 Tap on Name and enter the custom name of the role.
 Then, by tapping on Define User Role, select the required privileges for the new role, and then
press the Return button.
 During privilege assignment, the main menu function names will be displayed on the left and its
sub-menus will be listed on the right.

ZKTeco ProFace X Specifications

General

Type	Face recognition terminal
IK code	IK04
Face capacity	30000
Product color	Black, Grey
User capacity	50000 user(s)
Event capacity	1000000
Wiegand interface	Yes
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
International Protection (IP) code	IP68
Operating temperature (T-T)	-30 - 60 °C
RS-232 ports	1
Screen shape	Flat
Display diagonal	8 \
Display technology	LED
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Input current	2 A
Input voltage	12 V

Weight and Dimensions

Depth (with stand)	26 mm
Width (with stand)	143 mm
Height (with stand)	227 mm
