ZKTeco ProFace X User Manual

ProFace X (DS) User Manual
Page | 15 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

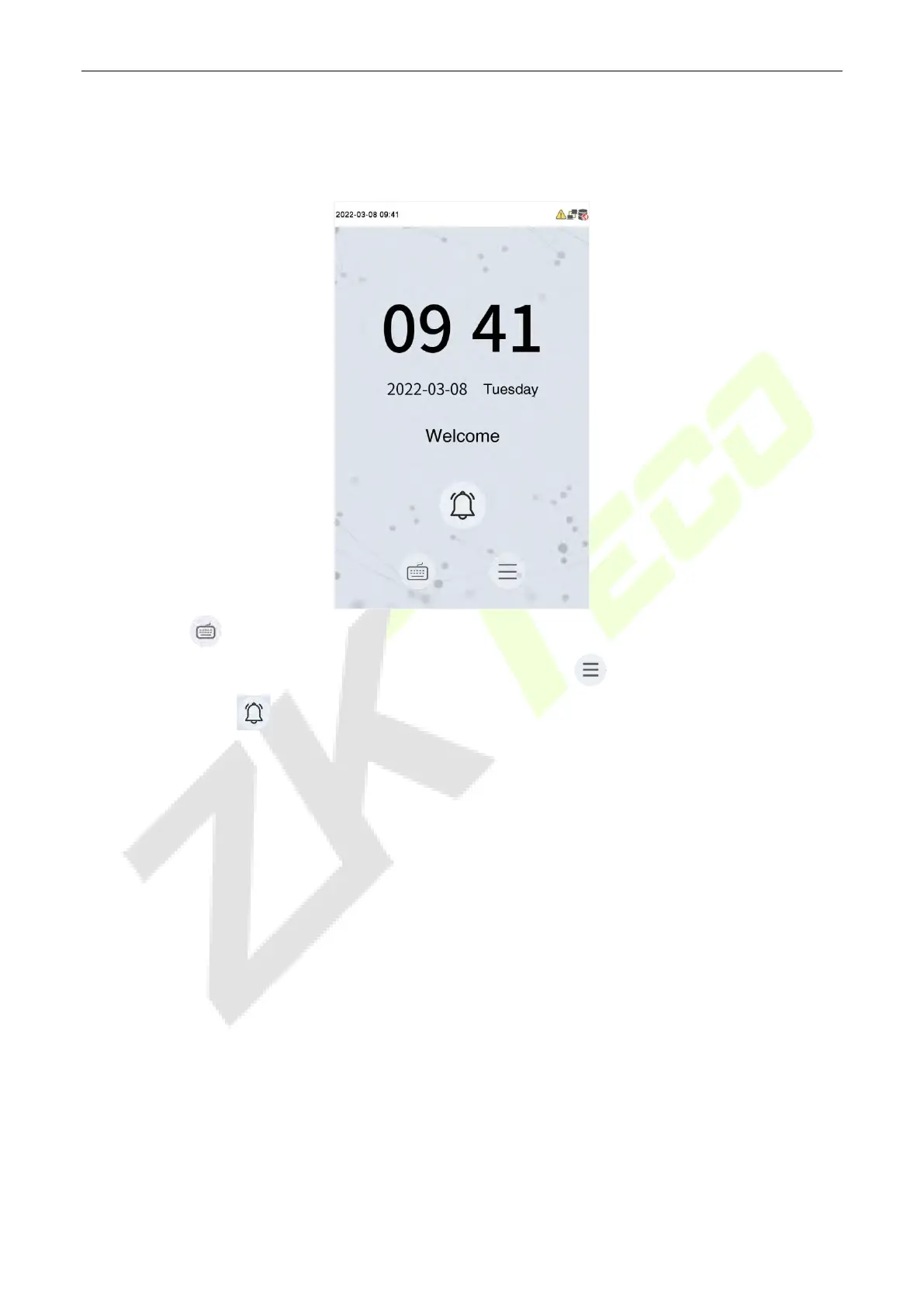

Standby Interface 3.4
After connecting the AC adapter, the following standby interface is displayed:
 Click to enter the User ID input interface.
 When there is no Super Administrator set in the device, tap to go to the menu.
 Visitors tap to make a call and the phone will ring.
 After installing the Super Administrator on the device, it must be verified by the Super
Administrator before using the menu functions.
 The punch state options can also be displayed and used directly on the standby interface. Click
anywhere on the screen apart from the icons, and six shortcut keys appear on the screen, as
shown in the figure below:

ZKTeco ProFace X Specifications

General

Type	Face recognition terminal
IK code	IK04
Face capacity	30000
Product color	Black, Grey
User capacity	50000 user(s)
Event capacity	1000000
Wiegand interface	Yes
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
International Protection (IP) code	IP68
Operating temperature (T-T)	-30 - 60 °C
RS-232 ports	1
Screen shape	Flat
Display diagonal	8 \
Display technology	LED
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Input current	2 A
Input voltage	12 V

Weight and Dimensions

Depth (with stand)	26 mm
Width (with stand)	143 mm
Height (with stand)	227 mm
