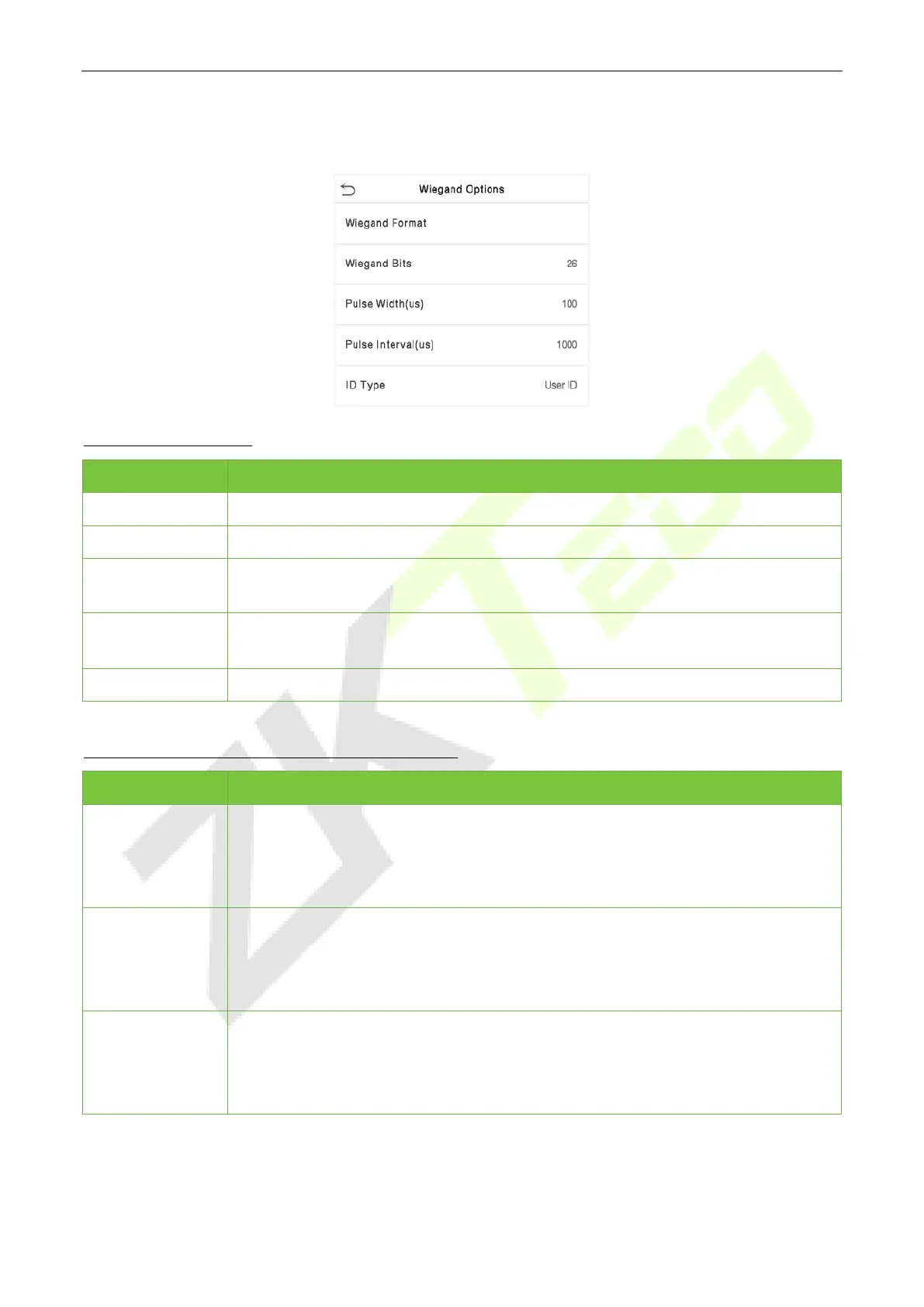

7.6.1 Wiegand Input
Function Description
Function Name Descriptions
Wiegand Format
Its value can be 26 bits, 34 bits, 36 bits, 37 bits, and 50 bits.
Wiegand Bits
The number of bits of the Wiegand data.
Pulse Width(us)
The value of the pulse width sent by Wiegand is 100 microseconds by default, which
can be adjusted within the range of 20 to 100 microseconds.
Pulse
Interval(us)
The default value is 1000 microseconds and can be adjusted within the range of 200
to 20000 microseconds.
ID Type
Select between the User ID and card number.
Various Common Wiegand Format Description:
Wiegand Format Description
Wiegand26
ECCCCCCCCCCCCCCCCCCCCCCCCO
It consists of 26 bits of binary code. The 1
st
bit is the even parity bit of the 2
nd
to 13
th
bits, while the 26
th
bit is the odd parity bit of the 14
th
to 25
th
bits. The 2
nd
to 25
th
bits
are the card numbers.
Wiegand26a
ESSSSSSSSCCCCCCCCCCCCCCCCO
It consists of 26 bits of binary code. The 1
st
bit is the even parity bit of the 2
nd
to 13
th
bits, while the 26
th
bit is the odd parity bit of the 14
th
to 25
th
bits. The 2
nd
to 9
th
bits is
the site codes, while the 10
th
to 25
th
bits are the card numbers.
Wiegand34
ECCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCCO
It consists of 34 bits of binary code. The 1
st
bit is the even parity bit of the 2
nd
to 17
th
bits, while the 34
th
bit is the odd parity bit of the 18
th
to 33
rd
bits. The 2
nd
to 25
th
bits
are the card numbers.

ZKTeco ProFace X Specifications

General

Type	Face recognition terminal
IK code	IK04
Face capacity	30000
Product color	Black, Grey
User capacity	50000 user(s)
Event capacity	1000000
Wiegand interface	Yes
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
International Protection (IP) code	IP68
Operating temperature (T-T)	-30 - 60 °C
RS-232 ports	1
Screen shape	Flat
Display diagonal	8 \
Display technology	LED
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Input current	2 A
Input voltage	12 V

Weight and Dimensions

Depth (with stand)	26 mm
Width (with stand)	143 mm
Height (with stand)	227 mm
