ZKTeco ProFace X User Manual

ProFace X (DS) User Manual
Page | 68 Copyright©2022 ZKTECO CO., LTD. All rights reserved.

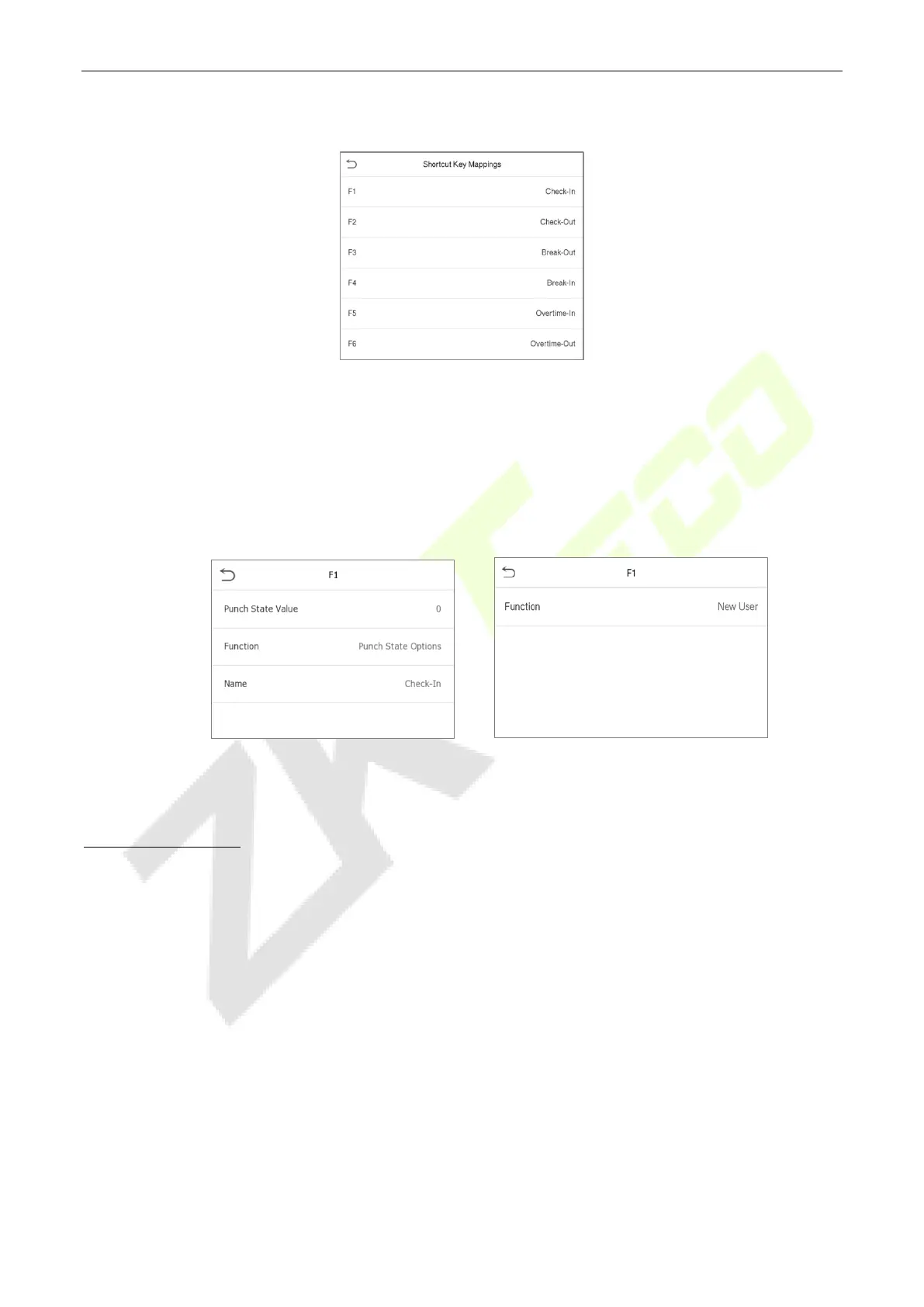

Tap Shortcut Key Mappings on the Personalize interface to set the required shortcut keys.
 On the Shortcut Key Mappings interface, tap on the required shortcut key to configure the
shortcut key settings.
 On the Shortcut Key (that is "F1") interface, tap function to set the functional process of the
shortcut key either as punch state key or function key.
 If the Shortcut key is defined as a function key (such as New user, All users, etc.), the configuration
is completed as shown in the image below.
 If the Shortcut key is set as a punch state key (such as check in, check out, etc.), then it is required
to set the punch state value (valid value 0~250), name.
Set the switch time
 The switch time is set in accordance with the punch state options.
 When the Punch State Mode is set to Auto Mode, the switch time should be set.
 On the Shortcut Key interface, tap Set Switch Time to set the switch time.
 On the Switch Cycle interface, select the switch cycle (Monday, Tuesday, etc.) as shown in the
image below.

ZKTeco ProFace X Specifications

General

Type	Face recognition terminal
IK code	IK04
Face capacity	30000
Product color	Black, Grey
User capacity	50000 user(s)
Event capacity	1000000
Wiegand interface	Yes
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
International Protection (IP) code	IP68
Operating temperature (T-T)	-30 - 60 °C
RS-232 ports	1
Screen shape	Flat
Display diagonal	8 \
Display technology	LED
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Input current	2 A
Input voltage	12 V

Weight and Dimensions

Depth (with stand)	26 mm
Width (with stand)	143 mm
Height (with stand)	227 mm
