Zoom PodTrak P4 User Manual

Connecting

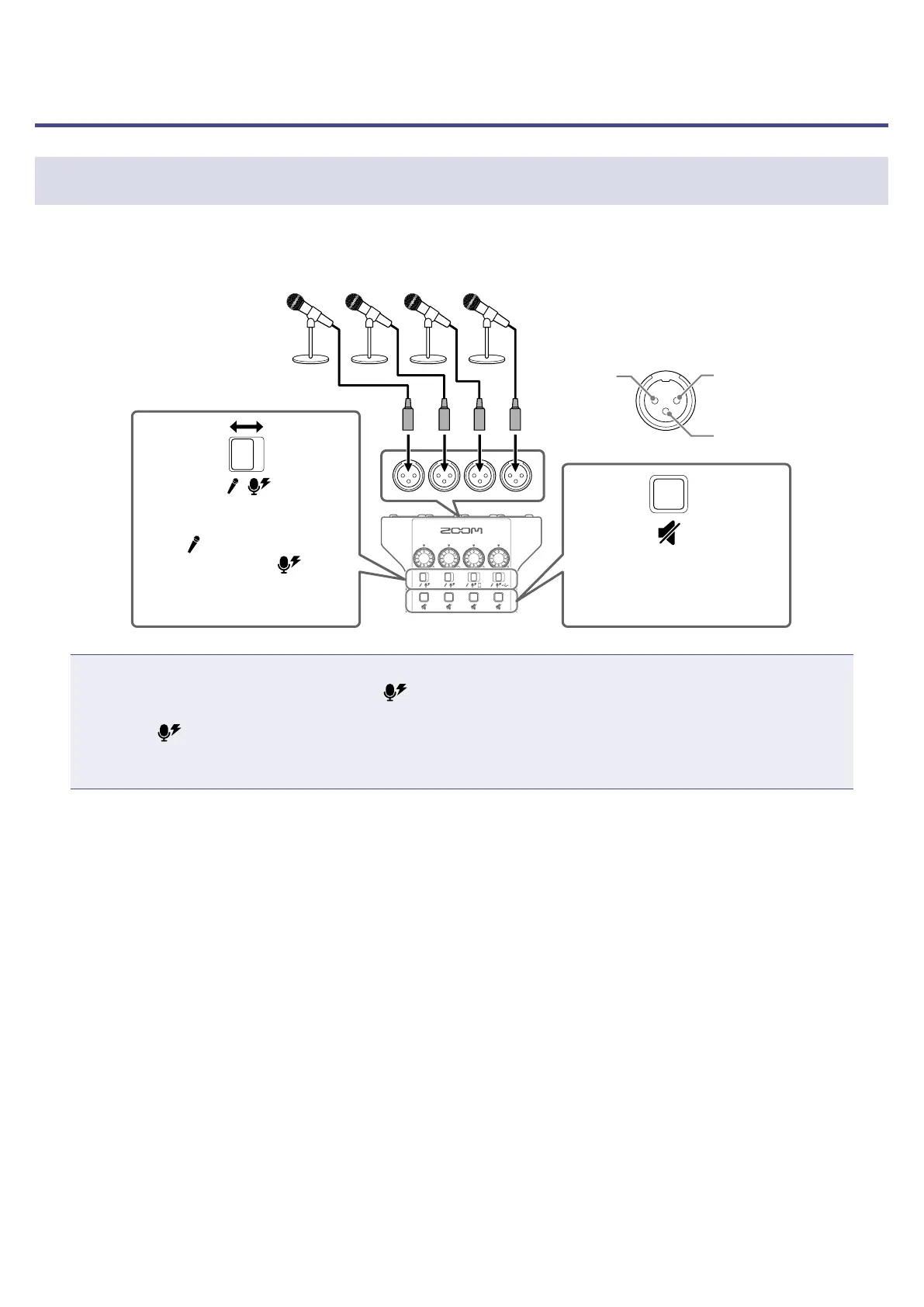

Connecting mics
Connect mics to capture sound. Up to 4 mics can be connected.
INPUT SELECT switches 1–4
Set to
when using a
dynamic mic or to
when
using a condenser mic.
MUTE buttons 1–4
Press to mute inputs.
These light when muted.
Dynamic and condenser mics
Use mic cables (with XLR
connectors) to connect them to
INPUT jacks 1–4.
2: HOT 1: GND
3: COLD
NOTE
•When an INPUT SELECT switch is set to
, +48 V phantom power is supplied to that INPUT jack.
When connecting to a device that is not compatible with phantom power, do not set the INPUT SELECT
switch to . Doing so could damage the device.
•During recording, operating the INPUT SELECT switch will not change the phantom power supply
setting. The change will be applied after recording completes.
18

Zoom PodTrak P4 Specifications

Audio Specifications

number of input channels	4 (mono/stereo)
number of output channels	1 (headphone × 4)
phantom power	+48 V

Ports & Interfaces

connectors	MIC XLR jacks (2: HOT)
smartphone connection jack	TRRS mini jack (4 contacts, TIP: L, RING1: R, RING2: GND, SLEEVE: MIC)
USB	USB Type-C

Power

dc power supply	5 V USB Type-C
battery type	2 AA batteries (alkaline, NiMH or lithium)
ac adapter	DC 5 V/1 A

Battery Life

alkaline batteries operation time	about 4 hours
nimh batteries operation time	about 4.5 hours
lithium batteries operation time	about 9 hours

Weight and Dimensions

external dimensions	112 mm (W) × 155 mm (D) × 47 mm (H)
weight	290 g
