Zoom PodTrak P4 User Manual

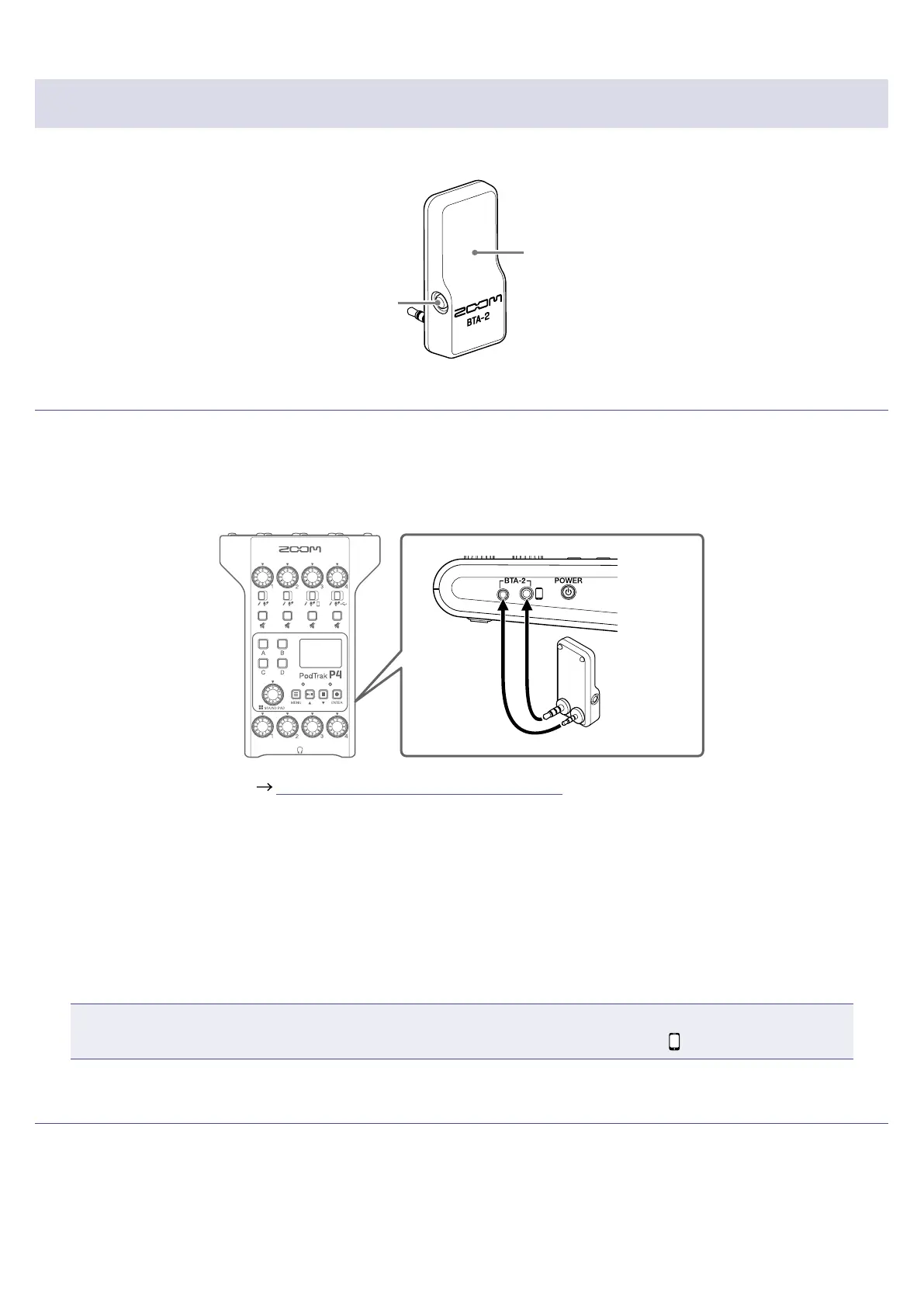

Connecting a BTA-2 (dedicated wireless adapter)
By connecting a BTA-2, audio can be input through the smartphone connection jack via Bluetooth.
LED
Pairing
switch
Connecting
Pairing must be conducted the rst time connecting.
1.
While the
P4
power is off, connect the BTA-2 to the smartphone connection jack and the BTA-2 power
supply connector.
BTA-2
2.
Turn the
P4
power on ( “Turning the power on” on page 16).
The LED lights white when power is being supplied to the BTA-2.
If a smartphone has already been paired, it will automatically be connected at this time.
3.
Press and hold the pairing switch until the BTA-2 LED blinks white.
This puts the BTA-2 into connection standby.
4.
Conduct connection procedures on the smartphone.
The LED will light blue when connection completes.
NOTE
When connecting to a smartphone using a BTA-2, set INPUT SELECT switch 3 to
.
Disconnecting
1.
Conduct disconnection procedures on the smartphone.
This disconnects it.
2.
The
P4
power should be off when disconnecting a BTA-2.
21

Zoom PodTrak P4 Specifications

Audio Specifications

number of input channels	4 (mono/stereo)
number of output channels	1 (headphone × 4)
phantom power	+48 V

Ports & Interfaces

connectors	MIC XLR jacks (2: HOT)
smartphone connection jack	TRRS mini jack (4 contacts, TIP: L, RING1: R, RING2: GND, SLEEVE: MIC)
USB	USB Type-C

Power

dc power supply	5 V USB Type-C
battery type	2 AA batteries (alkaline, NiMH or lithium)
ac adapter	DC 5 V/1 A

Battery Life

alkaline batteries operation time	about 4 hours
nimh batteries operation time	about 4.5 hours
lithium batteries operation time	about 9 hours

Weight and Dimensions

external dimensions	112 mm (W) × 155 mm (D) × 47 mm (H)
weight	290 g
