Zoom PodTrak P4 User Manual

Selecting les not supported by the
P4

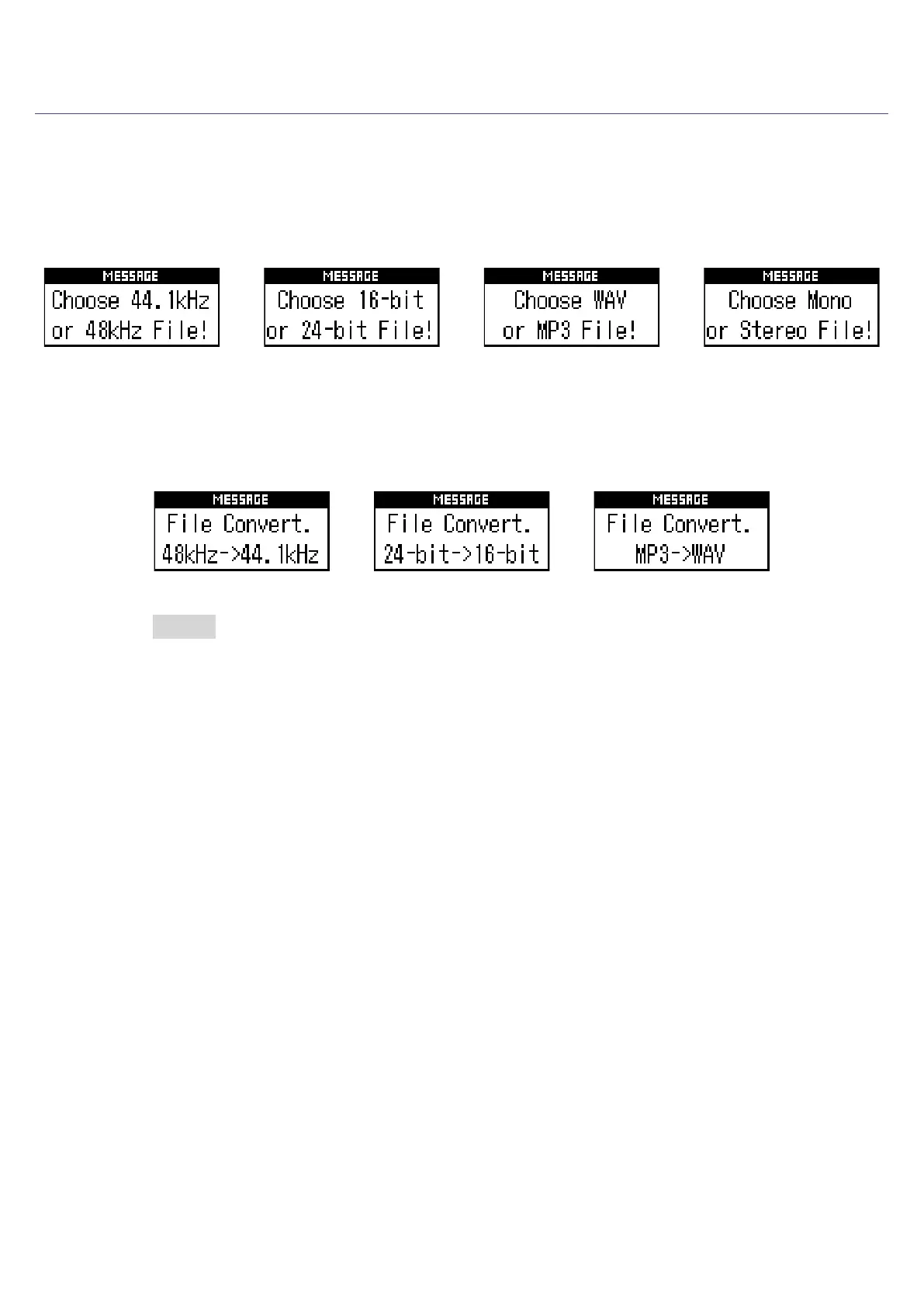

When a le that is not supported by the
P4
is selected on the Files Screen, one of the following messages
will be shown on the display.
■
File selected that cannot be played by the
P4
If one of the above pop-up messages appears, the selected le cannot be played by the
P4
. Select a
different le.
■
File selected that can be converted by the
P4
If one of the above pop-up messages appears, the selected le can be converted by the
P4
and then
played. Select Execute to start conversion. The converted le will appear on the Files Screen.
28

Zoom PodTrak P4 Specifications

Audio Specifications

number of input channels	4 (mono/stereo)
number of output channels	1 (headphone × 4)
phantom power	+48 V

Ports & Interfaces

connectors	MIC XLR jacks (2: HOT)
smartphone connection jack	TRRS mini jack (4 contacts, TIP: L, RING1: R, RING2: GND, SLEEVE: MIC)
USB	USB Type-C

Power

dc power supply	5 V USB Type-C
battery type	2 AA batteries (alkaline, NiMH or lithium)
ac adapter	DC 5 V/1 A

Battery Life

alkaline batteries operation time	about 4 hours
nimh batteries operation time	about 4.5 hours
lithium batteries operation time	about 9 hours

Weight and Dimensions

external dimensions	112 mm (W) × 155 mm (D) × 47 mm (H)
weight	290 g
