Connecting
Connecting mics

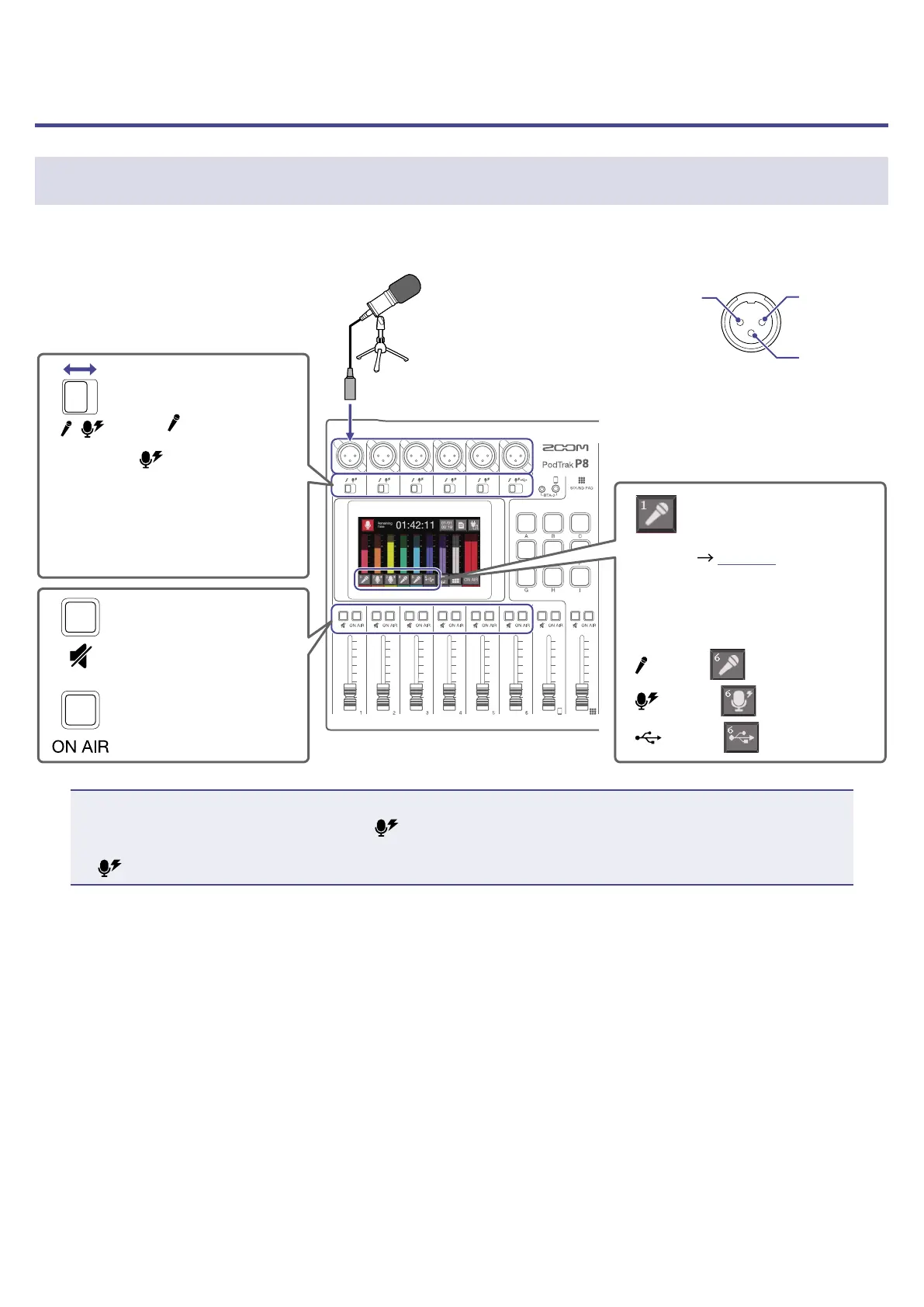

Connect mics to capture sound. Up to 6 mics can be connected.
INPUT SELECT
switches 1–6
Set to
when using
a dynamic mic or
to when using a
condenser mic.
Gain will be set suitably
for the selection.
MUTE buttons 1–6
Conrm that these
are not lit.
Dynamic and condenser
mics
Use mic cables (with XLR
connectors) to connect
them to INPUT jacks 1–6.
2: HOT 1: GND
3: COLD
ON AIR buttons 1–6
Conrm that they
are lit.
Track buttons 1–6
Tap to adjust mic gain
and audio quality
(
page 32).
Track buttons appear as follows
according to their INPUT
SELECT switch settings.
setting:
setting:
setting:
NOTE
When an INPUT SELECT switch is set to
, +48V phantom power is supplied to that INPUT jack. When
connecting to a device that is not compatible with phantom power, do not set the INPUT SELECT switch
to . Doing so could damage the device.
