Zoom PodTrak P8 User Manual

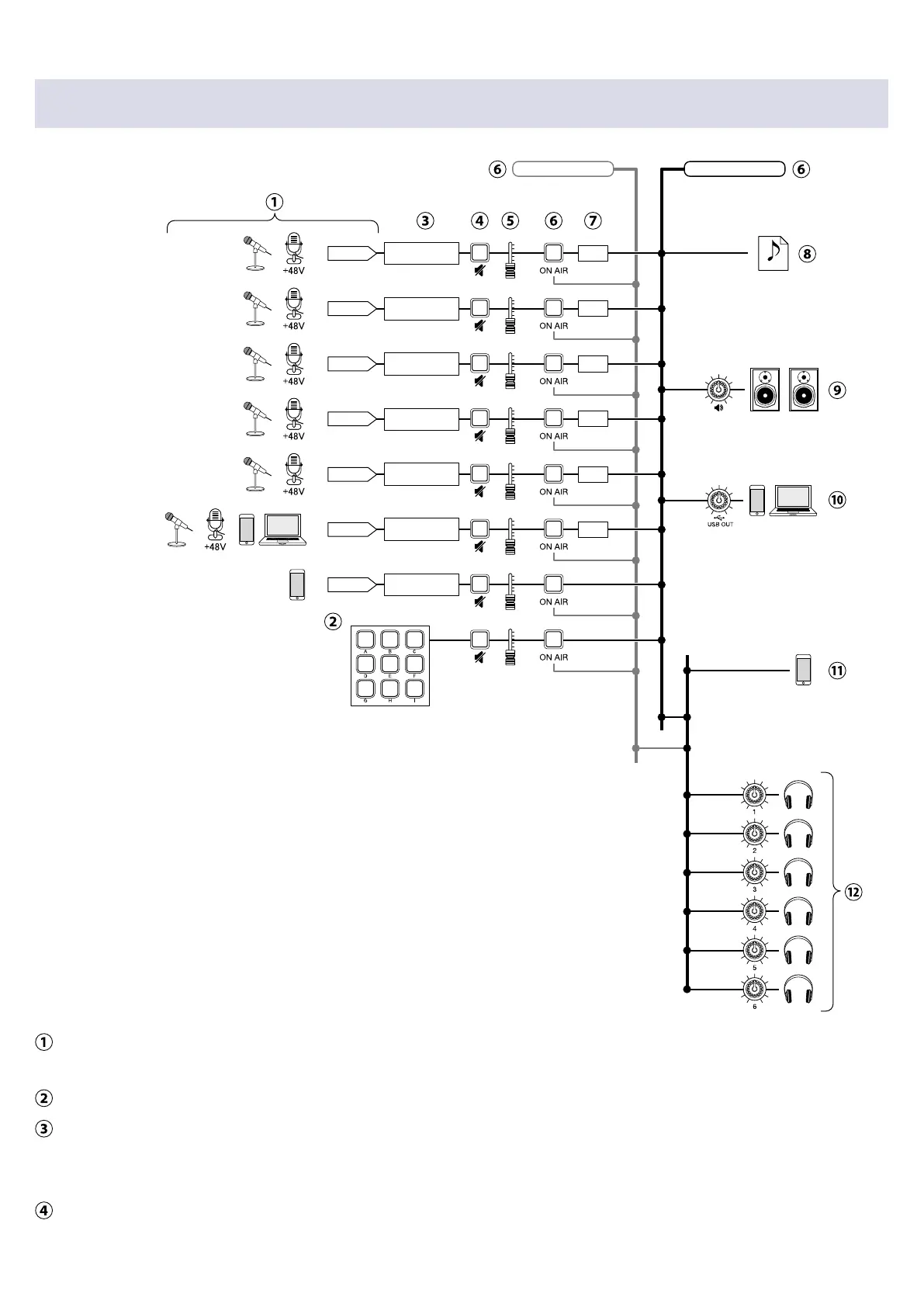

Signal ow
L/R
SOUND PAD
ON AIR button litON AIR button unlit
INPUT 1
MUTE FADER
Adjust volume
and audio quality
N.R.
INPUT 2
MUTE FADER
N.R.
INPUT 3
MUTE FADER
N.R.
INPUT 4
MUTE FADER
N.R.
INPUT 5
MUTE FADER
N.R.
INPUT 6
MUTE FADER
N.R.
PHONE
MUTE FADER
MUTE FADER
Adjust volume
and audio quality
Adjust volume
and audio quality
Adjust volume
and audio quality
Adjust volume
and audio quality
Adjust volume
and audio quality
Adjust audio
quality
Smartphone
connection jack
USB port
Channel 4
Channel 5
Channel 6
Channel 1
Channel 2
Channel 3
SPEAKER OUT
jacks
Smartphone channel
Headphones
Input sound. Channels 1–5 can be used to input sound from mics. Channel 6 can be used to input sound
from a mic or the USB audio return. The smartphone channel can be used to input sound from a smartphone.
Play SOUND PAD sounds.
Make settings for inputs on each channel. Input gain can be adjusted, and a function that cuts unwanted low
frequencies and a limiter can be turned on or off (mic inputs only). In addition, the sound quality of all inputs
can be adjusted.
Mute/unmute channels. Inputs not being used can be muted.
13

Zoom PodTrak P8 Specifications

Power

phantom power	+48 V
battery type	4 AA batteries
ac adapter	DC 5 V/1 A

Ports & Interfaces

usb type	USB Type-C
headphones output	3.5mm stereo mini
speaker output	TRS jacks

Recording

recorder format	WAV 44.1kHz, 16-bit, mono/stereo
audio interface	44.1kHz, 16-bit, 2-in/2-out
supported media	4–32 GB cards (SDHC), 64–512 GB cards (SDXC)

Display

display type	full-color touchscreen LCD
display size	4.3 inches
display resolution	480×272

Weight and Dimensions

weight	1.43 kg
width	295 mm
depth	248 mm
height	61 mm
