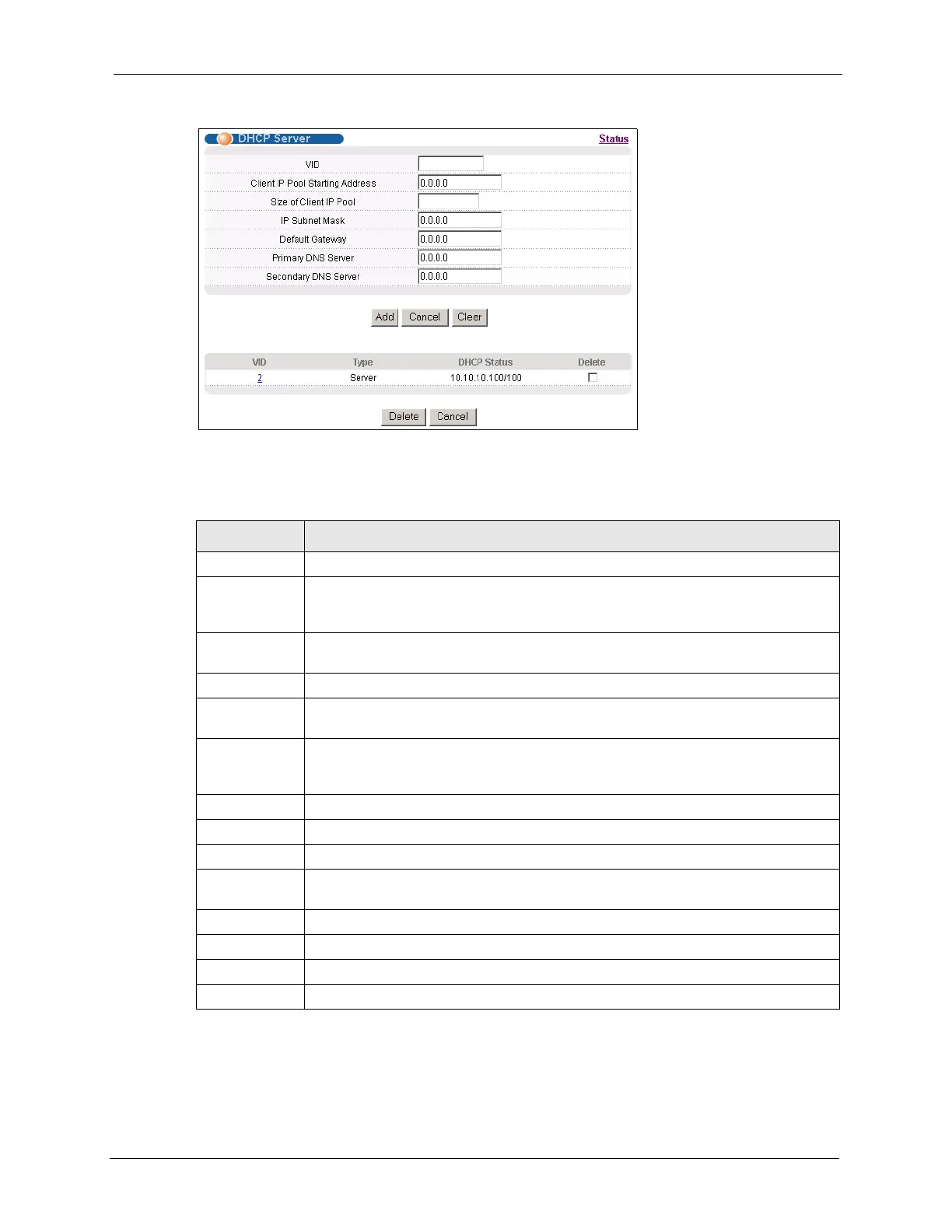

Figure 81 DHCP: Server
The following table describes the labels in this screen.
Table 65 DHCP: Server
LABEL DESCRIPTION
VID Enter the ID number of the VLAN group to which this DHCP settings apply.
Client IP Pool
Starting
Address
Specify the first of the contiguous addresses in the IP address pool.
Size of Client IP
Pool
Specify the size, or count of the IP address pool.
IP Subnet Mask Enter the subnet mask of the DHCP server.
Default
Gateway
Enter the IP address of the default gateway device.
Primary/
Secondary
DNS Server
Enter the IP addresses of the DNS servers. The DNS servers are passed to the
DHCP clients along with the IP address and the subnet mask.
Add Click Add to insert the settings as a new entry in the summary table.
Cancel Click Cancel to reset the fields to your previous configurations.
Clear Click Clear to reset the fields back to the factory defaults.
VID This field displays the ID number of the VLAN group to which this DHCP settings
apply.
Type This field displays Server for the DHCP mode.
DHCP Status This field displays the starting and the size of DHCP client IP address.
Delete Click Delete to remove the selected entry.
Cancel Click Cancel to clear the Delete check boxes.
