30.3 Configuring VRRP
Follow the instructions in the follow sections to configure VRRP on the switch.
30.3.1 IP Interface Setup
Before configuring VRRP, first create an IP interface (or routing domain) in the IP Setup
screen (see the Section 7.7 on page 76 for more information).
Click IP Application, VRRP and click the Configuration link to display the VRRP
Configuration screen as shown next.
Note: You can only configure VRRP on interfaces with unique VLAN IDs.
Routing domains with the same VLAN ID are not displayed in the table
indicated.

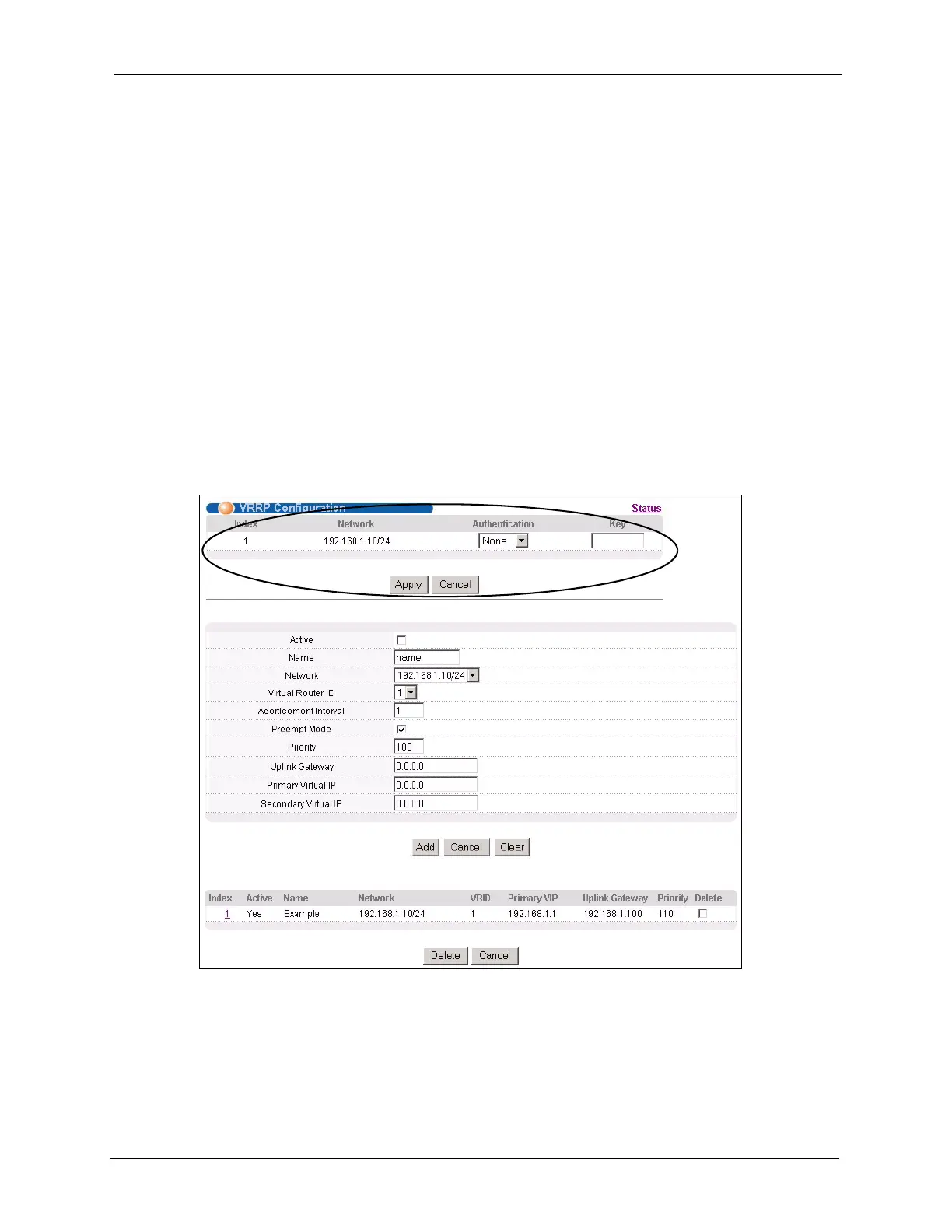

Figure 89 VRRP Configuration: IP Interface
The following table describes the labels in this screen.
