GS-4012F User’s Guide
Chapter 9 Static MAC Forward Setup 91
CHAPTER 9
Static MAC Forward Setup
Use these screens to configure static MAC address forwarding.
9.1 Overview
A static MAC address is an address that has been manually entered in the MAC address table.
Static MAC addresses do not age out. When you set up static MAC address rules, you are
setting static MAC addresses for a port. This may reduce the need for broadcasting.
Static MAC address forwarding together with port security allow only computers in the MAC
address table on a port to access the switch. See Chapter 17 on page 117 for more information
on port security.
9.2 Configuring Static MAC Forwarding
Click Advanced Applications, Static MAC Forwarding in the navigation panel to display
the configuration screen as shown. Scroll down to the bottom of the screen to view the
summary table for the settings.

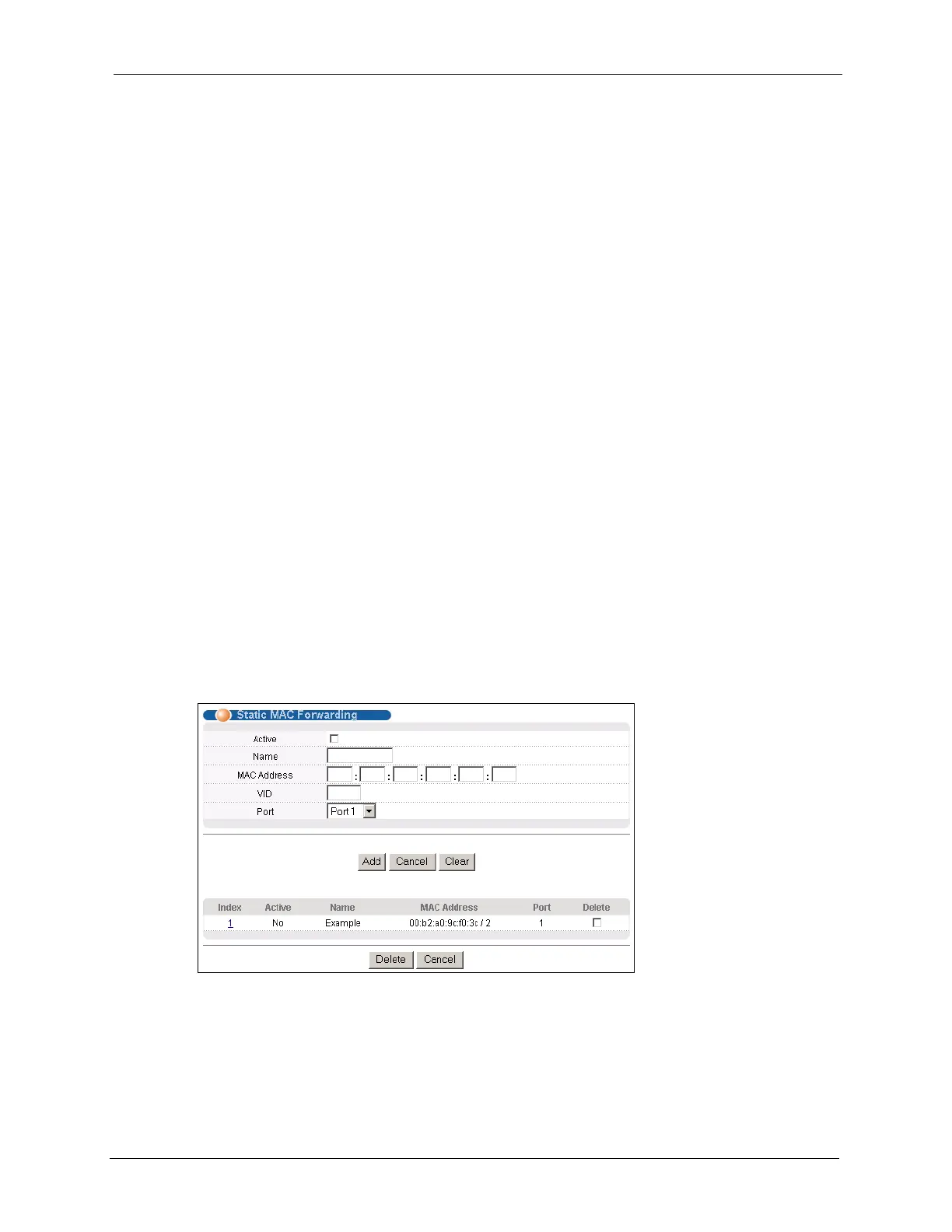

Figure 37 Static MAC Forwarding
The following table describes the labels in this screen.
