GS-4012F User’s Guide
172 Chapter 29 DHCP
29.4.2 DHCP Relay Configuration Example
The follow figure shows a network example where the switch is used to relay DHCP requests
for the RD and Sales network. There is only one DHCP server that services the DHCP clients
in both networks.

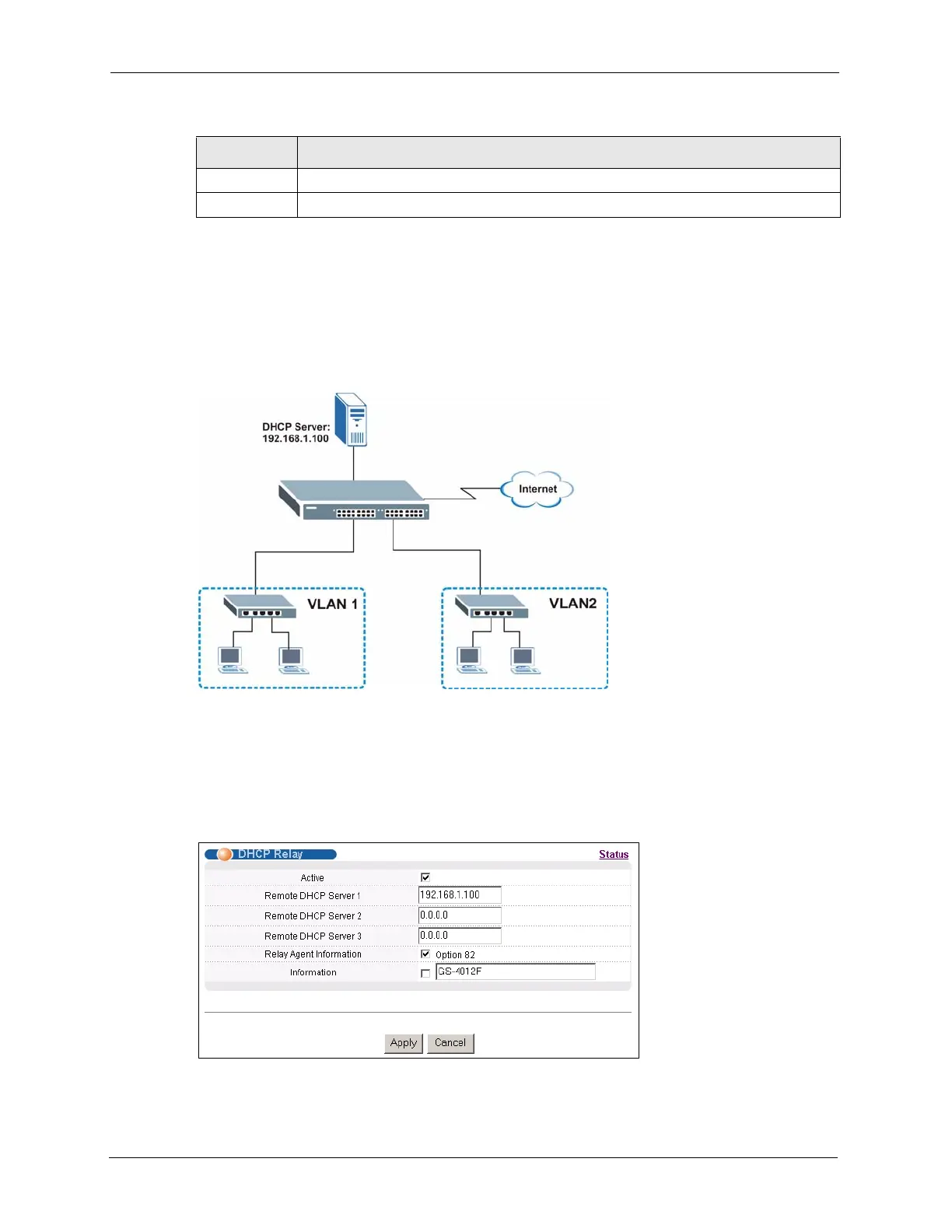

Figure 85 DHCP Relay Network Example
Configure the DHCP Relay screen as shown. Make sure you select the Option 82 check box
to set the switch to send additional information (such as the VLAN ID) together with the
DHCP requests to the DHCP server. This allows the DHCP server to assign the appropriate IP
address according to the VLAN ID.
Figure 86 DHCP Relay Configuration Example
Apply Click Apply to save the changes.
Cancel Click Cancel to discard all changes and start configuring the screen again.
Table 66 DHCP: Relay (continued)
LABEL DESCRIPTION
