GS-4012F User’s Guide
Chapter 5 Initial Setup Example 59
5.1.3 Creating a VLAN
VLANs confine broadcast frames to the VLAN group in which the port(s) belongs. You can
do this with port-based VLAN or tagged static VLAN with fixed port members.
In this example, you want to configure port 10 as a member of VLAN 2.

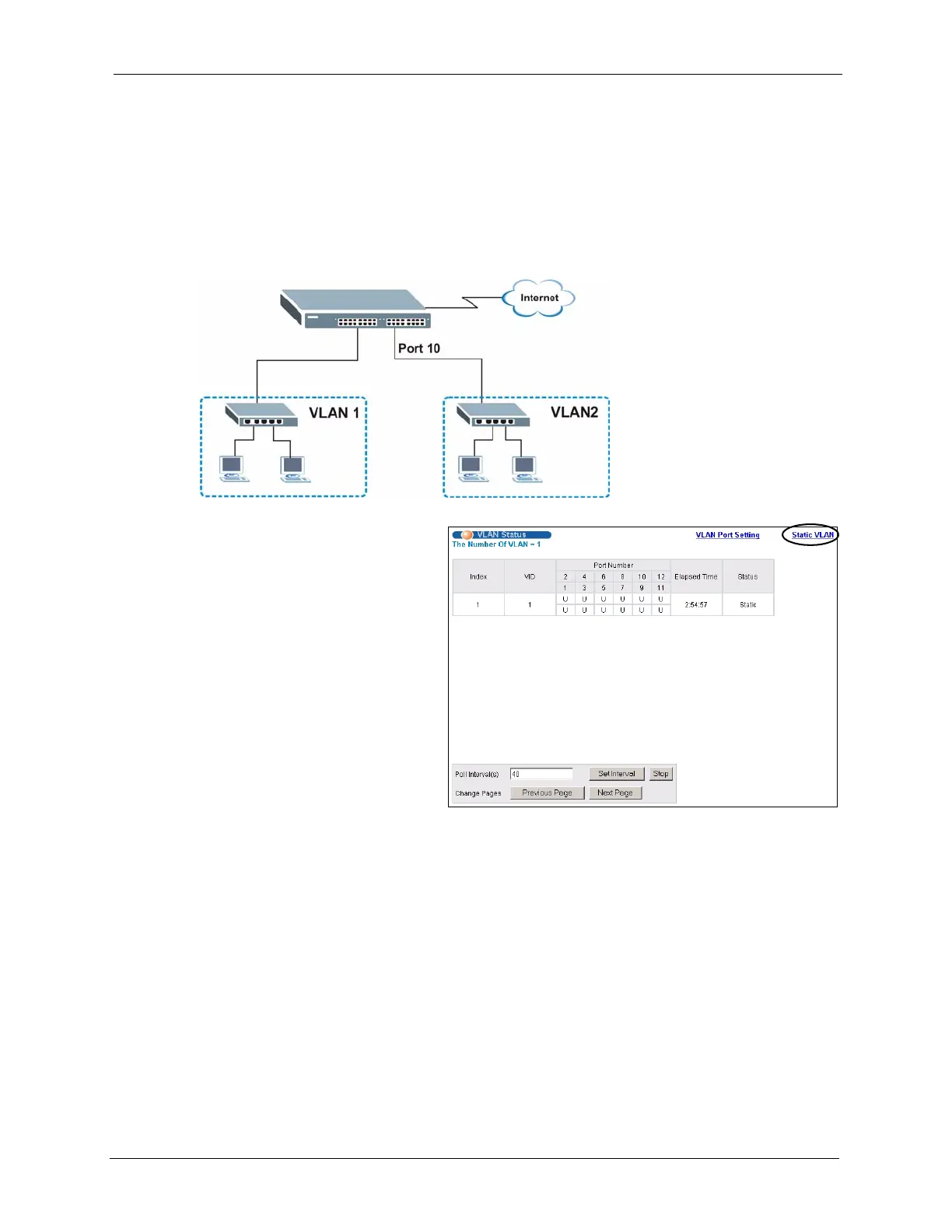

Figure 21 Initial Setup Network Example: VLAN
1 Click Advanced
Application and VLAN in
the navigation panel and
click the Static VLAN link.
