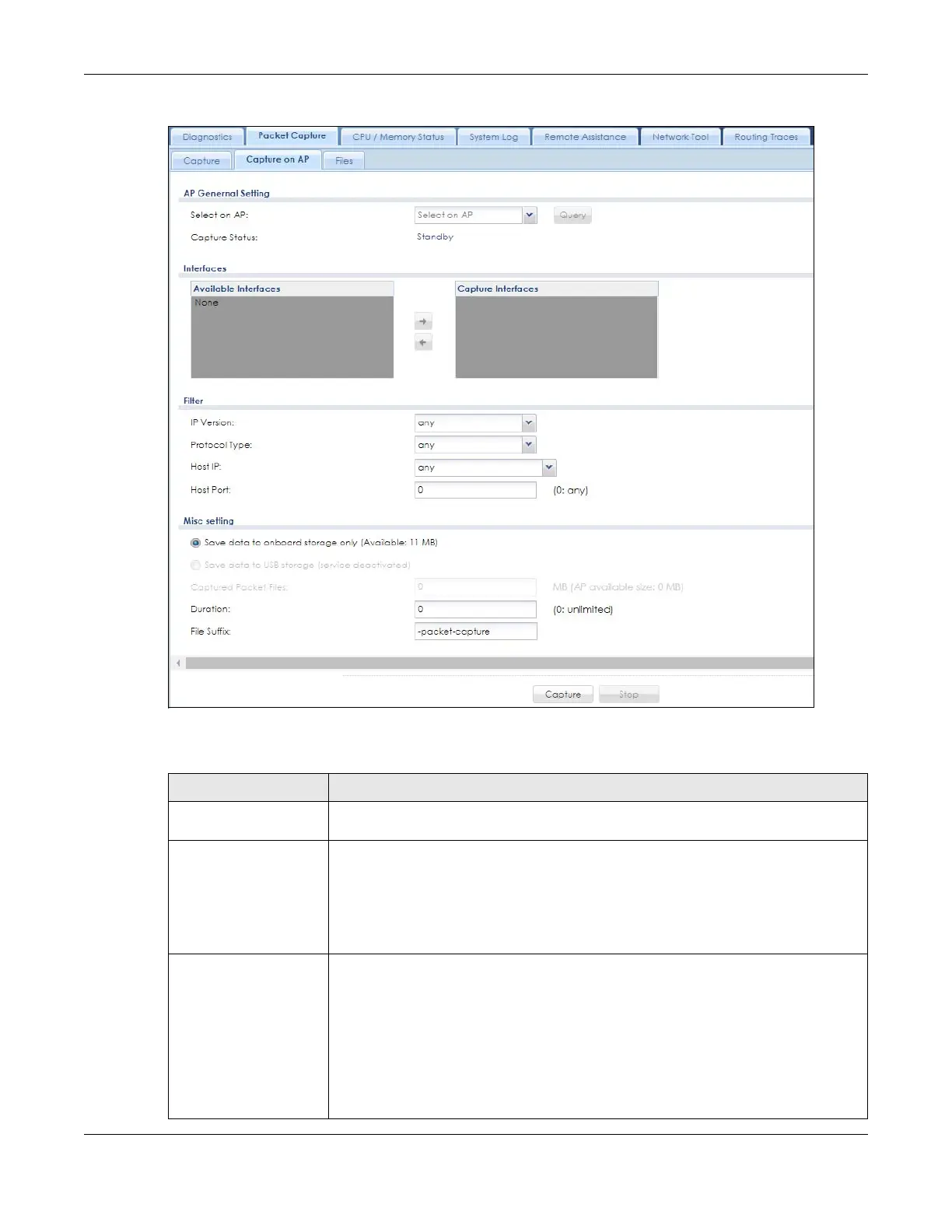

Figure 714 Maintenance > Diagnostics > Packet Capture > Capture on AP
The following table describes the labels in this screen.
Table 407 Maintenance > Diagnostics > Packet Capture > Capture on AP
LABEL DESCRIPTION
Select on AP This lists the managed APs that are connected and available. Select the managed AP
that you want the Zyxel Device to capture network traffic going through it.
Query After you select an AP, click this button to update and display the interfaces, filter
configuration and storage size available for the selected AP in the screen.
Note: You need to use the Query button before packet capturing on
an AP if the AP has rebooted or the applied AP profile settings
have been changed.
Capture Status This shows Standby when the Zyxel Device is ready to or have finished capturing network
traffic going through the selected AP’s interface(s).
This shows Preparing when the Zyxel Device is sending the capture command to the
AP’s interface(s).
This shows Capturing when the AP is capturing network traffic going through the
selected AP’s interface(s).
This shows File Receiving when the Zyxel Device starts to receive capture files from the
AP’s interface(s) after you press the Stop button.
