CHAPTER 3
Hardware, Interfaces and
Zones
3.1 Hardware Overview
This section describes the front and rear panels for each model.
3.1.1 Front Panels
The LED indicators are located on the front panel.

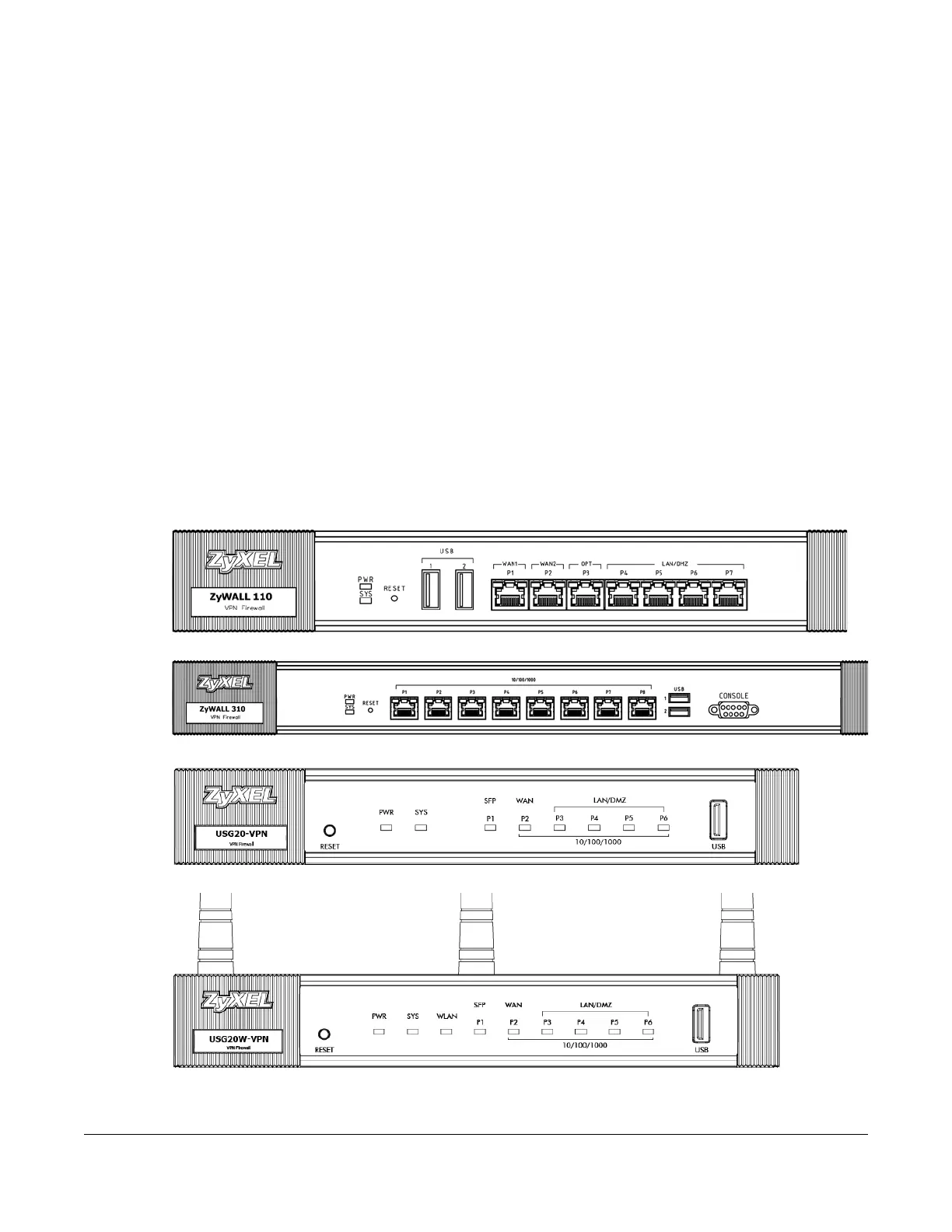

Figure 42 ZyWALL 110 / USG110 / USG210 Front Panel
Figure 43 ZyWALL 310 / ZyWALL 1100 / USG310 / USG1100 / USG1900 Front Panel
Figure 44 USG20-VPN Front Panel
Figure 45 USG20W-VPN Front Panel
