3.2.3 Wall-mounting
Do the following to attach the USG20-VPN, USG20W-VPN, USG40, USG40W, USG60, USG60W Zyxel
Devices to a wall.
1 Drill two holes 3 mm ~ 4 mm (0.12" ~ 0.16") wide, 20 mm ~ 30 mm (0.79” ~ 1.18”) deep and 174 mm (6.85”)
apart, into a wall. Place two screw anchors in the holes.

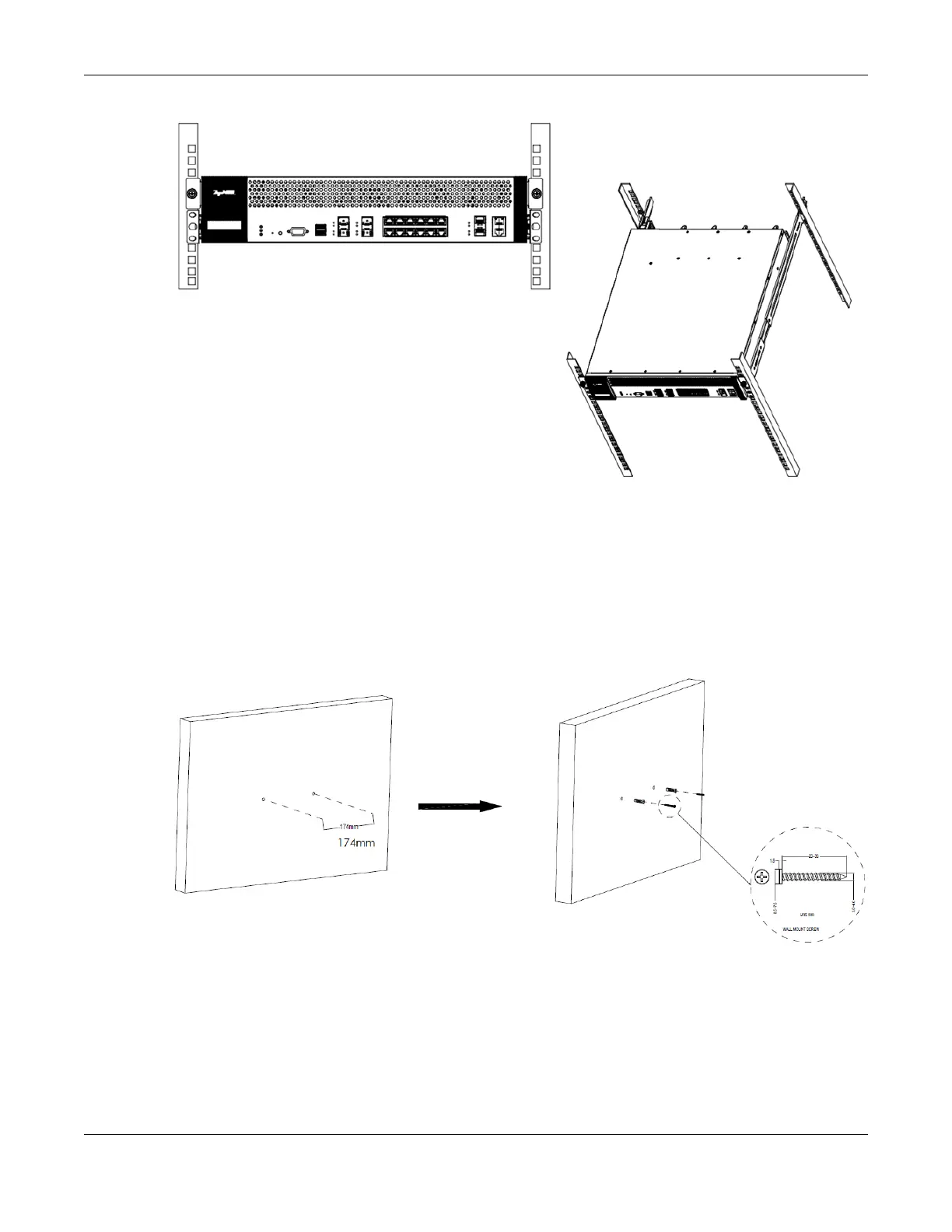

Figure 58 Wall Mounting
2 Screw two screws with 6 mm ~ 8 mm (0.24" ~ 0.31") wide heads into the screw anchors. Do not screw the
screws all the way in to the wall; leave a small gap of between 1 ~ 1.5 mm (0.04” ~ 0.06”) between the
head of the screw and the wall.
The gap must be big enough for the screw heads to slide into the screw slots and the connection cables
to run down the back of the Zyxel Device.
To Next Page
