Displaying the Link State Database 97
An asterisk (*) after the router ID in a display indicates that the LSA
originated locally.
Displaying a
Database Summary
This display summarizes all LSAs in the link state database. To display the
database summary:
1 Enter the following at the top-level menu:
ip ospf linkStateData databaseSummary
The following prompt is displayed:
Enter Area ID [0.0.0.0]:
2 Enter the area ID.
Enter Area mask [0.0.0.0]:
3 Enter the area subnet mask.

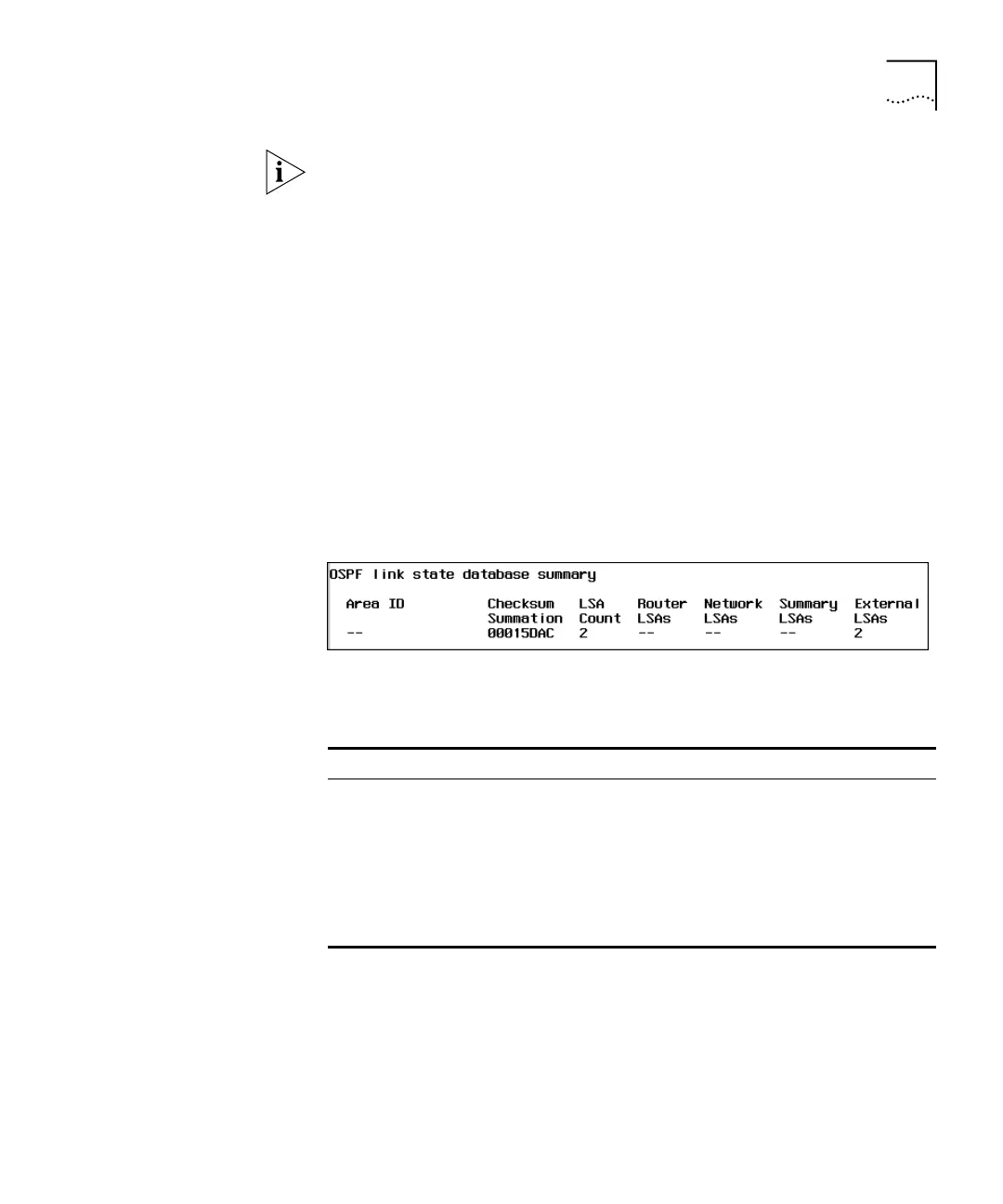

The following example shows a link state database summary display:
Table 22 describes the link state database summary display fields:
Displaying
Router LSAs
This display shows the router LSAs in the link state database. Router LSAs
describe the collected states of the router’s interfaces.
To display the router LSAs:
1 Enter the following at the top-level menu:
ip ospf linkStateData router
Table 22 Field Attributes for Link State Database Summary Display
Field Description
Checksum Summation Total of all LSA checksums
LSA Count Number of LSAs
Router LSAs Number of router link LSAs
Network LSAs Number of network link LSAs
Summary LSAs Number of summary link LSAs
External LSAs Number of external link LSAs
