Pannoramic MIDI 1.17 User’s Guide 5 Troubleshooting and Maintenance

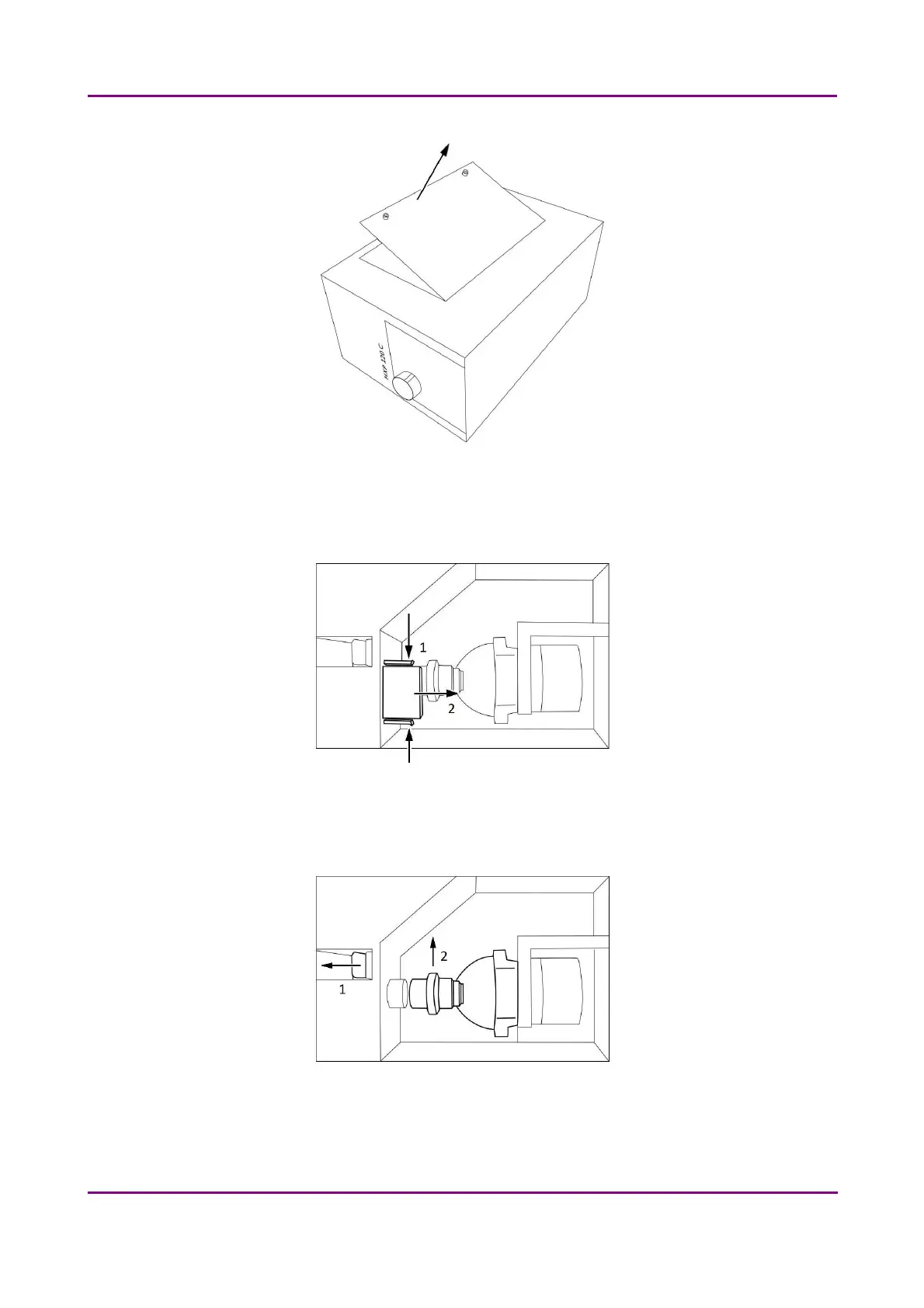

Figure 77 – Removing the lateral cover of the HXP 120
3. Press plug securing latches inward (1) then disconnect plug of the lamp module (2) (see
Figure 78).
Figure 78 – Disconnect plug
4. Loosen pressure bolt with the lever (1) and by keeping the lever pressed, remove lamp
module (2) (see Figure 79).
Figure 79 – Removing the lamp module
