Pannoramic MIDI 1.18 User’s Guide 1 Product Description
1.2 System Overview
The standard scope of delivery of the product includes the following hardware and software
components.
1.2.1 Pannoramic MIDI system
The following figure shows the main parts of the Pannoramic MIDI system.

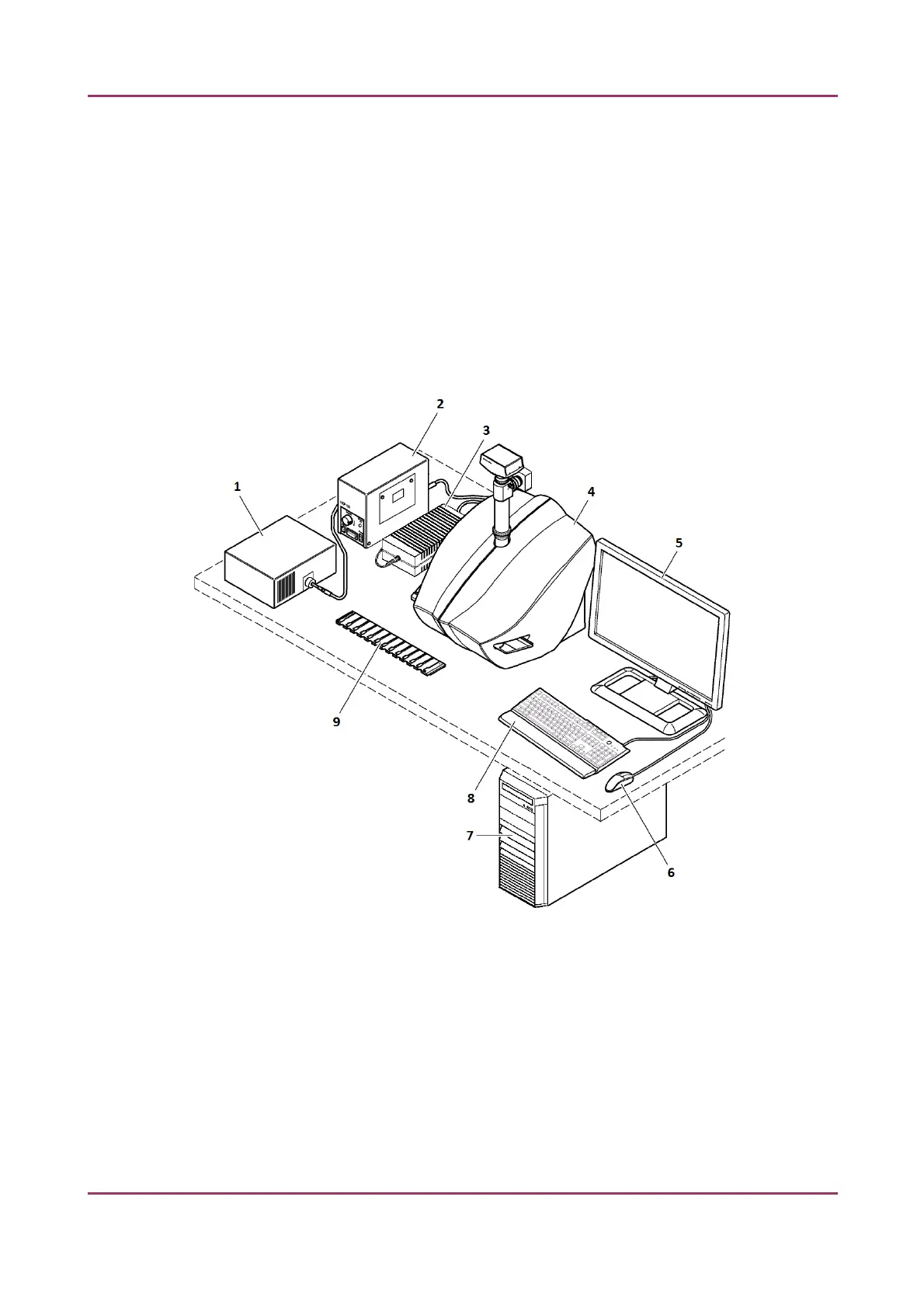

Figure 3 – Pannoramic MIDI system overview
1. Lumencor SPECTRA 6 Light Engine illumination unit (option)
2. HXP 120 fiber-coupled illumination unit (option)
3. 24 V power supply
4. Pannoramic MIDI base unit
5. Monitor
6. Mouse
7. Control computer
April 3, 2014 - Rev 1 3DHISTECH Ltd. 17(127)
