Pannoramic MIDI 1.17 User’s Guide 5 Troubleshooting and Maintenance
Warning!
Crush hazard! Before you remove a jammed slide, cancel the running
digitization process, terminate the software session and turn the power
off.
Any manipulation performed on a mechanical component must be followed by a complete device
initialization routine (software restart).

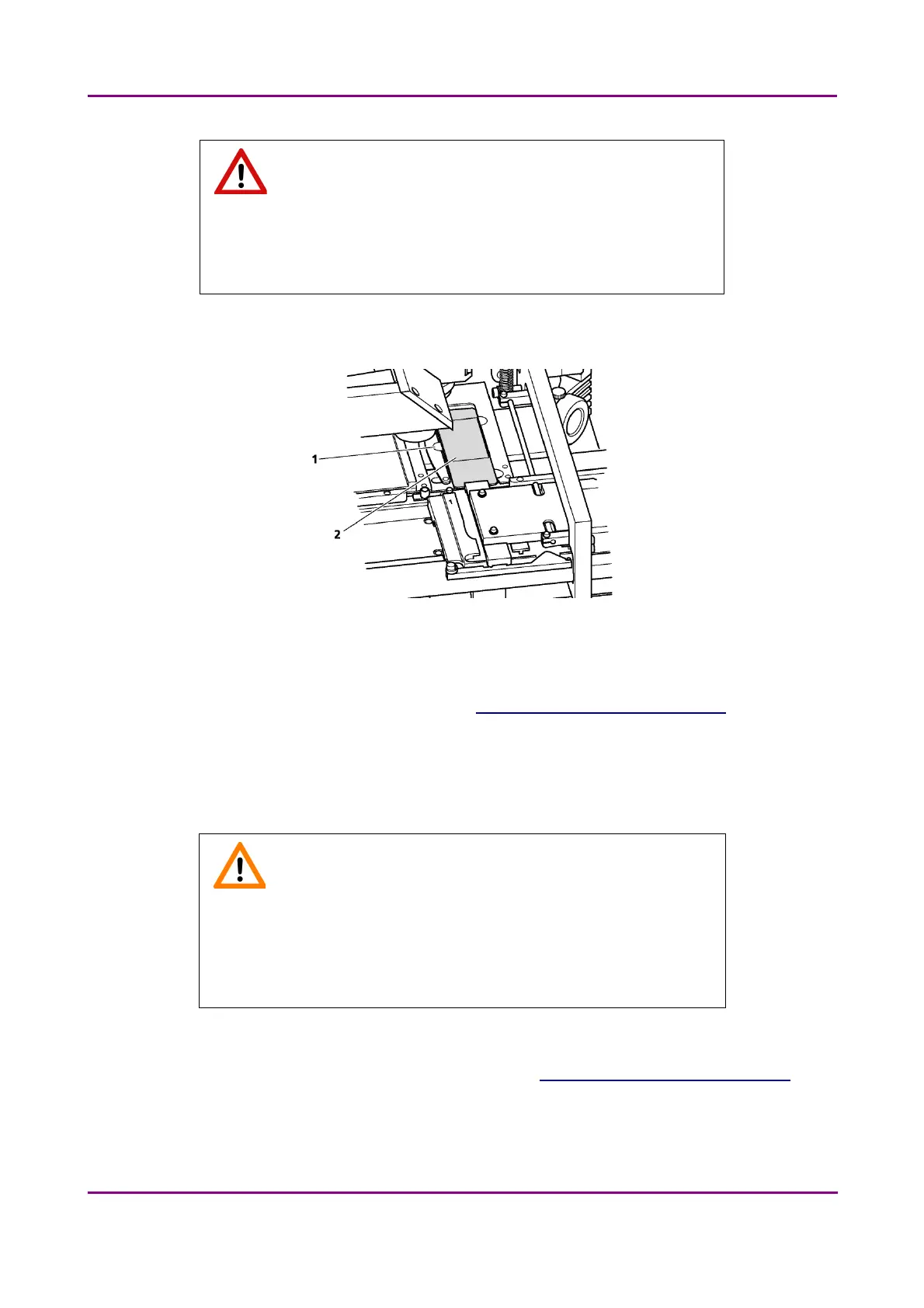

Figure 81 – Removing a slide
1. Push protective covers apart (see section 5.3.1 Opening the protective covers).
2. Move clamp (1) to the left, so the slide could be easily removed.
3. Remove the slide (2) carefully.
Caution!
If the slide is broken, make sure to remove all pieces completely from the
device. The edge of the broken area of the slide is sharp and it can lead to
injury and contagion! Broken slide can be removed only by a well-trained
person!
4. Push protective covers together again (see section 5.3.1 Opening the protective covers).
5. Launch control software.
April 3, 2014 - Rev. 1 3DHISTECH Ltd.
