ABB 2600T Series - B2 Pipe and wall mounting bracket details; Figure 14: Pipe and wall mounting bracket kit (B2)

2600T Series Pressure transmitters | OI/266/PB-EN Rev. E 17
5 Mounting
65 (2.54)
83 (3.28)
136 (5.35)
116 (4.57)
29 (1.14)
18 (0.71)
55 (2.17)
183 (7.19)
87 (3.42)
18 (0.71)
4.4 (0.17)

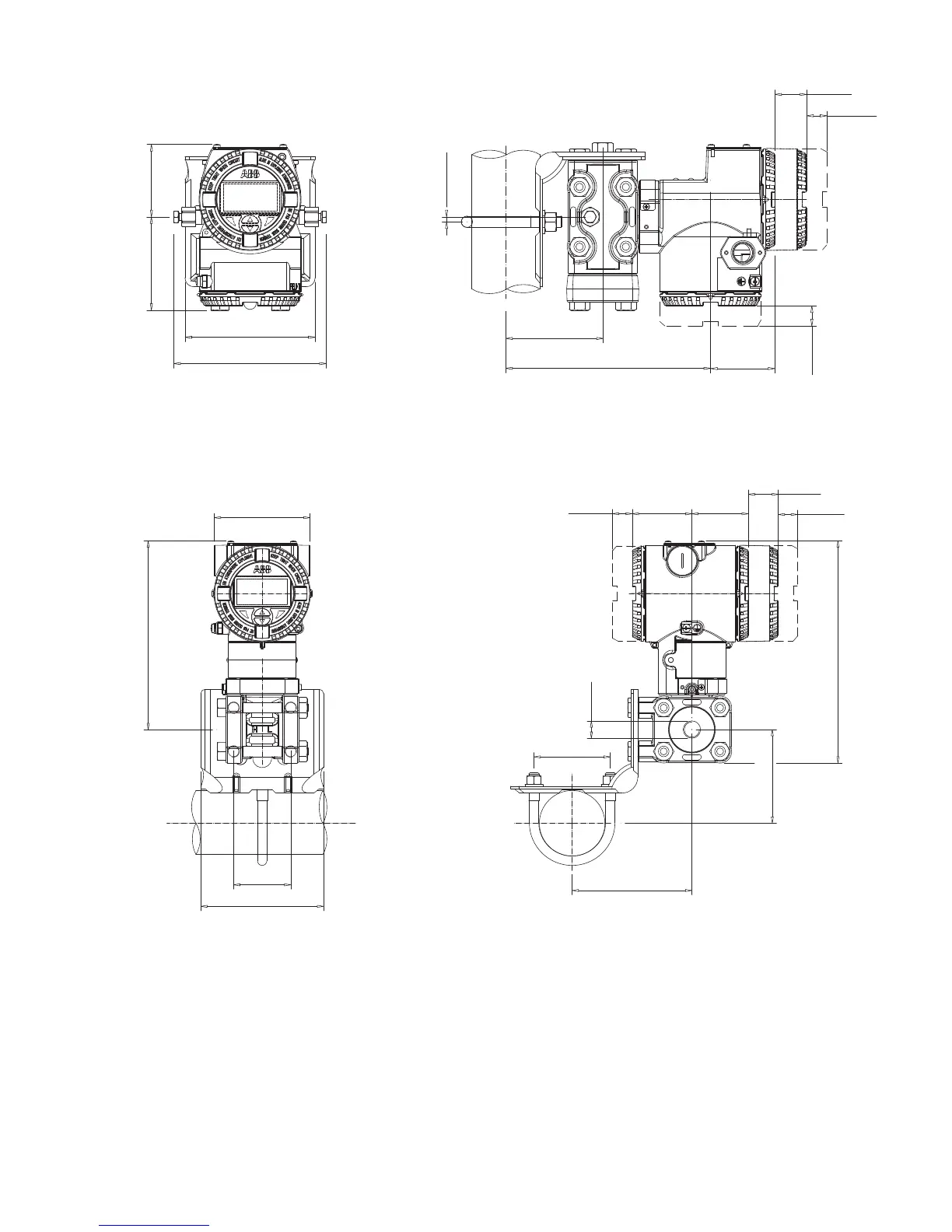

Figure 11: Differential Pressure Style transmitter with barrel housing and Kynar inserts installed on a horizontal pipe with optional
bracket (B2)
91 (3.58)
179 (7.02)
54 (2.13)
116 (4.57)
29 (1.14)
18 (0.71)
113 (4.45)
72 (2.83)
210 (8.28)
18 (0.71)
58 (2.28)
55 (2.17)
89 (3.48)
1/4 or 1/2 NPT
Figure 12: Differential Pressure Style transmitter with barrel housing and Kynar inserts installed on a vertical pipe with optional bracket (B2)
