1.7 Name plate
Pos: 5.18 /Sicher heit/Druck/Druck messumformer/Druck messumformer 265Dx, 265Vx /Typenschilder @ 5\mod_1163757198640_3101.doc @ 48516
2
14
15
16
D-32425 Minden
0045
/M 100%/+ 0%/-
SIL
M00154
1
2
3
4
5
6
7
8
10
11
12
13
17
18
19
20
21
22
23
24
Type
Opt.
S/N 265DS6600018572
PED: 1G PS: 410 bar
265DS LTKA6B1
E1M1TACLH1
HART
SW xx
Bj./Yr. 20xx
IP 67
10,5 ... 30 V DC
4 ... 20 mA
Mat. 1.4404(8) / Hast.C / Buna-N PN 410
-2.5 ...+2.5 bar min.Span 0.025 bar
P: 0 ... 410 bar abs.
eing./adj.
+0.00 ... +2500.000 mbar
+0.00 ... +100.00 %
MADE IN GERMANY
II 1/2GD T 50°C EEx ia IIC T6
II 1/2GD T 95°C EEx ia IIC T4
ZELM 01 ATEX 0064
Electr. Data see EC-Type-Examination Certificate
TAG: -/-
0032
9

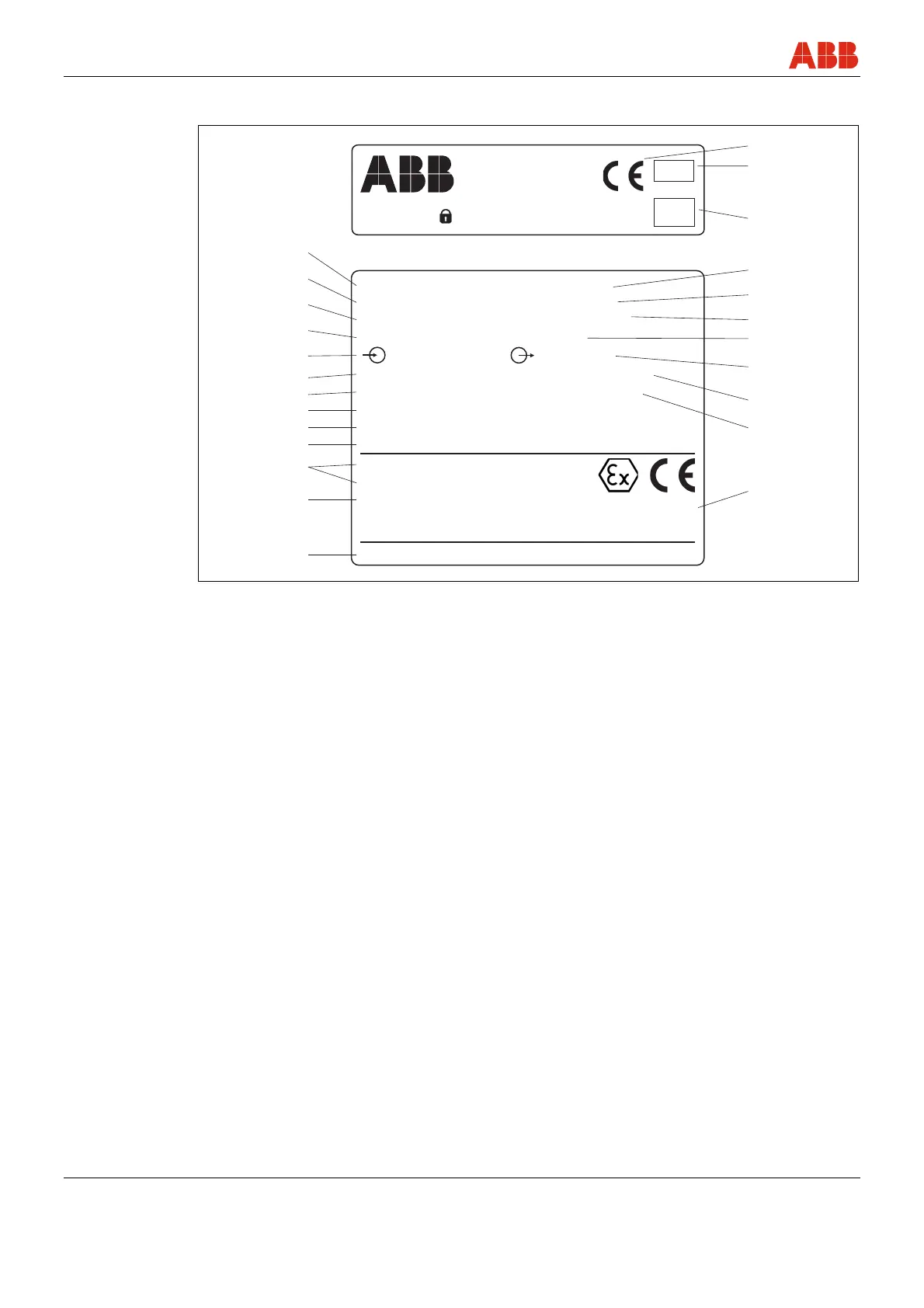

Fig. 1: Example: Name plate for 265Dx transmitter
1 Device type/order code (for information
on the individual letters/numbers, refer to
the information on the order confirmation
or device data sheet)
2 Options – additional information on the
order code
3 Device serial number (factory no.)
4 Identification code with reference to the
Pressure Equipment Directive (SEP or
1G). See the section "Compliance with
the Pressure Equipment Directive
(97/23/EC)".
5 Auxiliary power
6 Parts that come into contact with medium
7 Lower to upper range limit (LRL to URL)
8 Static pressure sensor range
9 Set span
10 HART output (process variable)
11 Ex design designation (optional)
12 No. of EC-type-examination certificate
13 Tag (max. 32 characters)
14 EC conformity mark
15 Identification number of the notified body
with reference to the Pressure Equipment
Directive. See the section "Compliance
with the Pressure Equipment Directive
(97/23/EC)".
16 "SIL2" identification code (optional)
17 Device communication type
18 Software version
19 Year of manufacture
20 Protection type
21 Output signal
22 Permissible pressure (static)
23 Minimum span
24 Identification number of the notified body
with reference to ATEX certification
(optional)
