Configuration
60 265Dx, 265VS IM/265D/V-EN-02
Pos: 19.27 /Übers chriften/1.1/1-s paltig/J - L/Konfigur ation mit PC / Laptop oder Handheld- Terminal @ 1\mod_114793 5987375_3101.doc @ 12658
8.7 Configuration with the PC/laptop or handheld terminal
Pos: 19.28 /Konfi guration, Parametr ierung/Druck/Dr uckmessumformer/Druck messumformer 265Dx, 265Vx /Konfiguration mi t PC / Laptop oder Handheld-Terminal @ 17\mod_1201100306375_3 101.doc @ 153918
A graphical user interface (DTM) is required for configuration of the transmitter via PC or laptop.
For operating instructions, please refer to the software description.
Additional information Data sheet for the SMART VISION/DTM
Communication protocol
HART
®
PROFIBUS PA
®
FOUNDATION Fieldbus
Hardware (for HART
®
) FSK modem for PC or laptop
HART handheld terminal (HHT) e.g., 691HT, HHT275/375, DHH800-MFC
You can use a handheld terminal to read out or configure/calibrate the transmitter. If a
communication resistor is installed in the connected supply unit, you can clamp the handheld
terminal directly along the 4 ... 20 mA line.
If no communication resistor is present (min. 250 Ω), you will need to install one in the line. The
handheld terminal is connected between the resistor and transmitter, not between the resistor
and supply unit.
M00028
p
U
B
U
S
+
++
––
#
Automation Products
ABB
I + FSK
A
AB

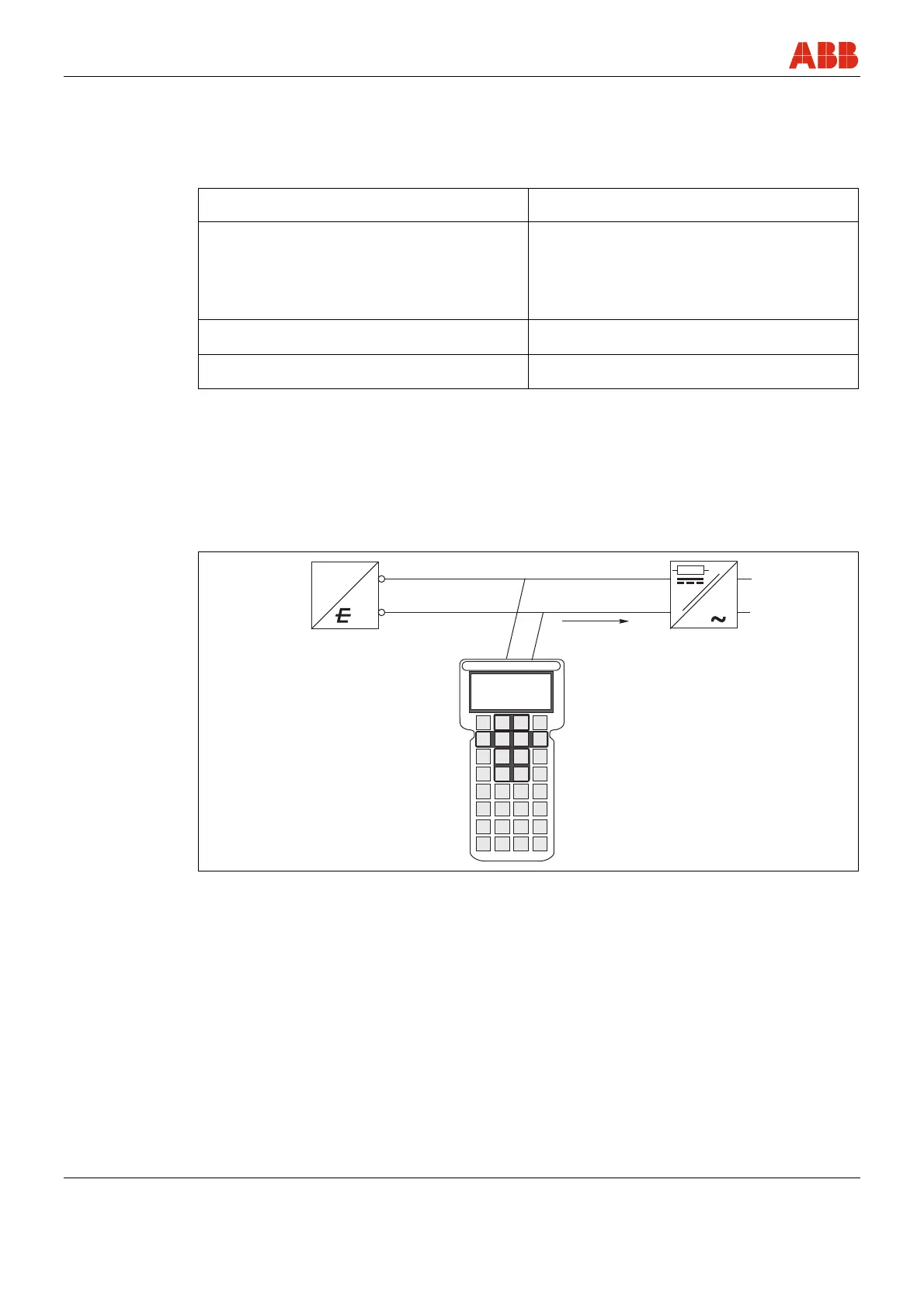

Fig. 21: Communication setup with handheld terminal
A Transmitter B Supply unit (communication resistor
provided in supply unit)
