8.5 Layout and contents of the LCD display
Pos: 19.15 /Konfi guration, Parametr ierung/Druck/Dr uckmessumformer/All gemein/Aufbau und Inhalt der LCD-Anzeige @ 2\mod_115009 6660359_3101.doc @ 29419
The display is a 2-line, 7-character, 19-segment alphanumeric display with an additional bar
display. As an option, the display can be equipped with backlighting.
8.5.1 Displaying a physical value
M00053
1
2
3
4

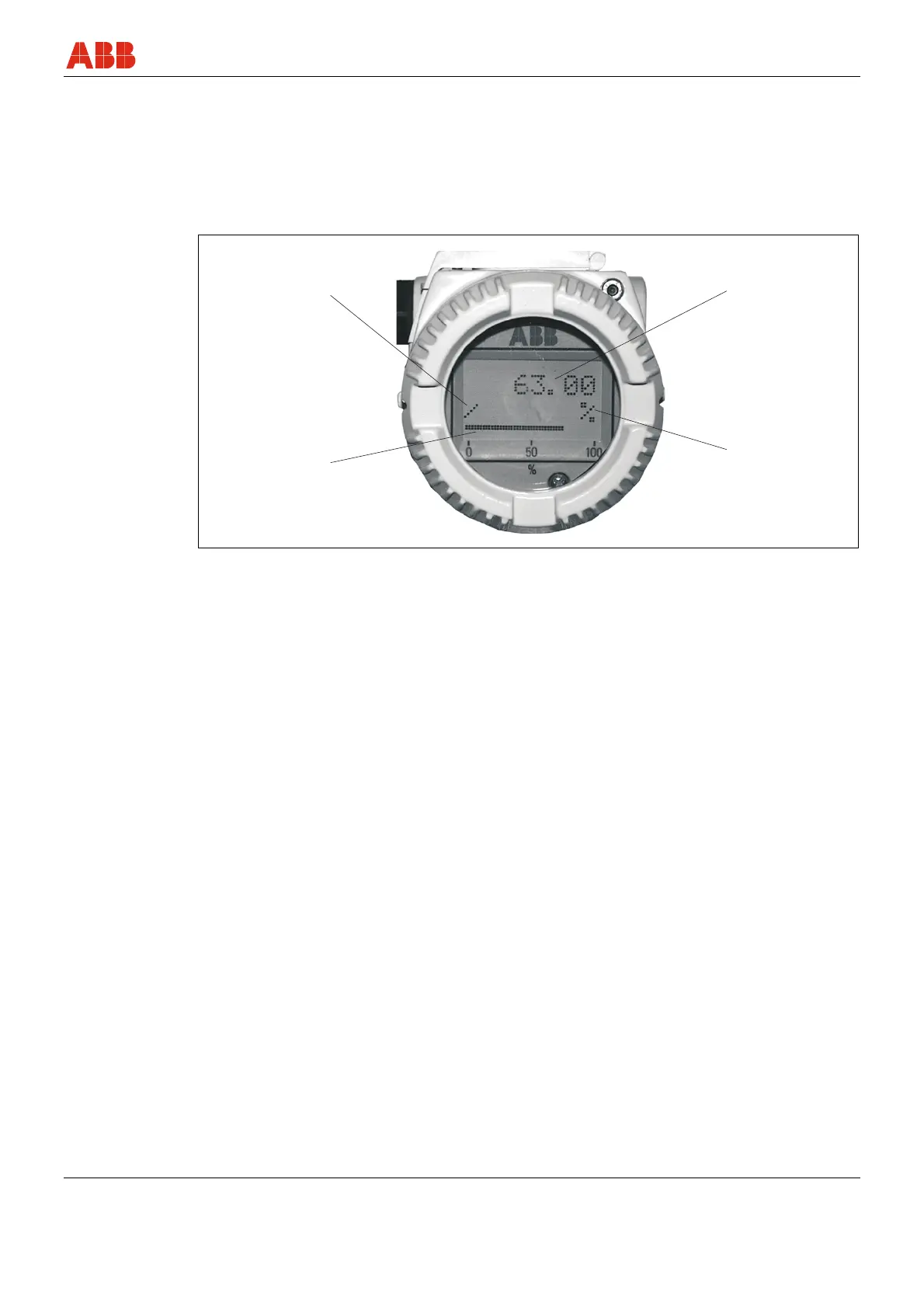

Fig. 20
1 Symbol for
• Transmission function (e.g., linear)
• Mode
• Status/code
2 Bar for displaying the process value in %
3 Current measured value (1st line)
4 Unit (2nd line)
First line
In the first line, the first column indicates the sign, and the next six digits display the measured
value amount.
Decimal point display
The position of the decimal point is determined by the unit selected and cannot be changed.
The decimal point is positioned so that the maximum value can be displayed with six digits.
Decimal points are not displayed at the sixth place. Therefore, a maximum of +/- 999999 can be
displayed. If this value is exceeded, "Overflow" is displayed.
