Electrical connection
30 265Dx, 265VS IM/265D/V-EN-02
Terminal assignment
Terminals Description
SIGNAL (+) and (-) Operating voltage
TEST (+) and (-) Test terminals for 4 ... 20 mA (HART); not
available with fieldbus transmitters
M00147
1
2
3
4
~
~
+
-

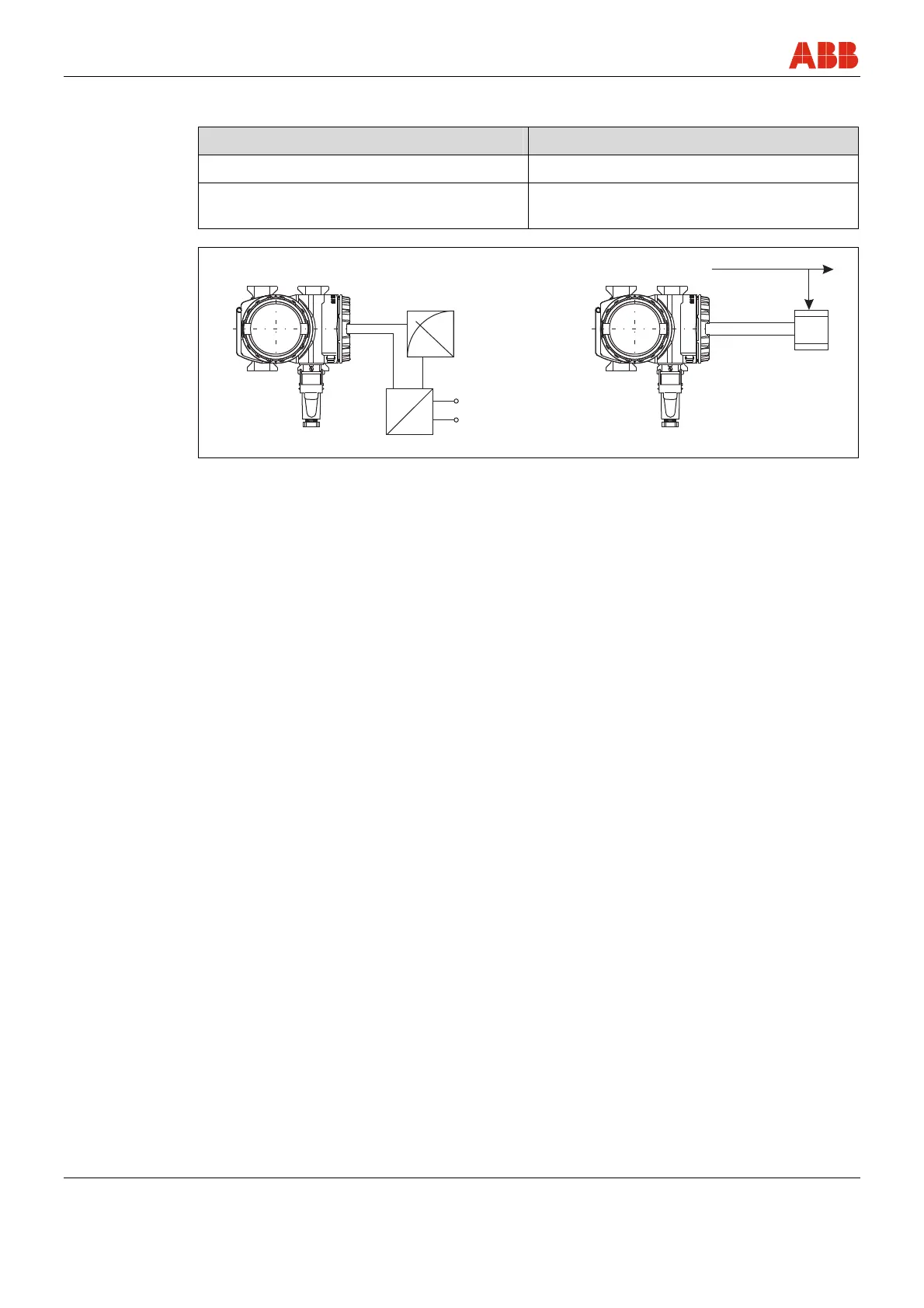

Fig. 8: Connection diagram, left: 4 … 20 mA current output with HART communication protocol
and power supply; right: PROFIBUS PA or FOUNDATION Fieldbus
1 4 ... 20 mA
2 Non-EEx area: 10.5 (14) ... 45 V
or EEx area: 10.5 (14) ... 30 V
3 PROFIBUS PA or
FOUNDATION Fieldbus
4 PROFIBUS PA:
Connection to PLC or PC via segment
coupler / linking device
FOUNDATION Fieldbus:
Connection to PLC or PC via FF supply
unit
