236 Actual signals and parameters
4018
ACT1 MINIMUM
-1000 … 1000% 1% 0%
• Sets the minimum value for ACT1.
• Scales the source signal used as the actual value ACT1 (defined by parameter 4016
ACT1 INPUT ACT1 INPUT). For parameter 4016 values 6 (COMM ACT 1) and 7
(COMM ACT 2) scaling is not done.

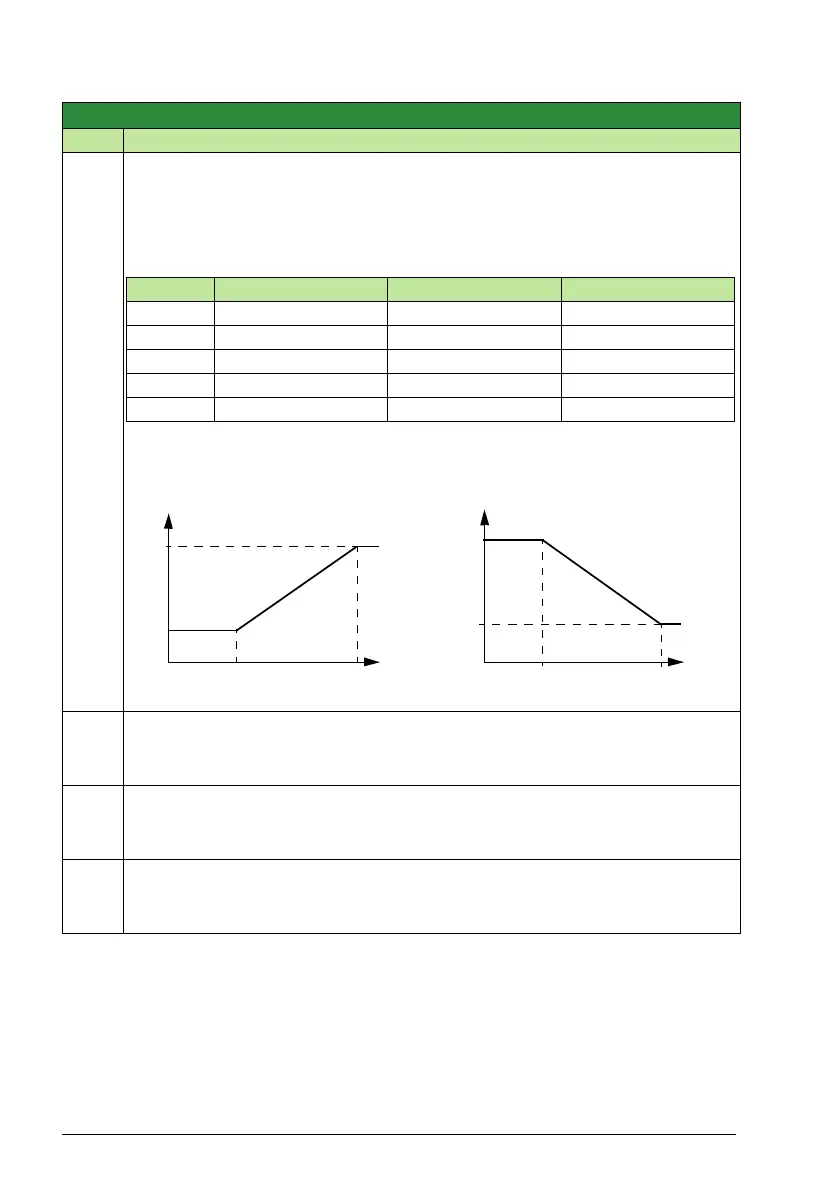

• See the figure below: A= Normal; B = Inversion (ACT1 MINIMUM > ACT1
MAXIMUM)
4019
ACT1 MAXIMUM
-1000 … 1000% 1% 100%
Sets the maximum value for ACT1.
• See 4018 ACT1 MINIMUM.
4020
ACT2 MINIMUM
-1000 … 1000% 1% 0%
Sets the minimum value for ACT2.
• See 4018 ACT1 MINIMUM.
4021
ACT2 MAXIMUM
-1000 … 1000% 1% 100%
Sets the maximum value for ACT2.
• See 4018 ACT1 MINIMUM.
Group 40: Process PID set 1
Code Description Range Resolution Default S
Par. 4016 Source Source min. Source max.
1 Analog input 1 1301 MINIMUM AI1 1302 MAXIMUM AI1
2 Analog input 2 1304 MINIMUM AI2 1305 MAXIMUM AI2
3 Current 0 2 · nominal current
4 Torque -2 · nominal torque 2 · nominal torque
5 Power -2 · nominal power 2 · nominal power
ACT1 (%)
A
B
ACT1 (%)
Source
signal
Source min. Source max.
Source min. Source max.
Source
signal
4019
4018
4019
4018
1301 1302 13021301
